Retainer Lock

WARNING: This page is about a different variant/trim than selected.
  1. Compress the valve spring using special tool. (09222 - 28000, 09222 - 28100)
  2. Remove the retainer lock.

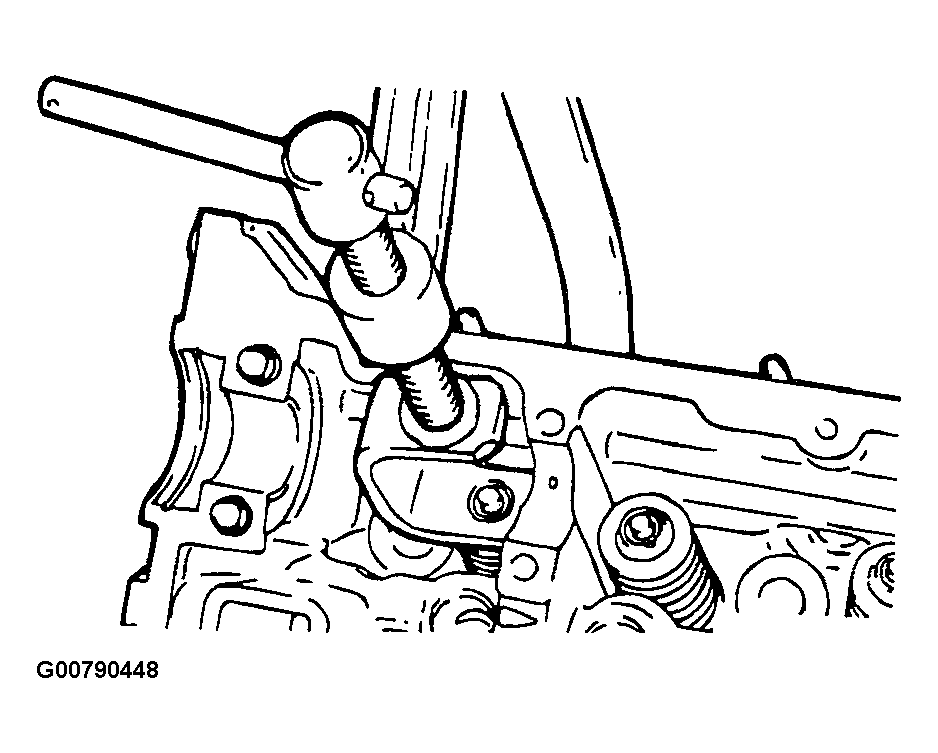

    Fig 1: Removing Retainer Lock
    G00790448Courtesy of HYUNDAI MOTOR CO.
  3. Remove the valve spring, valve spring retainer valve spring sheet and valve.
