Wire Routing

WARNING: This page is about a different car, the 2004 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

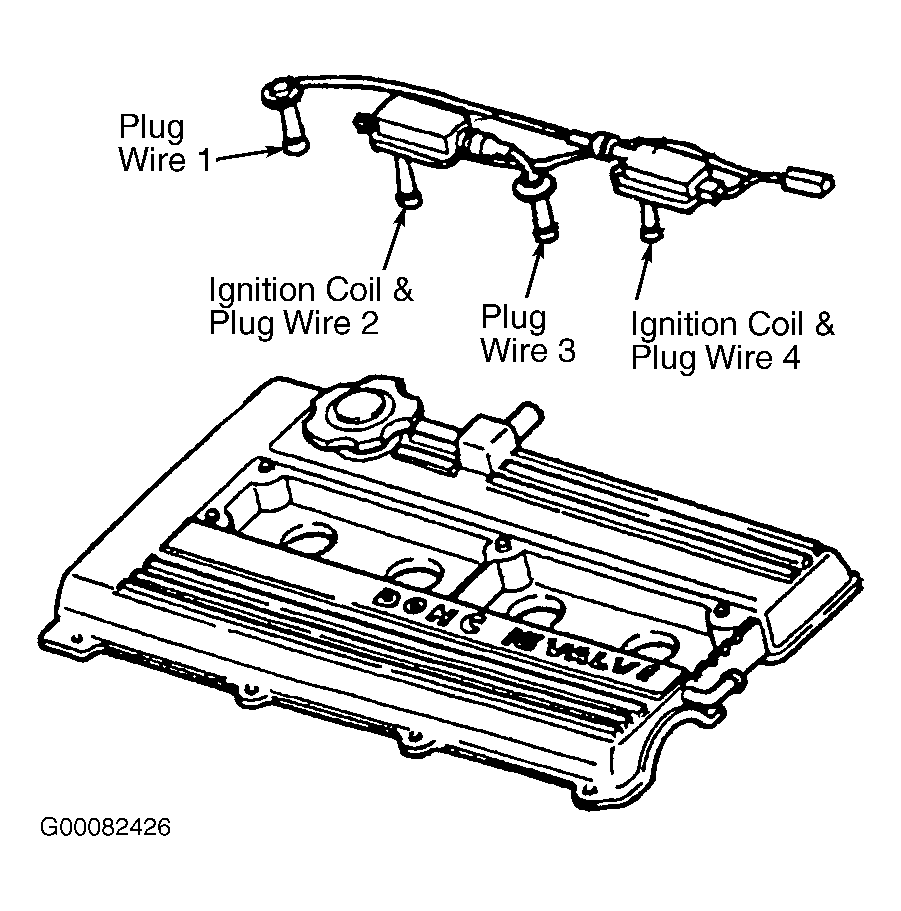

Fig 1: Identifying & Locating Plug Wires & Ignition Coils (2.4L)

Courtesy of HYUNDAI MOTOR CO.

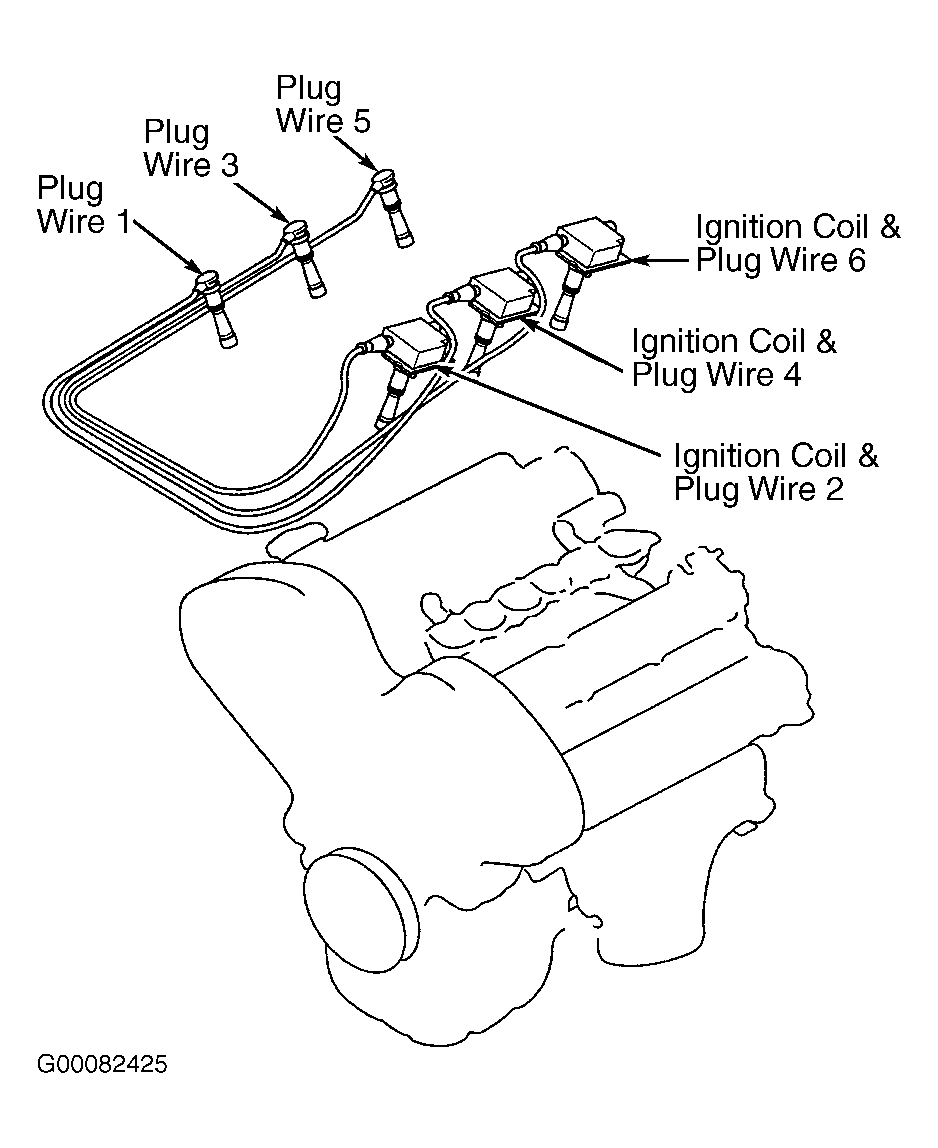

Fig 2: Identifying & Locating Plug Wires & Ignition Coils (2.7L)

Courtesy of HYUNDAI MOTOR CO.

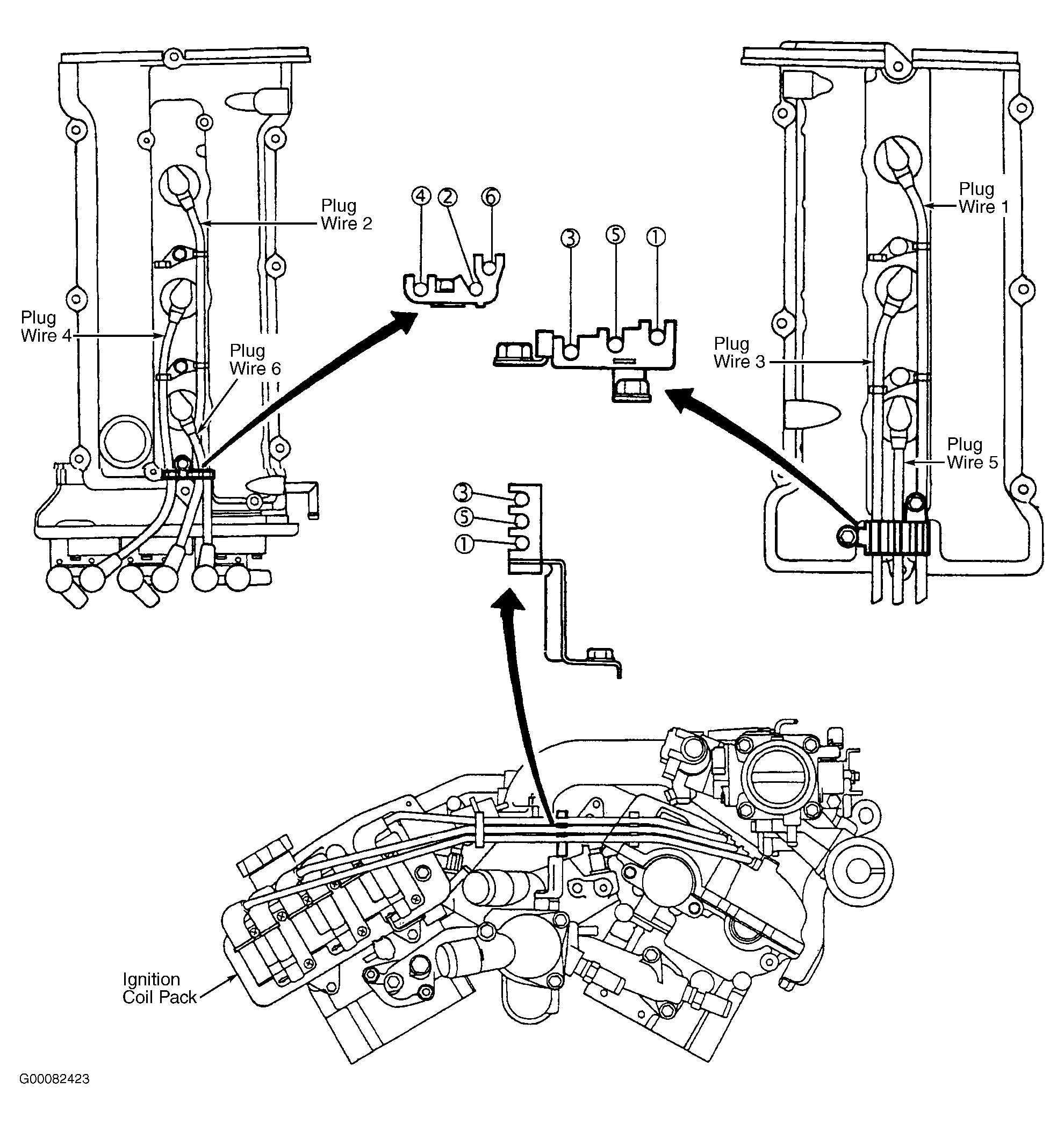

Fig 3: Identifying & Locating Plug wires & Ignition Coils (3.5L)

Courtesy of HYUNDAI MOTOR CO.
