Firing Order & Cylinder Identification: Illustrations

WARNING: This page is about a different car, the 2004 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Firing Order (2.4L)
G00162113Courtesy of HYUNDAI MOTOR CO.

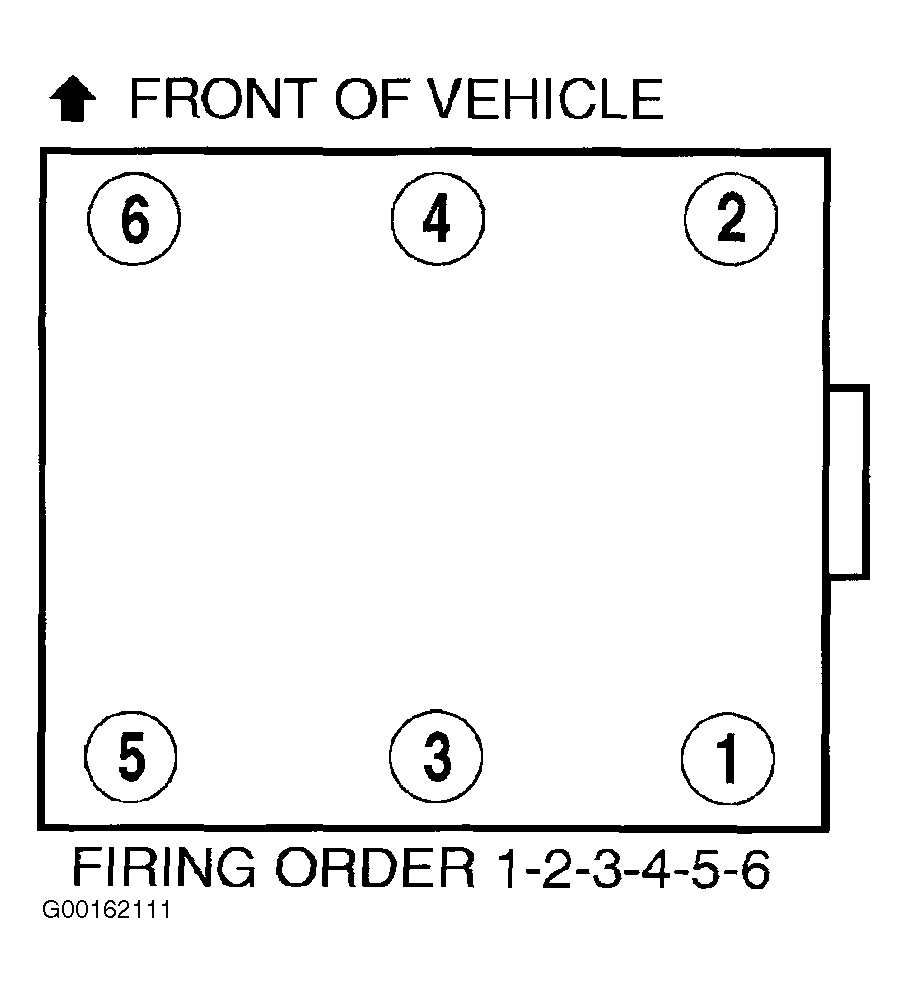

Fig 2: Firing Order (2.7L & 3.5L)
G00162111Courtesy of HYUNDAI MOTOR CO.
