Routing Illustrations

WARNING: This page is about a different car, the 2004 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

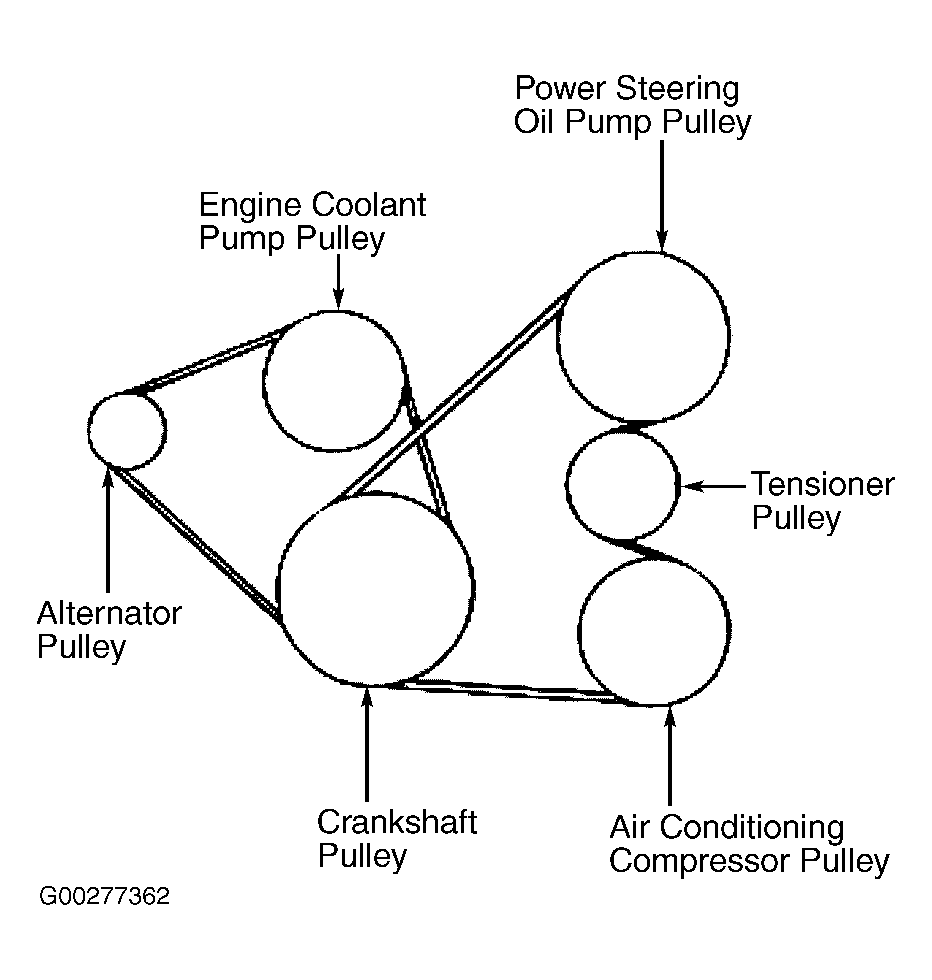

Fig 1: Identifying Drive Belt Routing (2.4L)
G00277362Courtesy of HYUNDAI MOTOR CO.

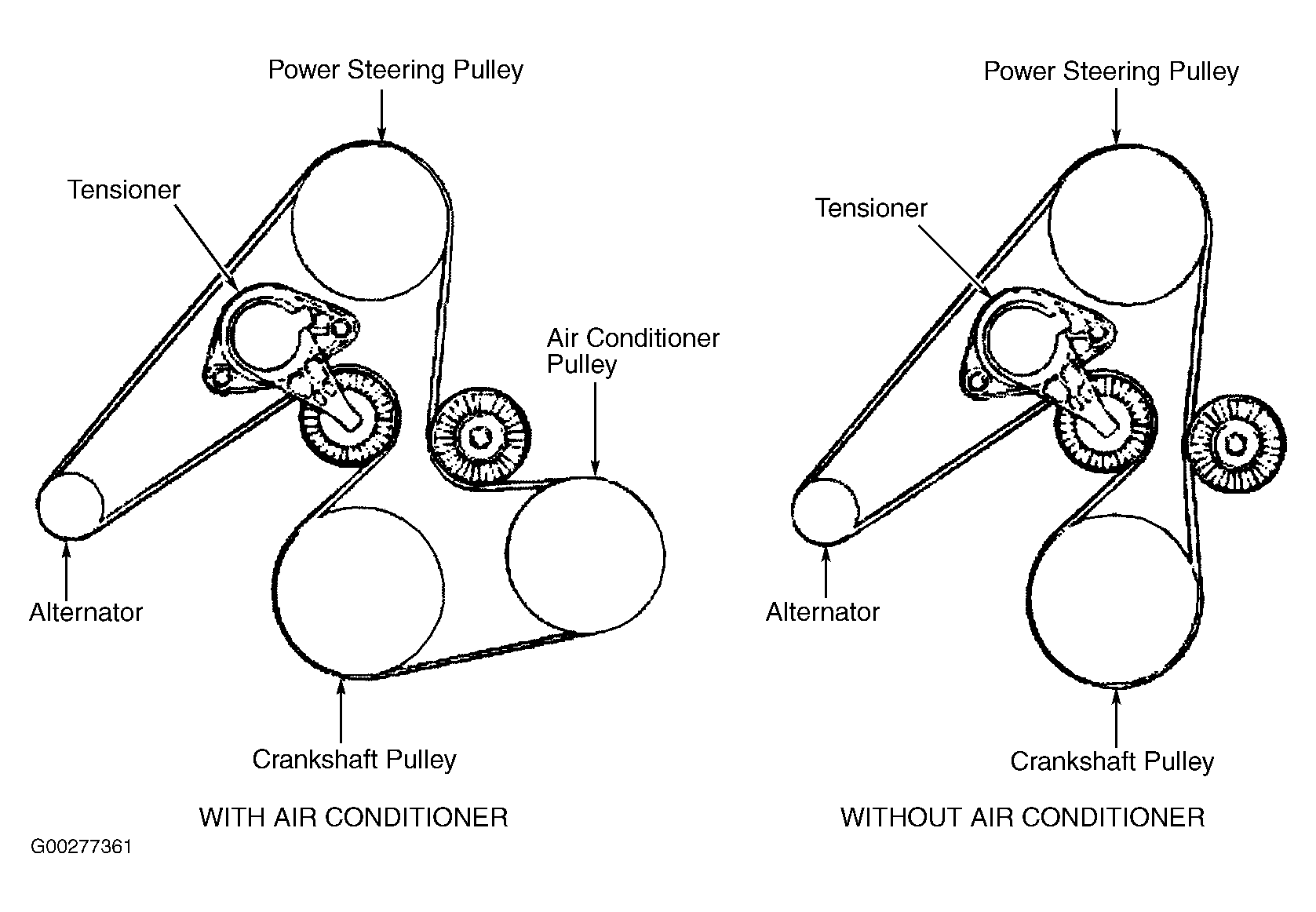

Fig 2: Identifying Drive Belt Routing (2.7L)
G00277361Courtesy of HYUNDAI MOTOR CO.

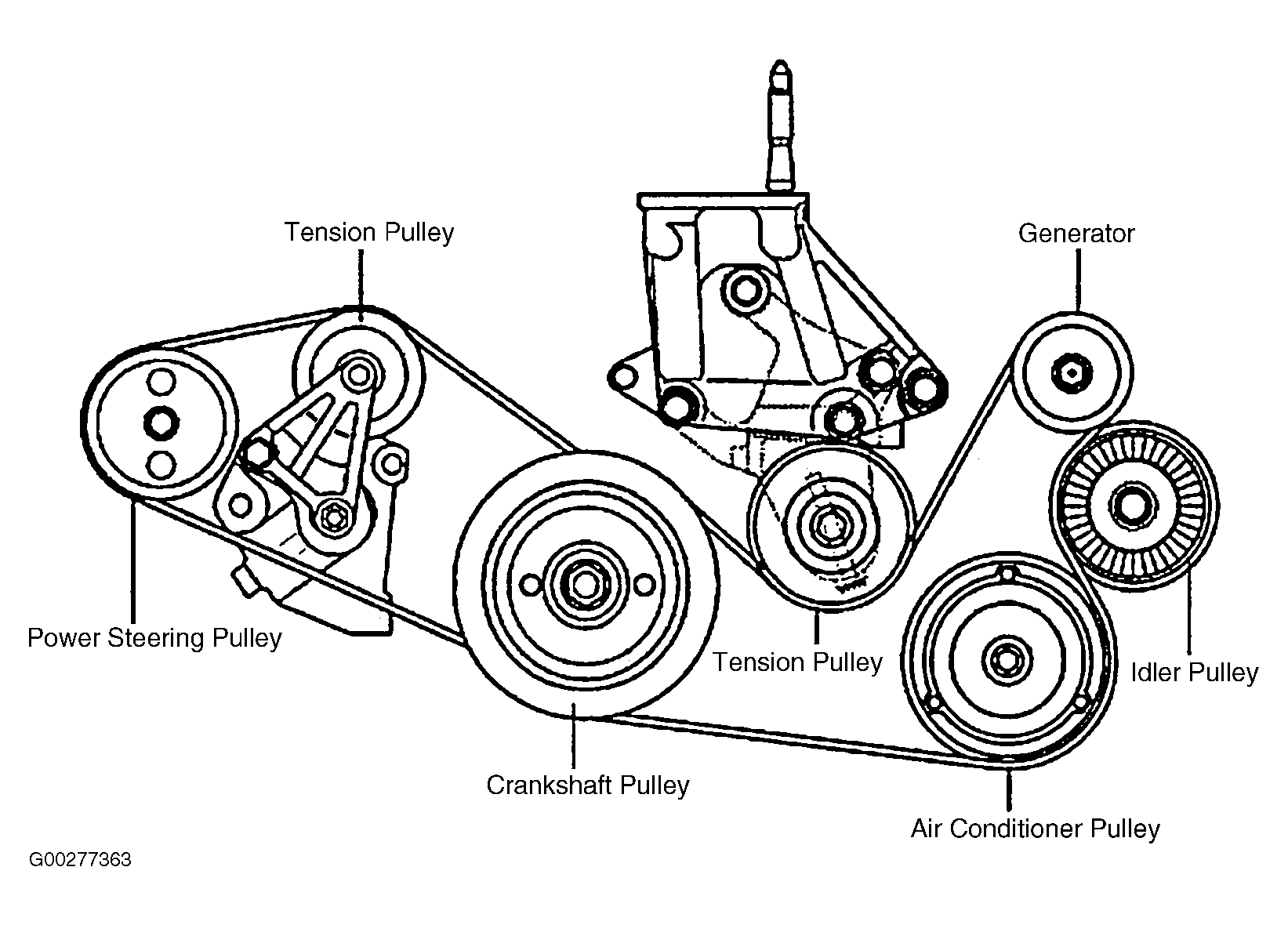

Fig 3: Identifying Drive Belt Routing (3.5L)
G00277363Courtesy of HYUNDAI MOTOR CO.
