Master Cylinder: Reassembly

To reassemble, reverse disassembly procedure. Before reassembly, apply brake fluid or brake assembly fluid to all parts.

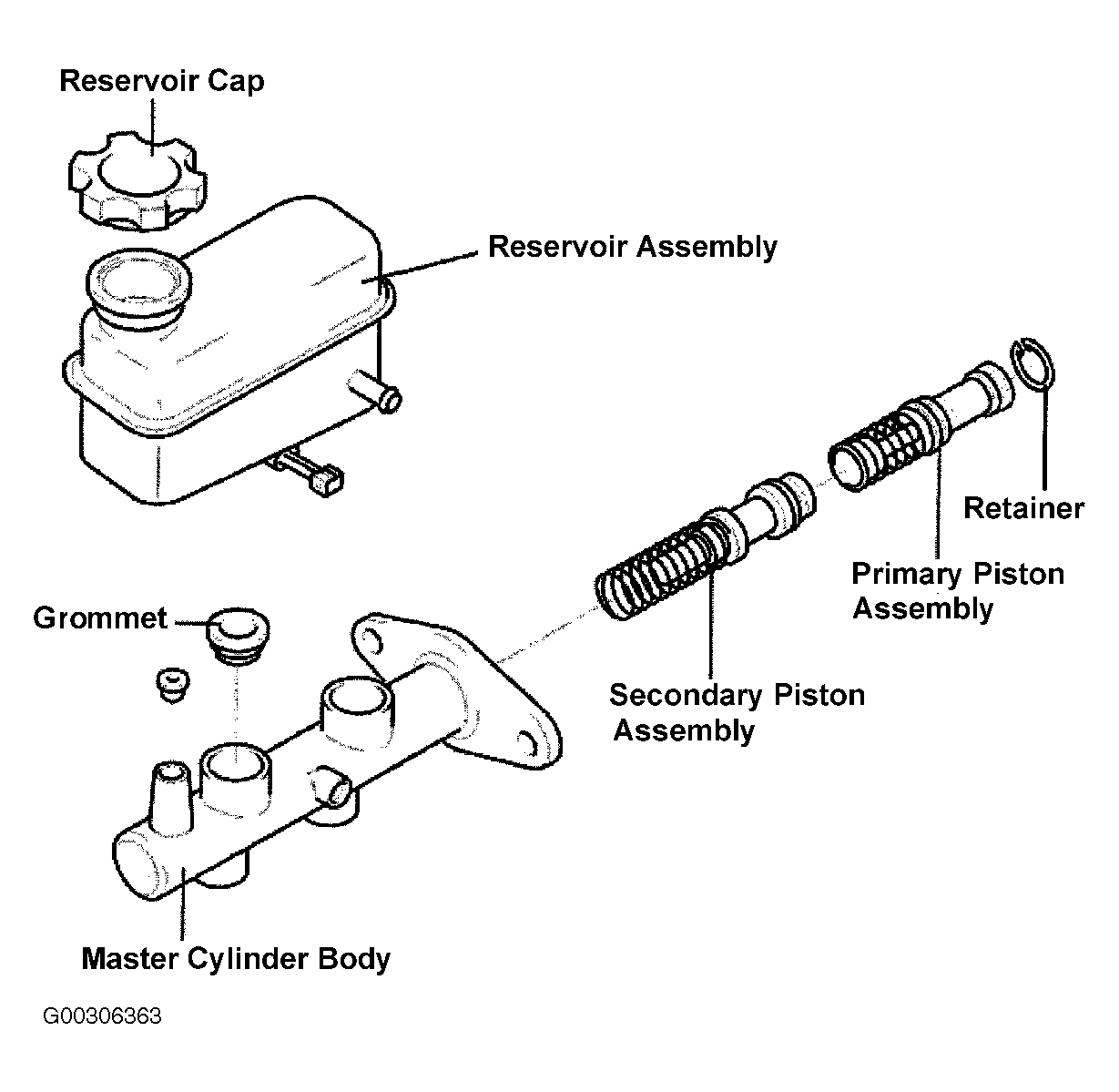

Fig 1: Exploded View Of Master Cylinder (2003)

Courtesy of HYUNDAI MOTOR CO.

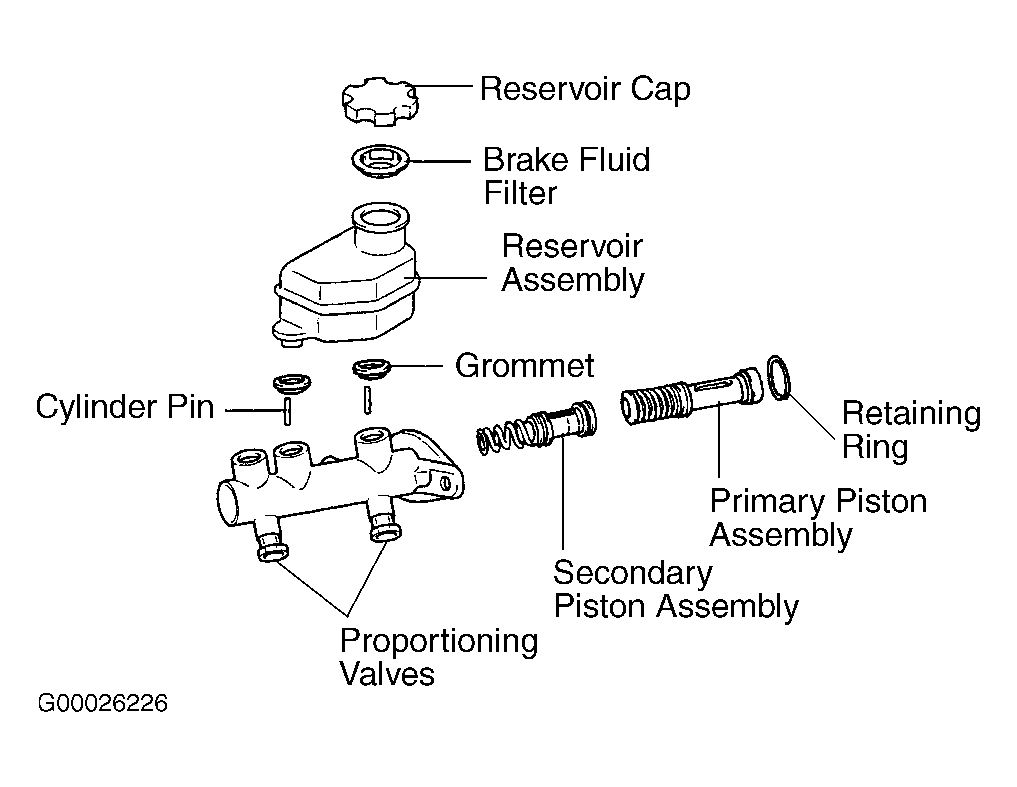

Fig 2: Exploded View Of Master Cylinder (2004)

Courtesy of HYUNDAI MOTOR CO.
