Master Cylinder: Installation

  1. Install the master cylinder to the brake booster. See Fig 3 .

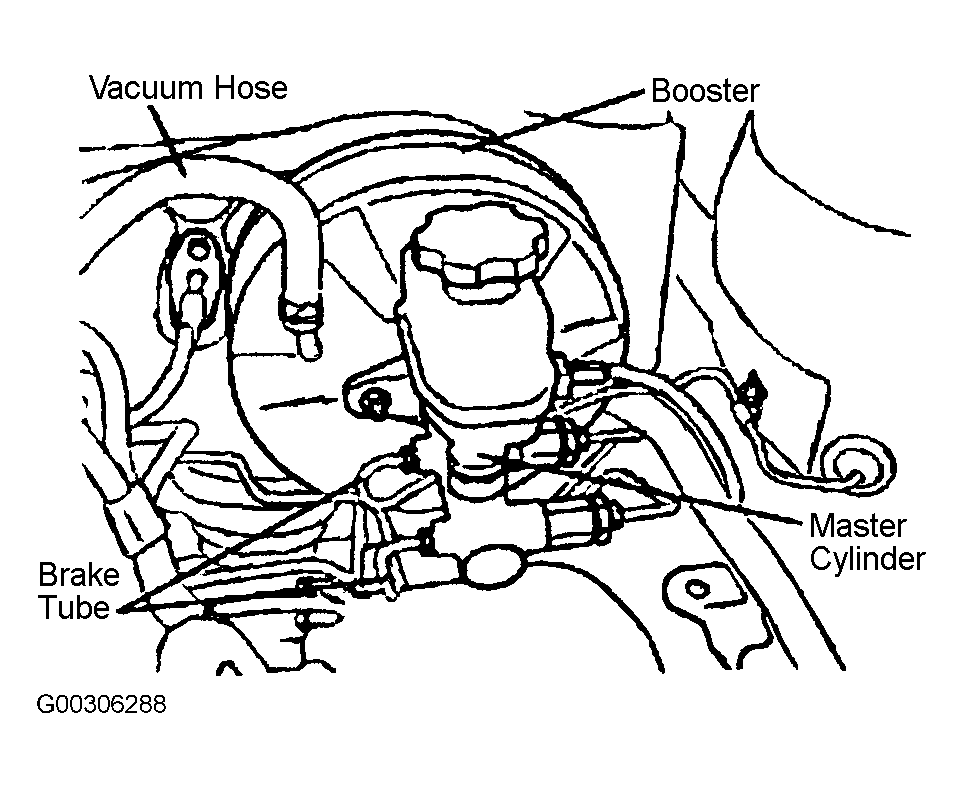

  2. Connect the brake tubes to the master cylinder. See Figure .
    CAUTION: Check the brake tubes for bends and twists.
  3. Install the brake fluid level switch connector. See Fig 2 .
  4. Install the air cleaner and the air duct. See Fig 1 .
  5. After filling the brake reservoir with brake fluid, bleed the system. See BLEEDING BRAKE SYSTEM  .

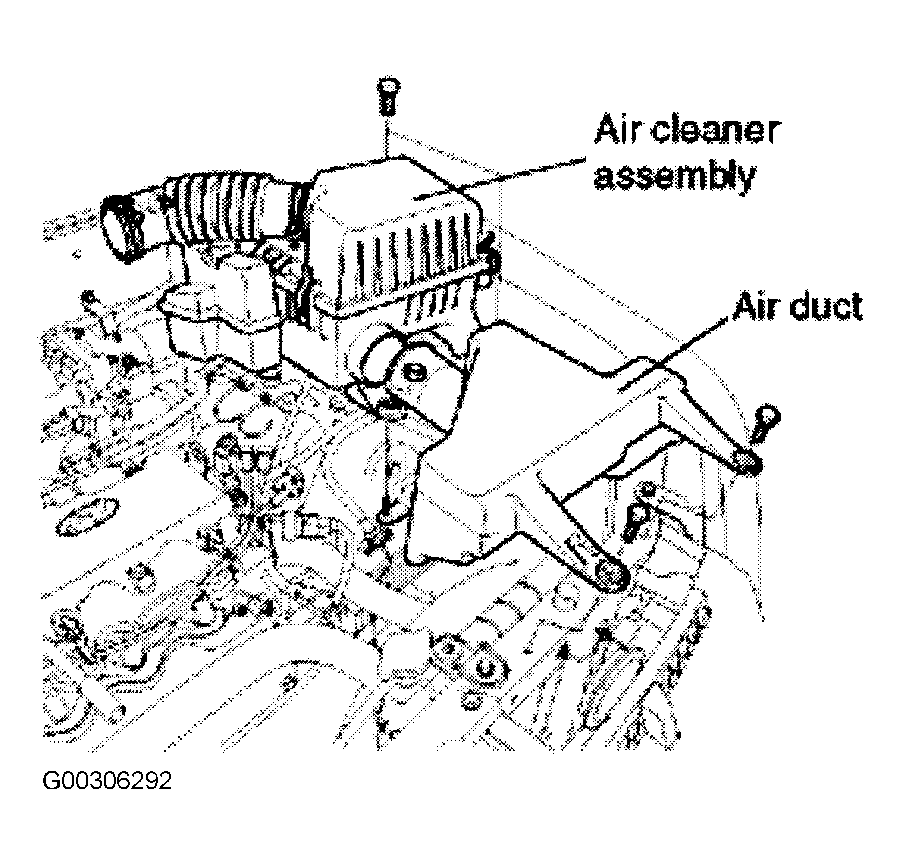

Fig 1: Removing & Installing Air Cleaner & Air Duct
G00306292Courtesy of HYUNDAI MOTOR CO.

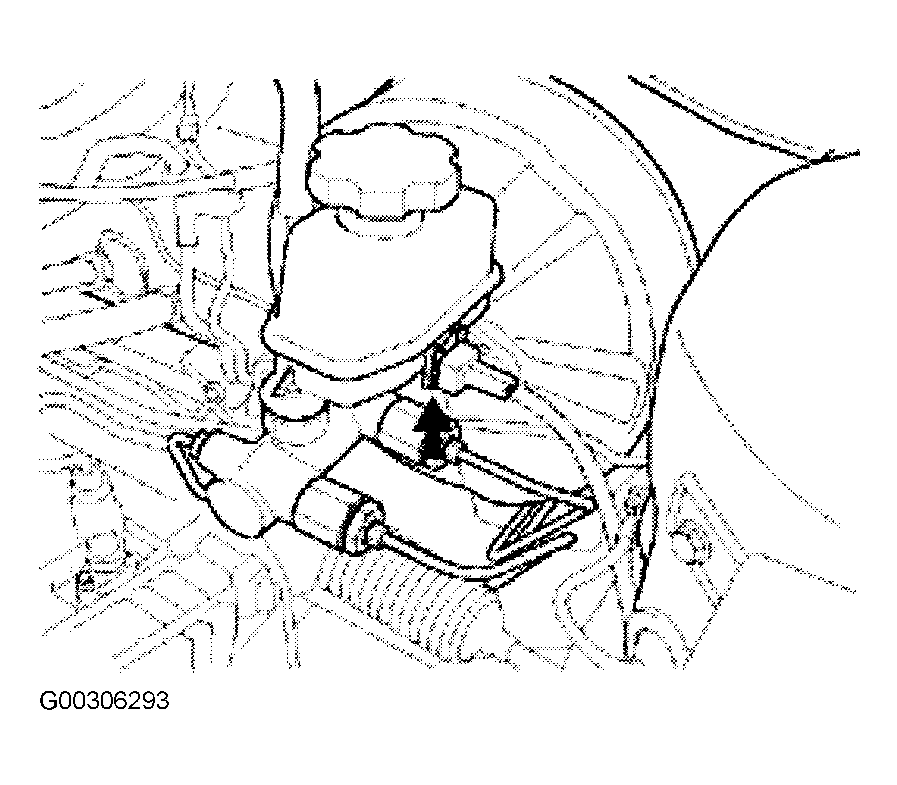

Fig 2: Locating Brake Fluid Level Switch Connector
G00306293Courtesy of HYUNDAI MOTOR CO.

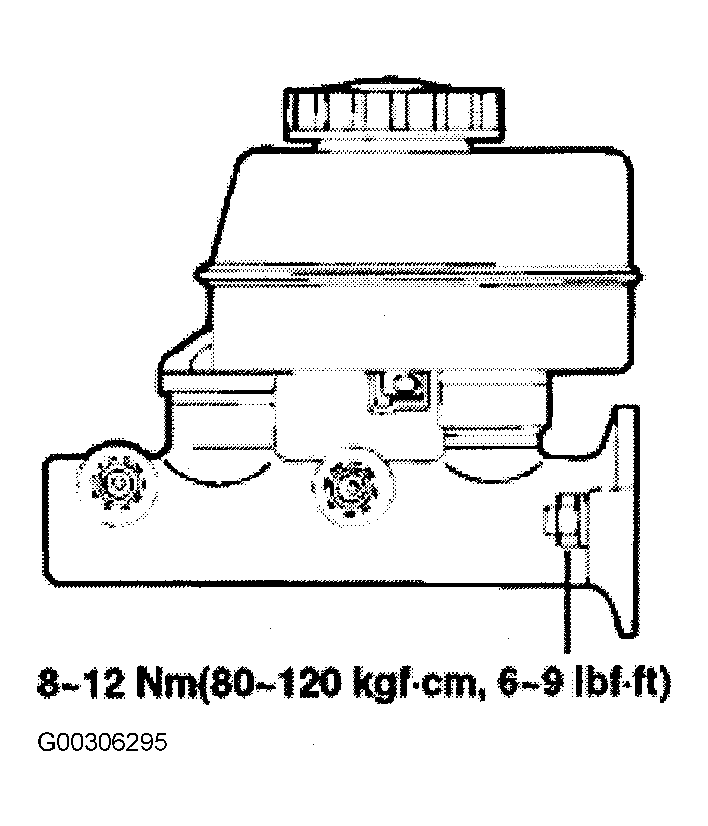

Fig 3: Locating Brake Master Cylinder Retaining Nuts
G00306295Courtesy of HYUNDAI MOTOR CO.
