Windshield Wiper

  1. Wiper low and wiper high does not work.

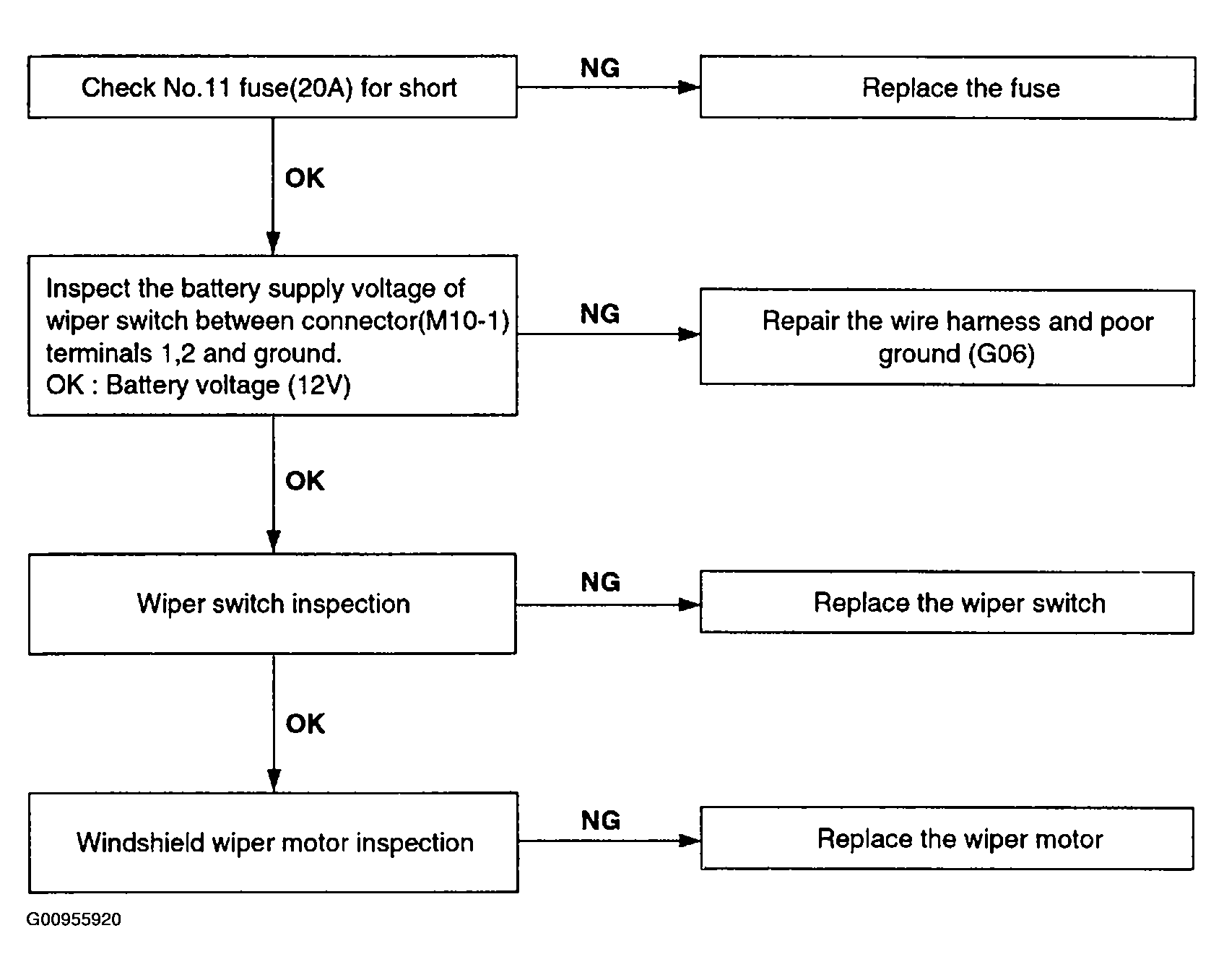

    Fig 1: Wiper Low & Wiper High Does Not Work Flow Chart
    G00955920Courtesy of HYUNDAI MOTOR CO.
  2. When washer switch is on, wiper does not work.

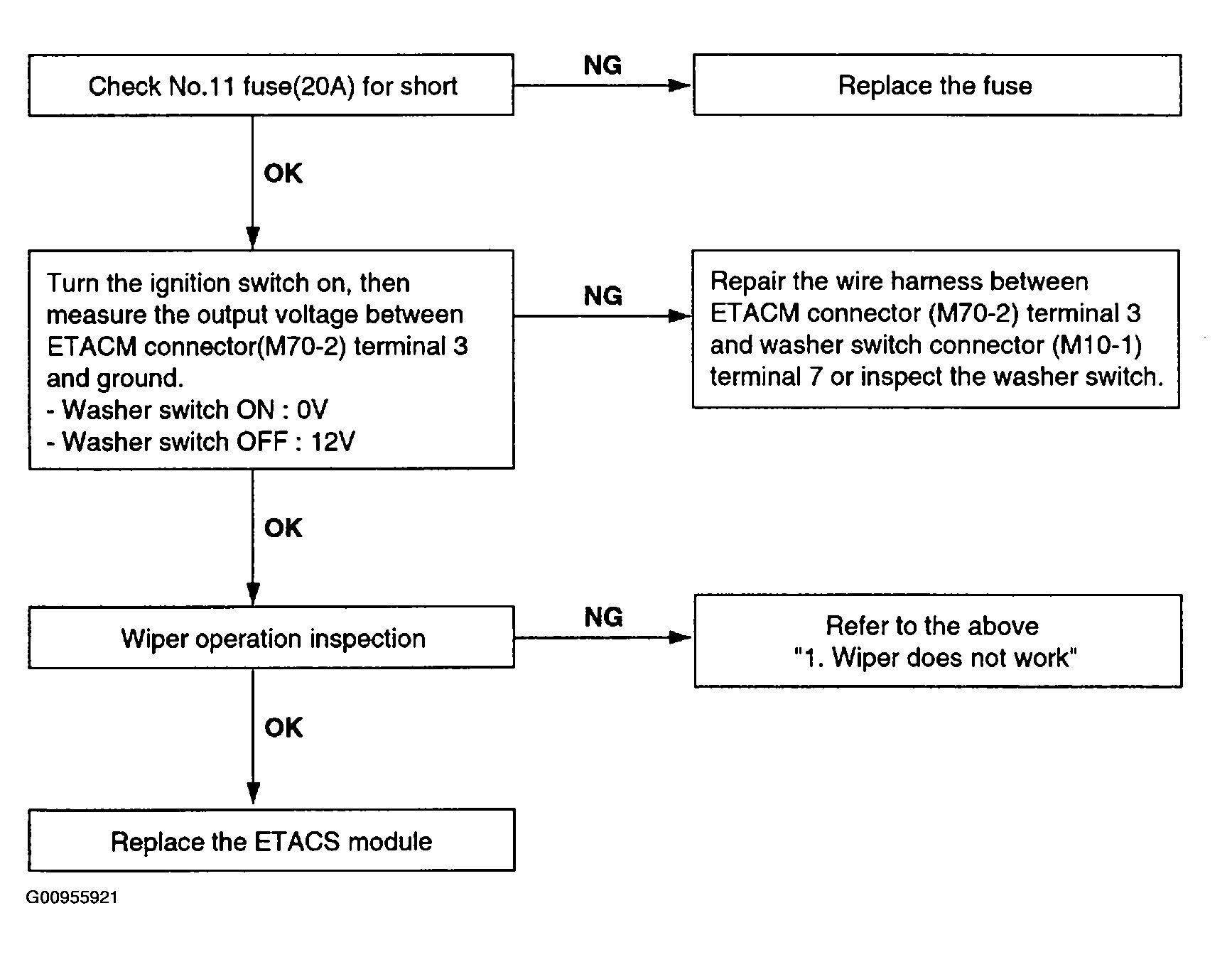

Fig 2: Washer Switch Is On & Wiper Does Not Work Flow Chart
G00955921Courtesy of HYUNDAI MOTOR CO.
