Chart 9: Tape Player "Eating" Tapes

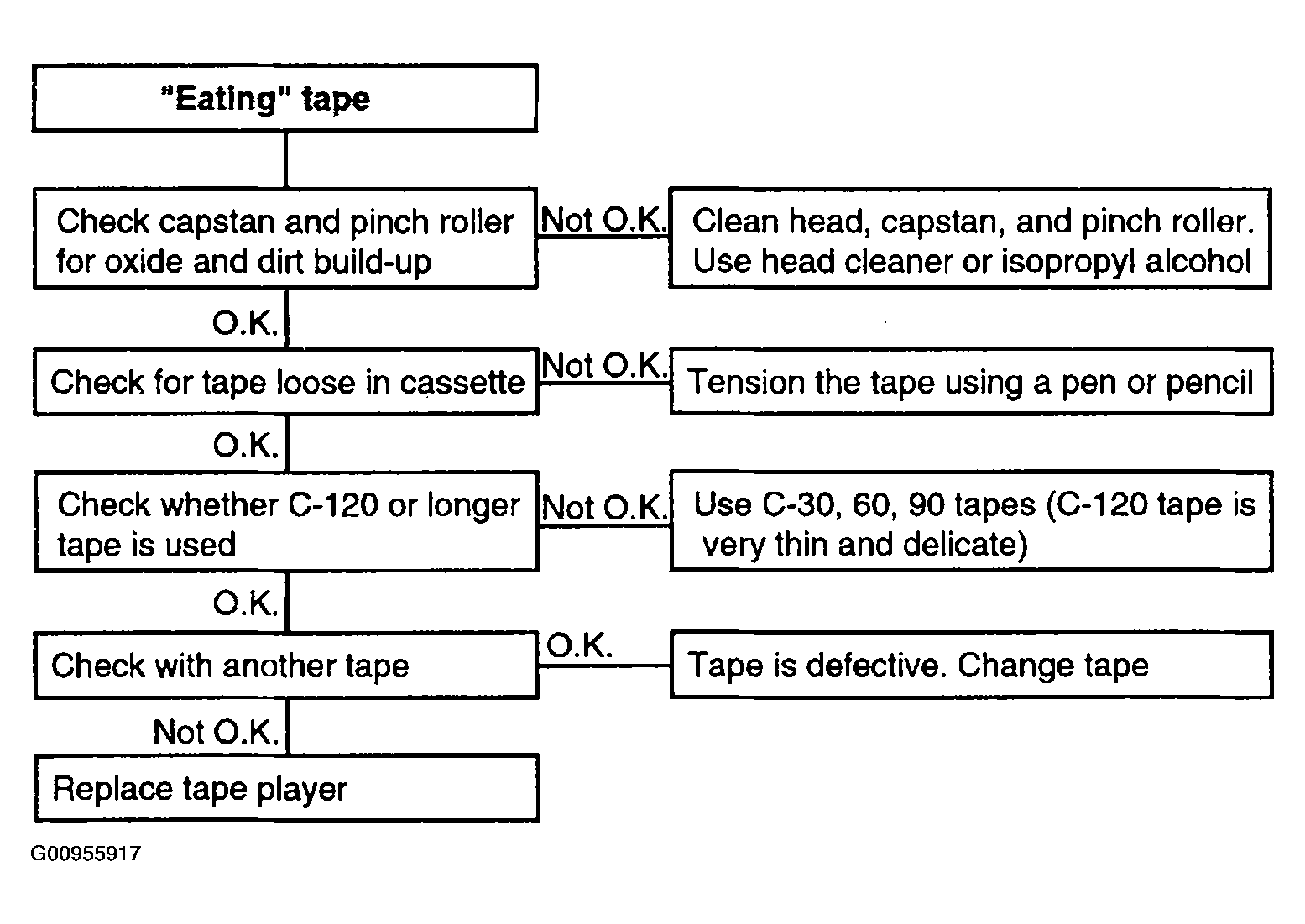

Fig 1: Tape Player "Eating" Tapes
G00955917Courtesy of HYUNDAI MOTOR CO.
