Chart 5: Cd Problems

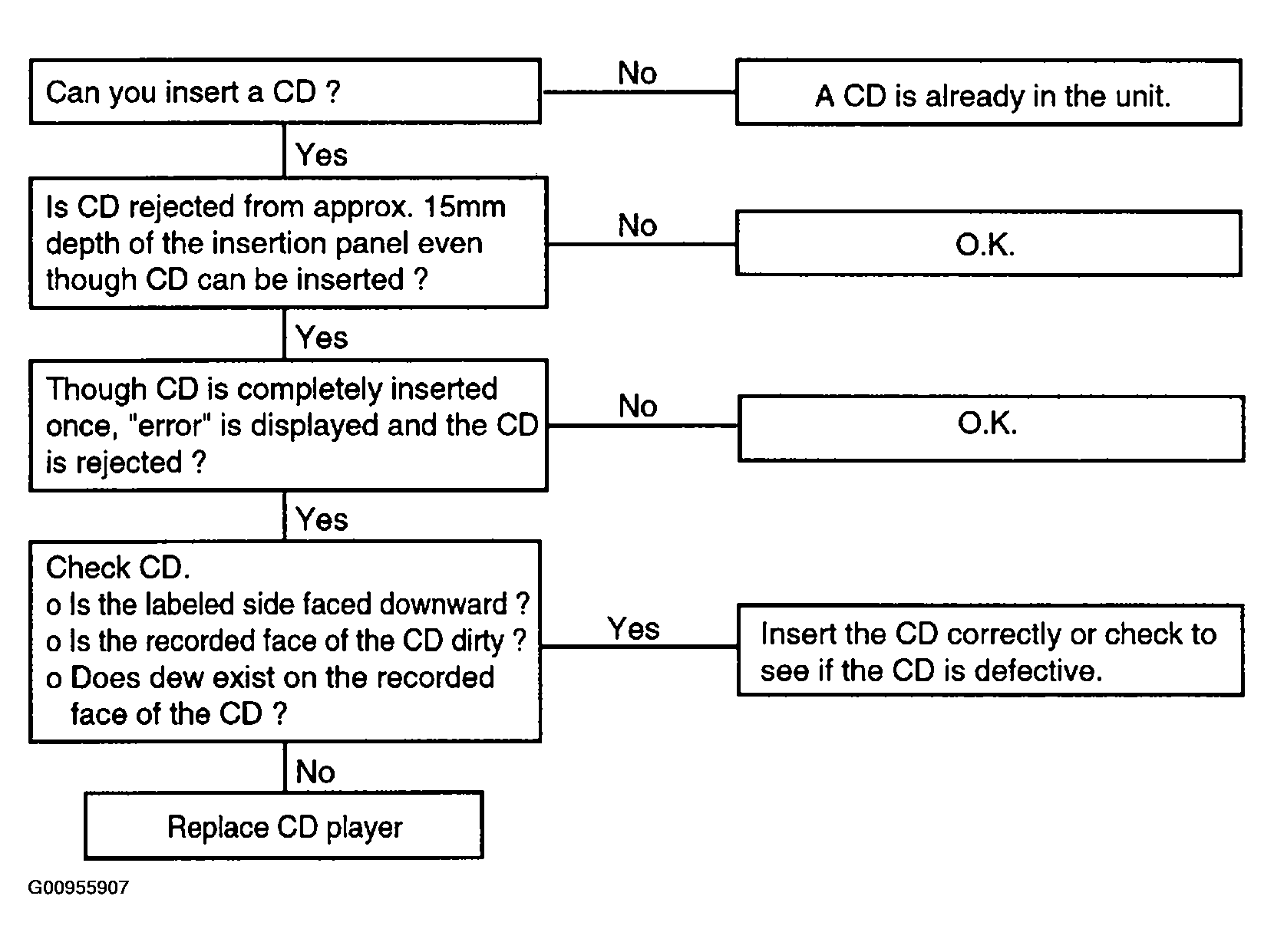

CD WILL NOT BE ACCEPTED

Fig 1: Will Not Accept CD
Courtesy of HYUNDAI MOTOR CO.

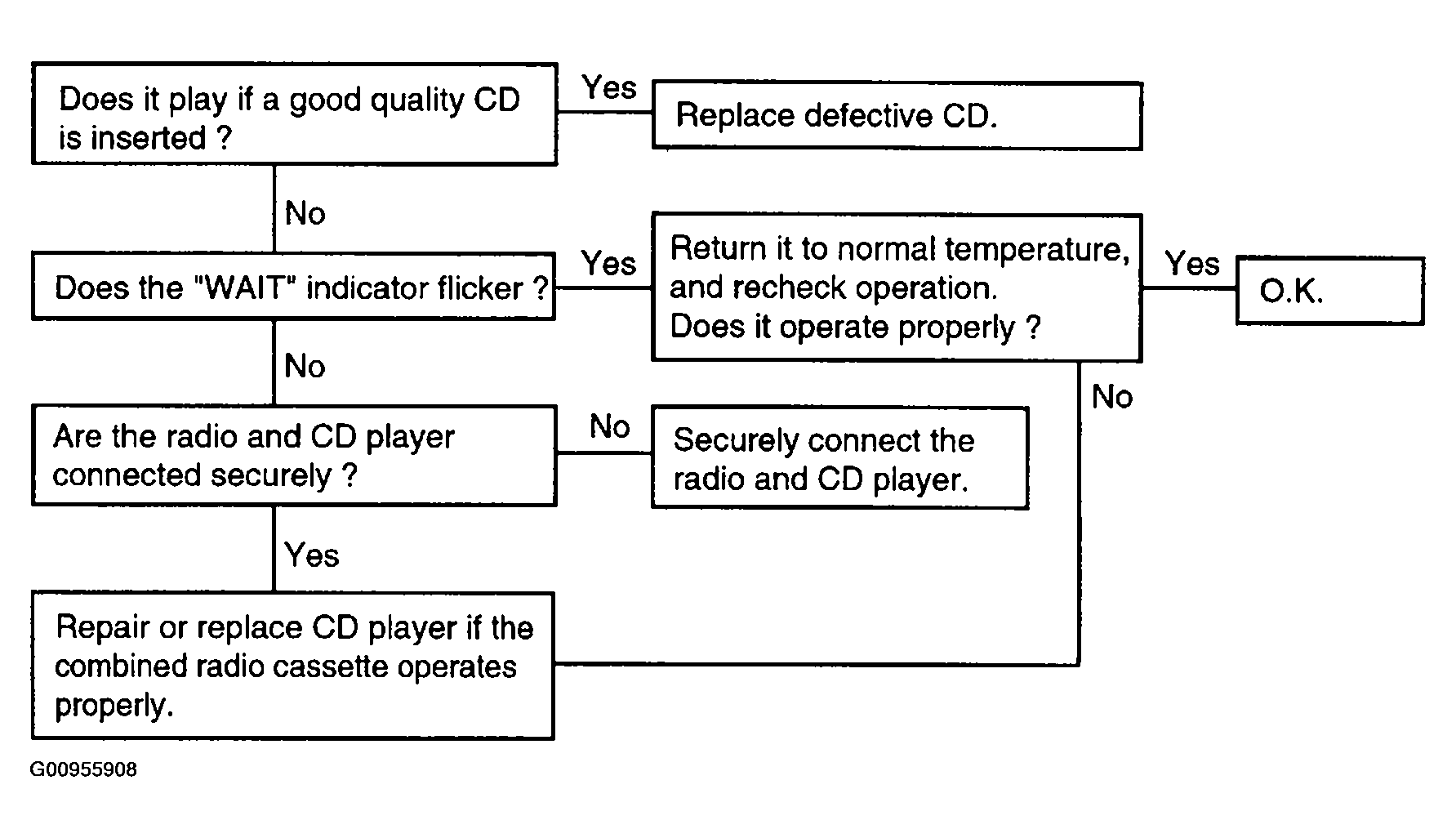

NO SOUND

Fig 2: No Sound From CD
Courtesy of HYUNDAI MOTOR CO.
CD SOUND SKIPS
1. Sound sometimes skips when parking.

  Fig 3: Sound Skips When Parking
  Courtesy of HYUNDAI MOTOR CO.
2. Sound sometimes skips when driving.
  (Stop vehicle, and check it.)

  (Check by using a CD which is free of scratches, dirt or other damage.)
Fig 4: Sound Skips When Driving
Courtesy of HYUNDAI MOTOR CO.

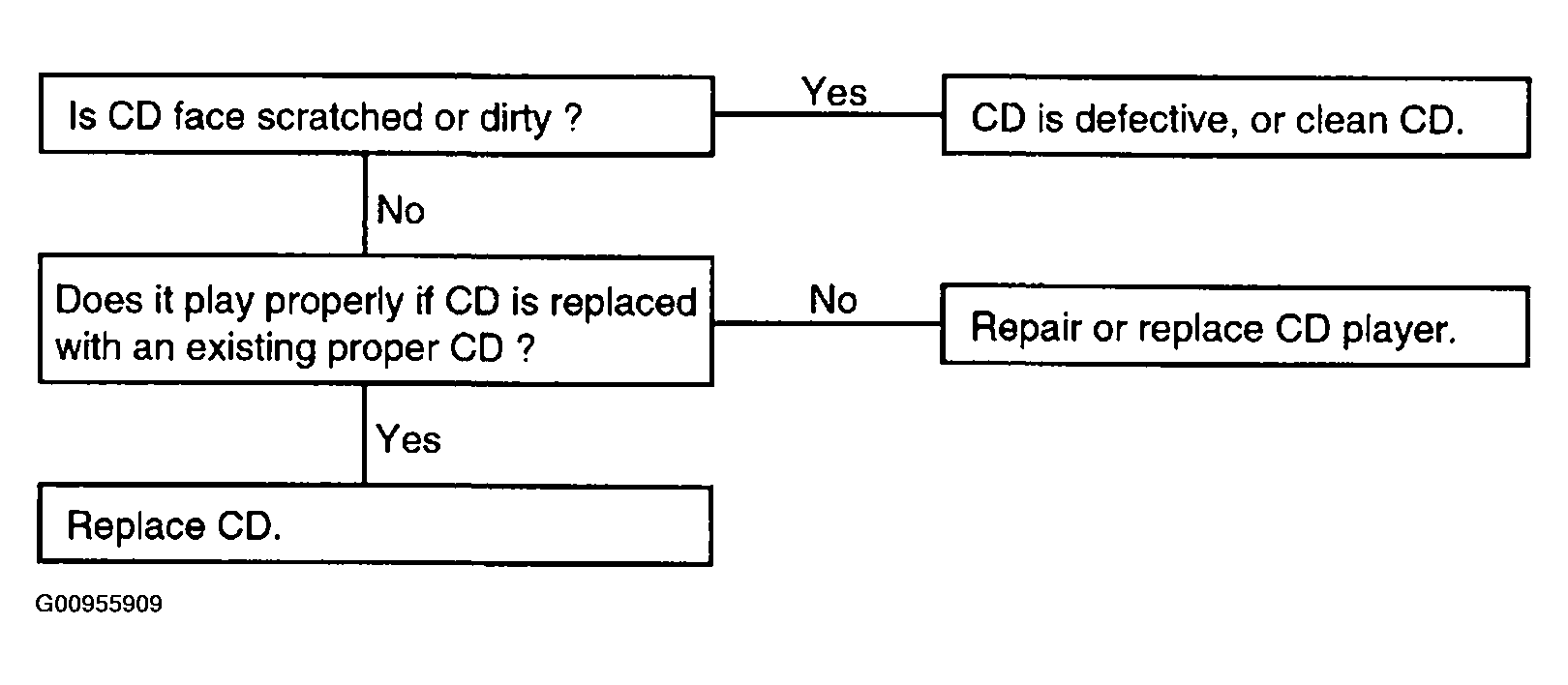

SOUND QUALITY IS POOR

Fig 5: Poor CD Sound Quality
Courtesy of HYUNDAI MOTOR CO.

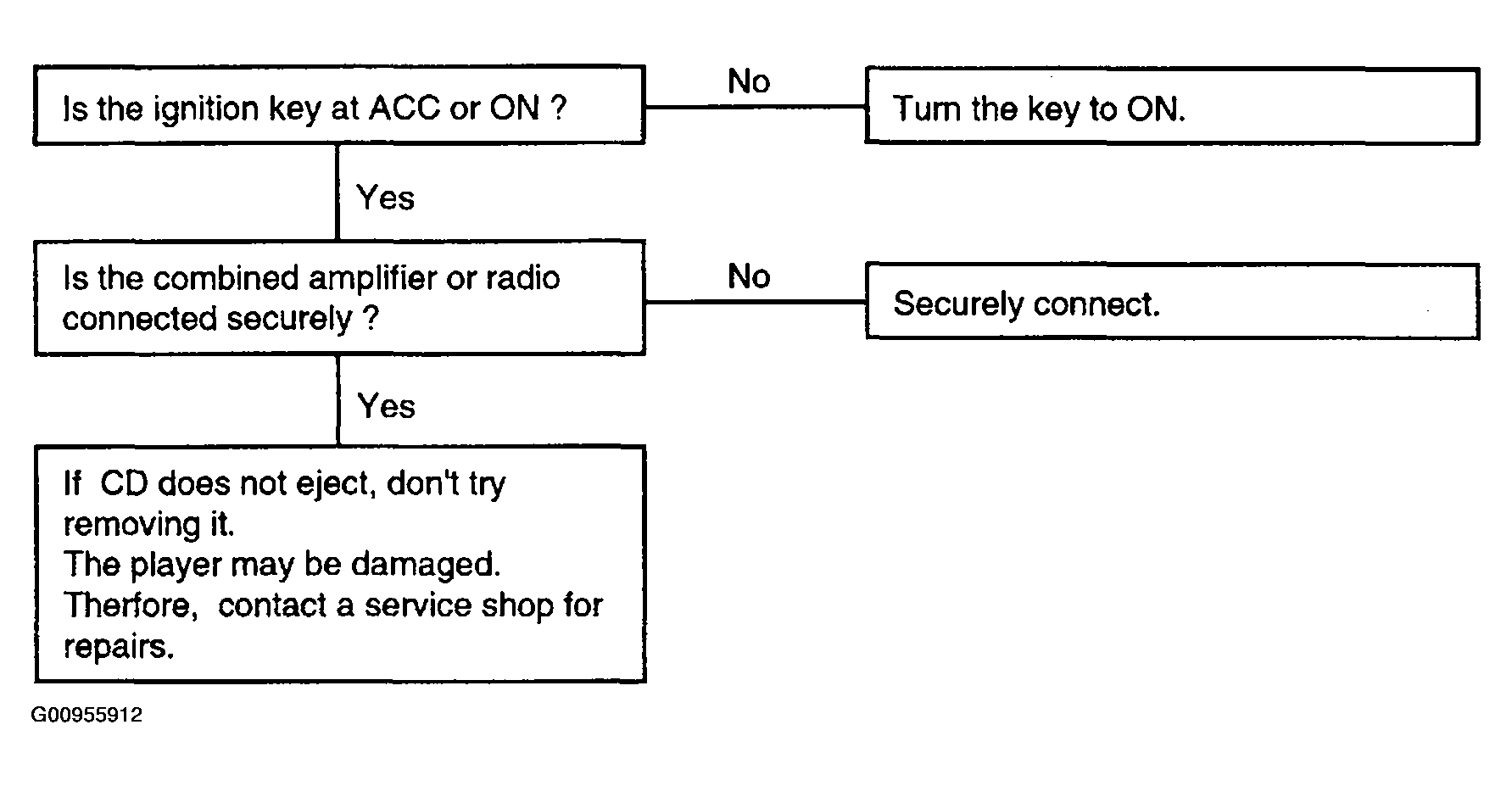

CD WILL NOT EJECT

Fig 6: CD Will Not Eject
Courtesy of HYUNDAI MOTOR CO.

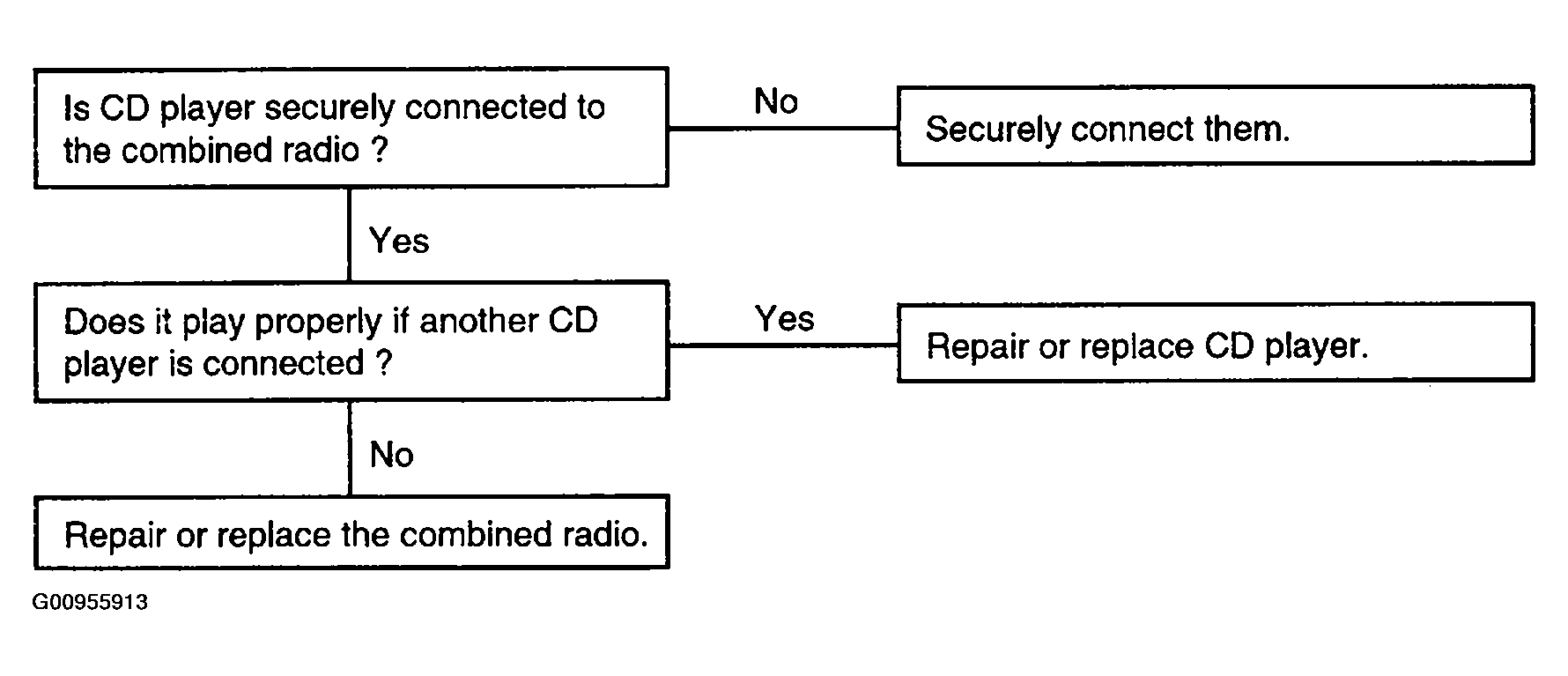

NO SOUND FROM ONE SPEAKER

Fig 7: No Sound From One Speaker

Courtesy of HYUNDAI MOTOR CO.
