Chart 4: Noise

  1. RADIO

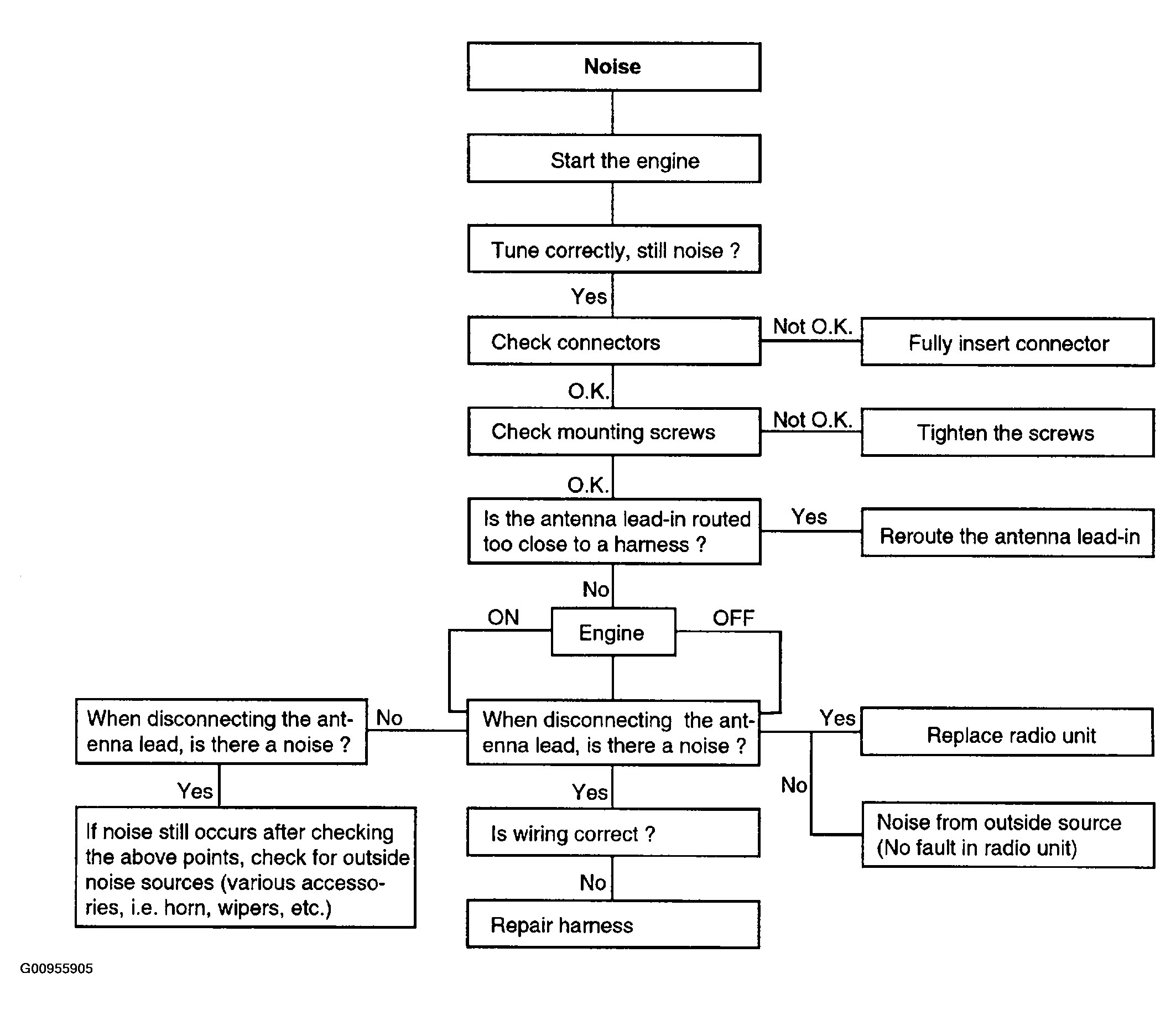

    Fig 1: Radio Noise
    G00955905Courtesy of HYUNDAI MOTOR CO.
  2. TAPE

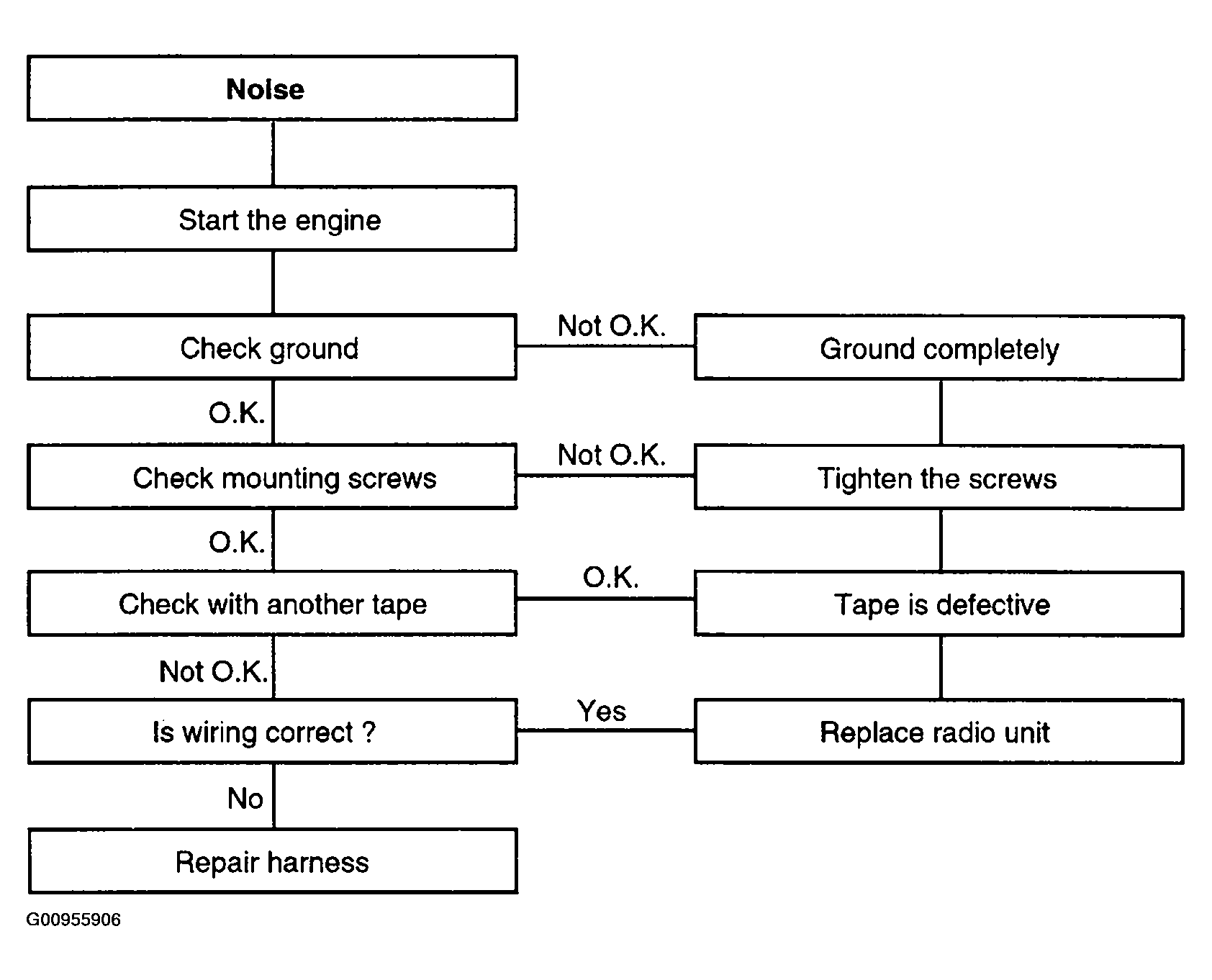

Fig 2: Tape Player Noise
G00955906Courtesy of HYUNDAI MOTOR CO.
