Chart 10: Motor Antenna

  1. MOTOR ANTENNA WON'T EXTEND OR RETRACT

    Clean and polish the surface of the antenna rod.

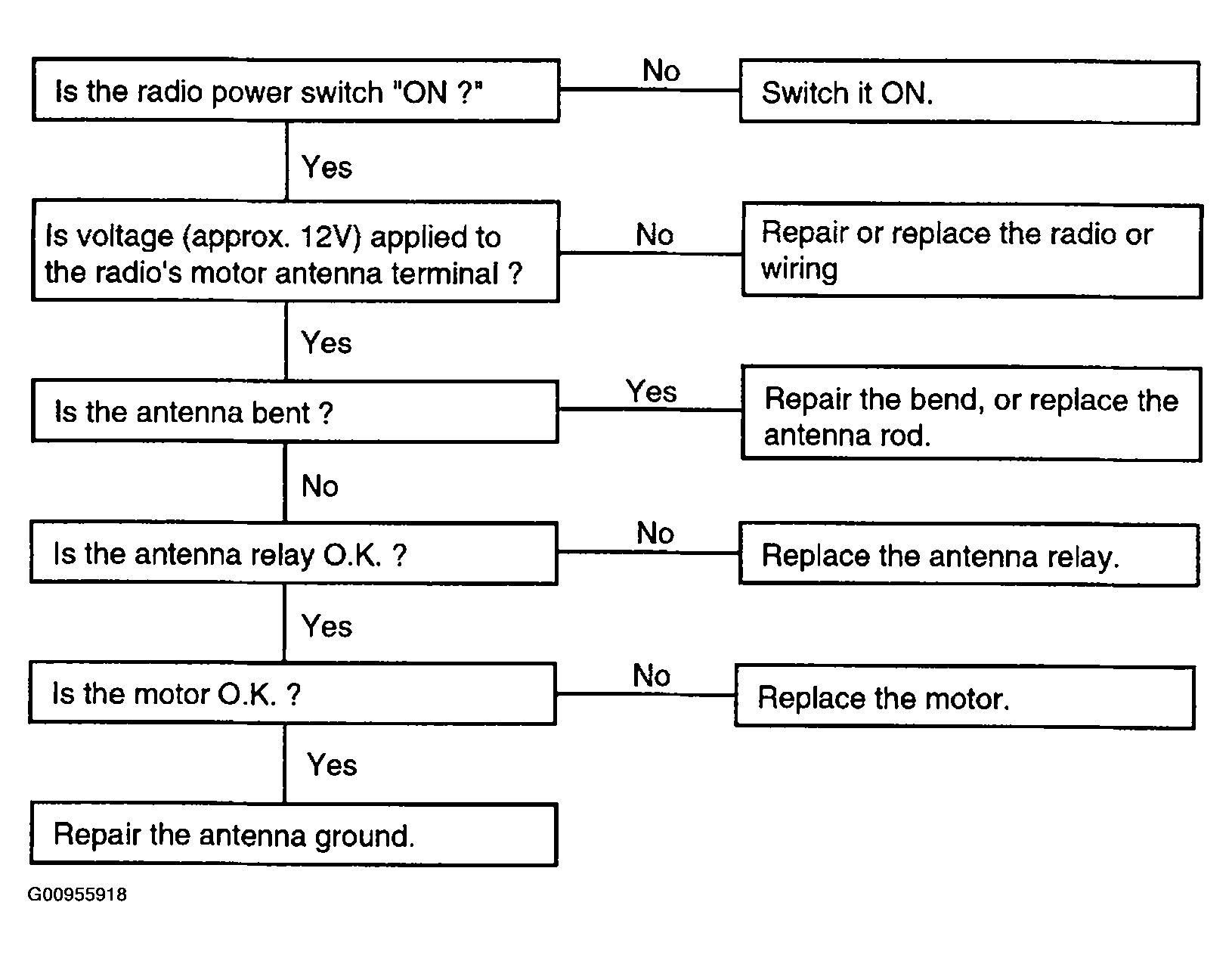

    Fig 1: Motor Antenna Won't Extend Or Retract
    G00955918Courtesy of HYUNDAI MOTOR CO.
  2. MOTOR ANTENNA EXTENDS & RETRACTS BUT DOES NOT RECEIVE

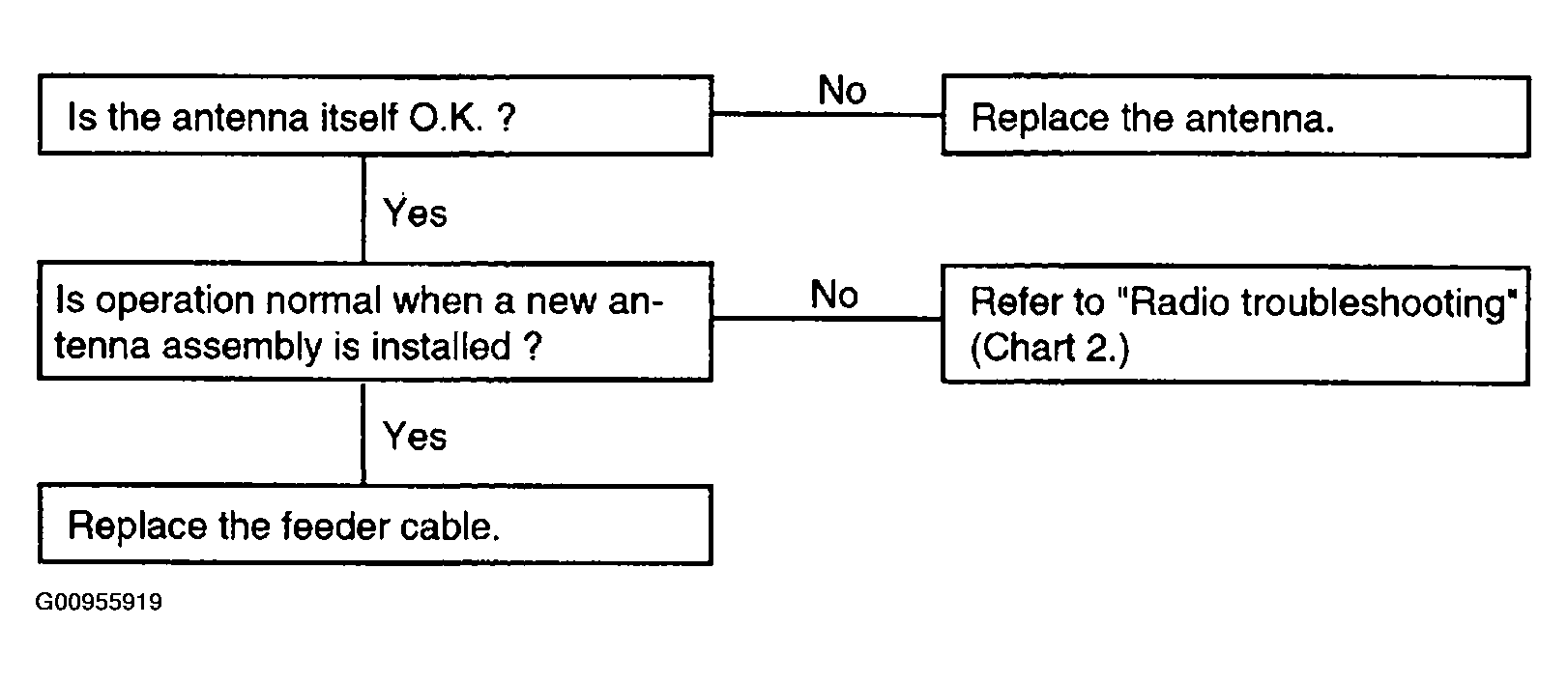

Fig 2: Motor Antenna Extends & Retracts But Does Not Receive
G00955919Courtesy of HYUNDAI MOTOR CO.
