Chart 1: No Sound

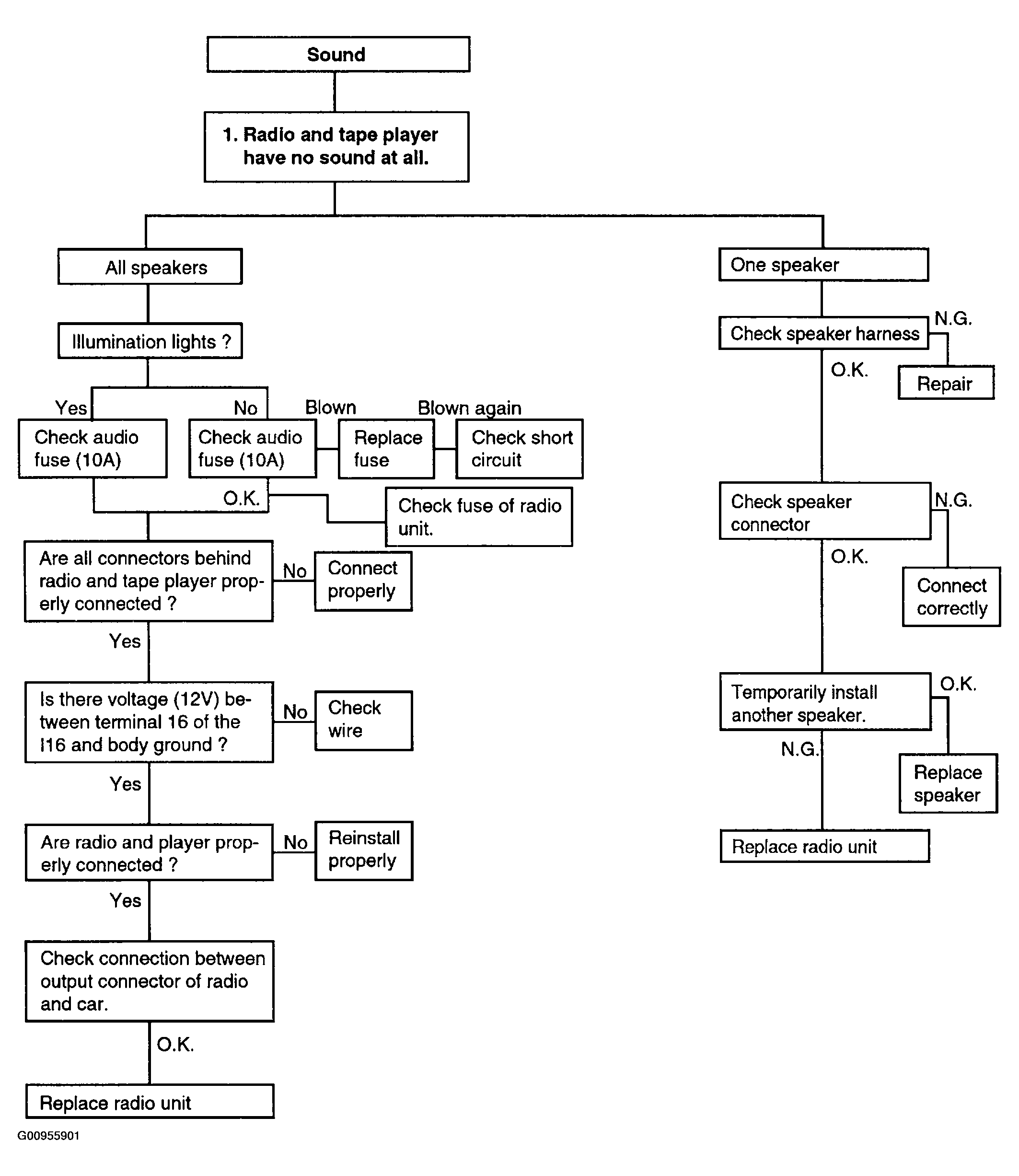

Fig 1: Radio & Tape Player Have No Sound At All

G00955901

Courtesy of HYUNDAI MOTOR CO.

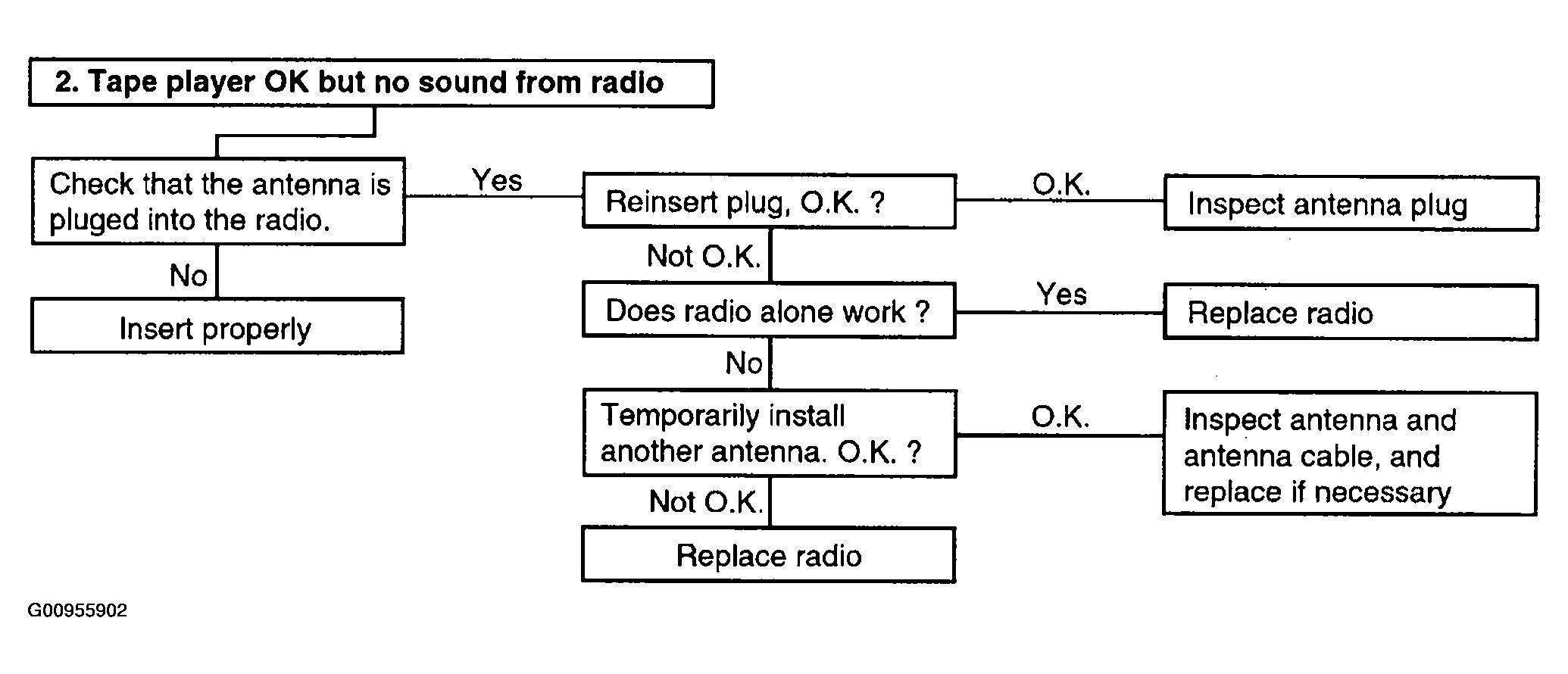

Fig 2: Tape Player OK But No Sound From Radio

G00955902

Courtesy of HYUNDAI MOTOR CO.
