Master Cylinder: Reassembly

To reassemble, reverse disassembly procedure. Before reassembly, apply brake fluid or brake assembly fluid to all parts.

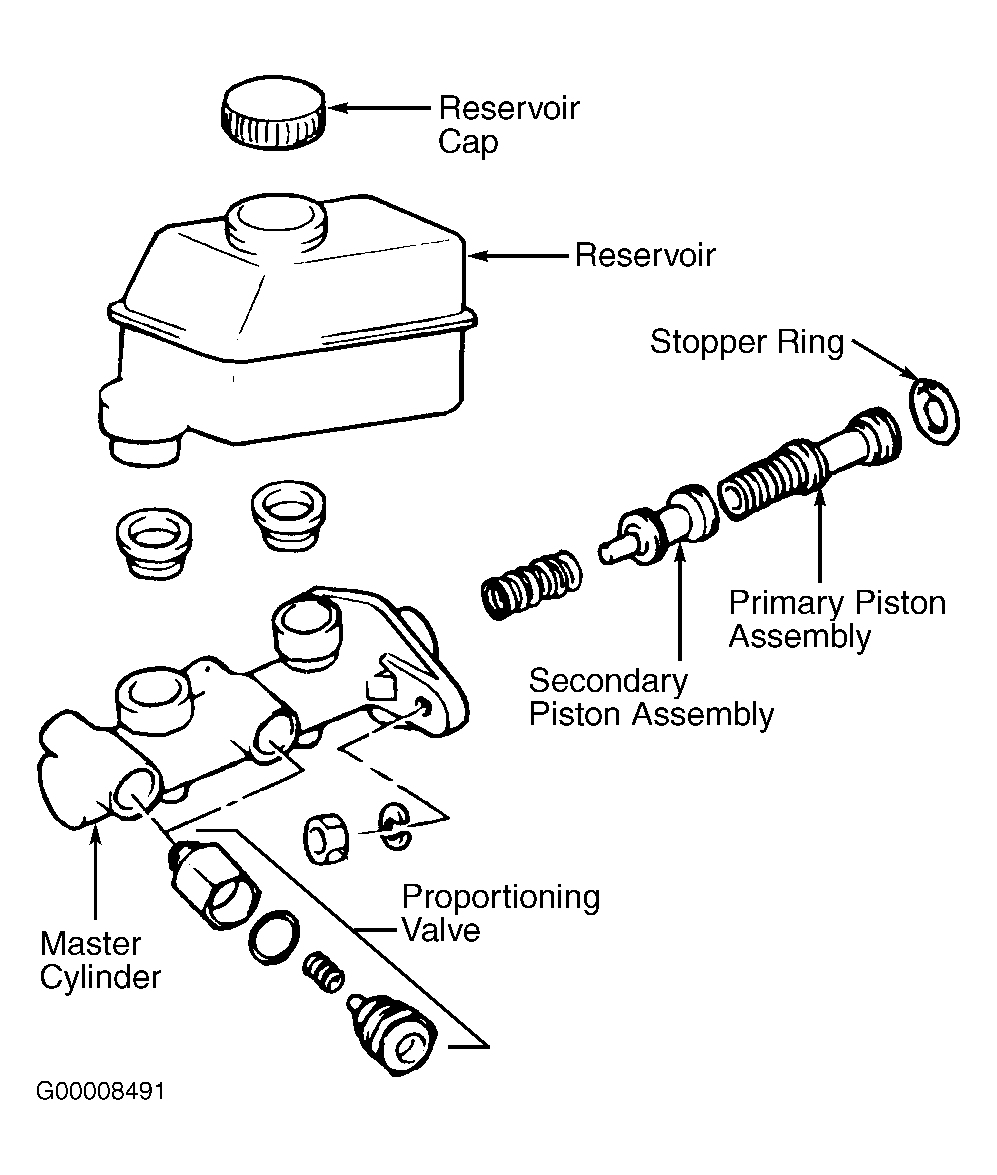

Fig 1: Exploded View Of Master Cylinder (Accent)

Courtesy of HYUNDAI MOTOR CO.

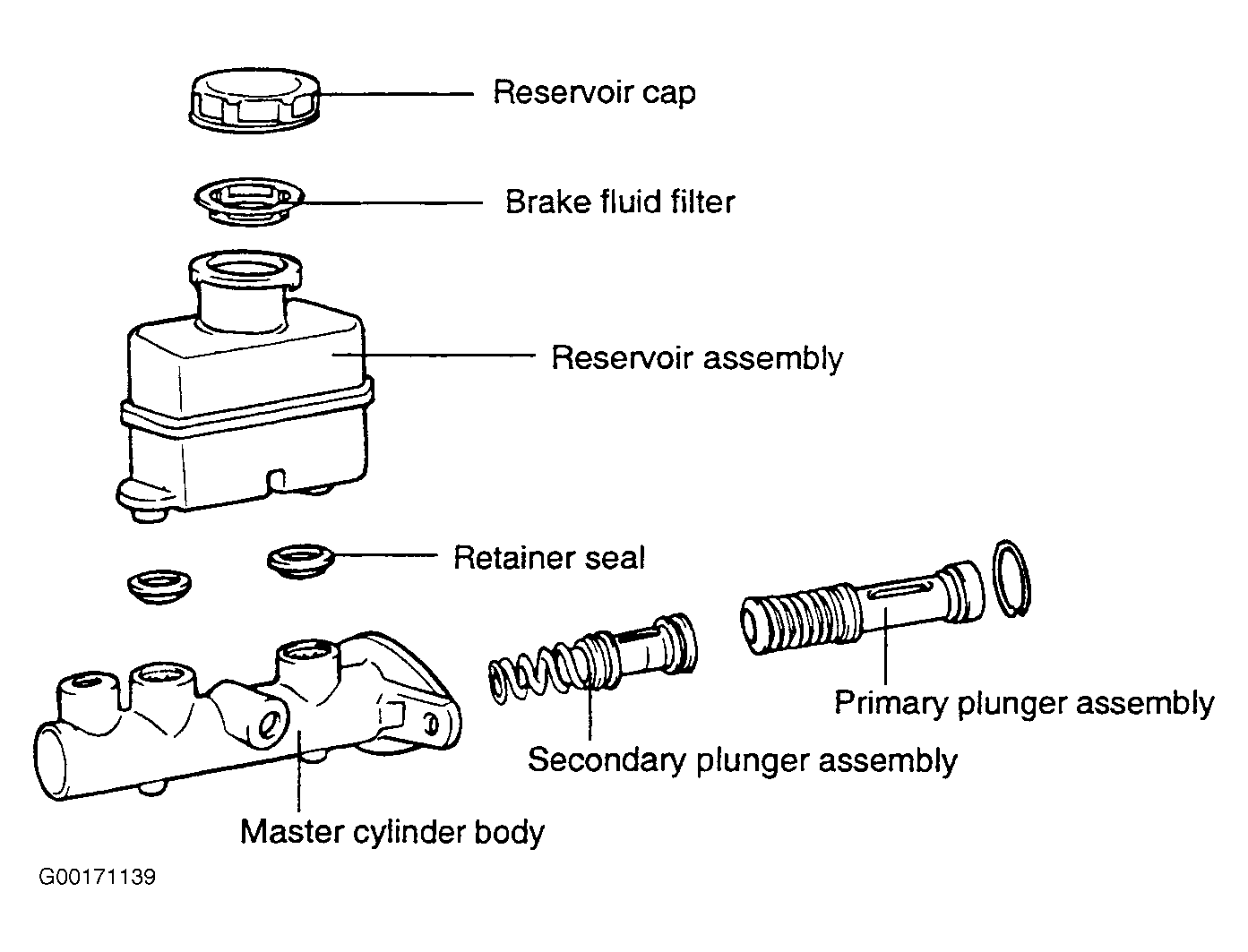

Fig 2: Exploded View Of Master Cylinder (Elantra & Santa Fe)

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Exploded View Of Master Cylinder (Sonata & XG350)

Courtesy of HYUNDAI MOTOR CO.
