Indicators And Gauges
Indicators And Gauges

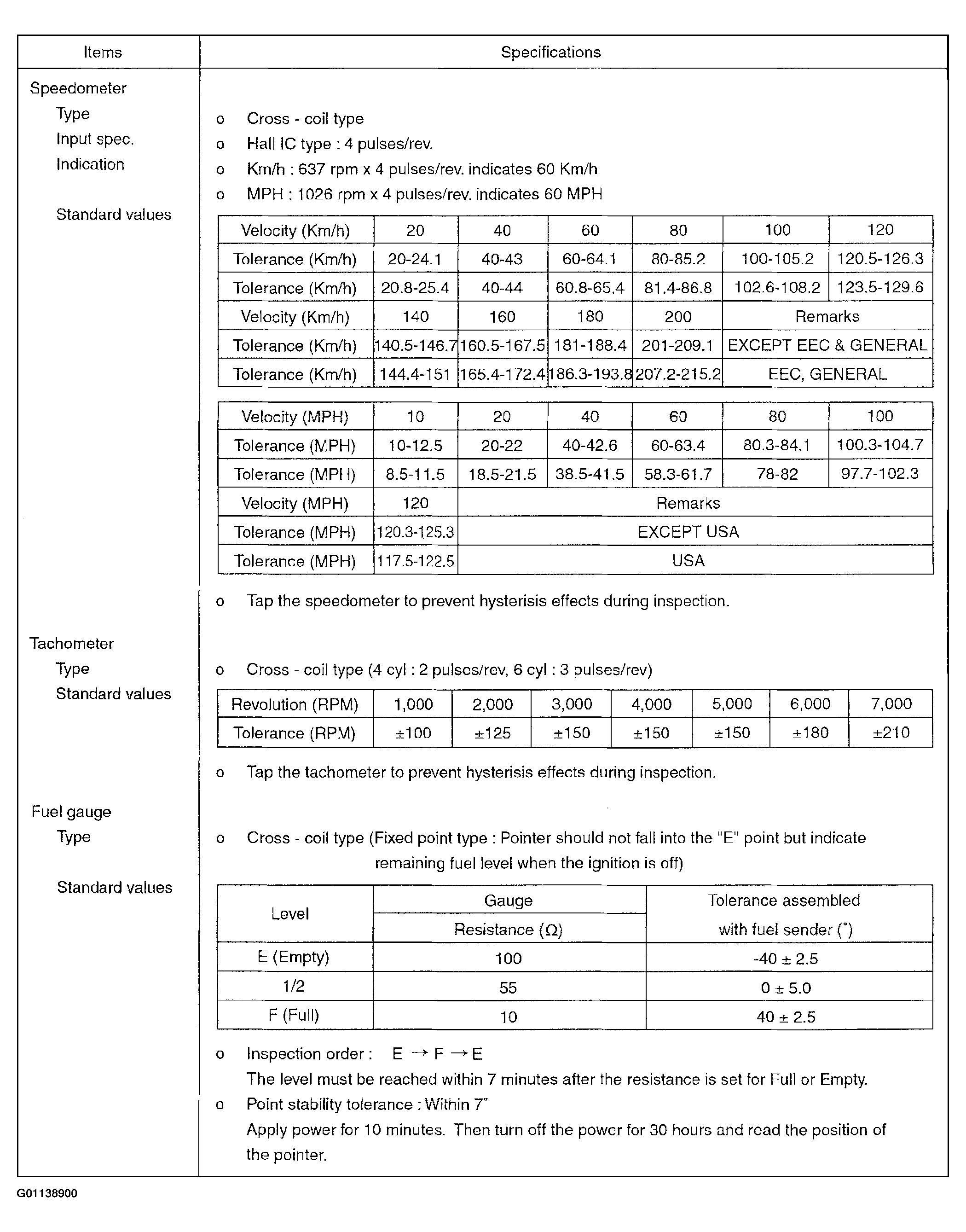

Fig 1: Indicators & Gauges Service Specifications (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

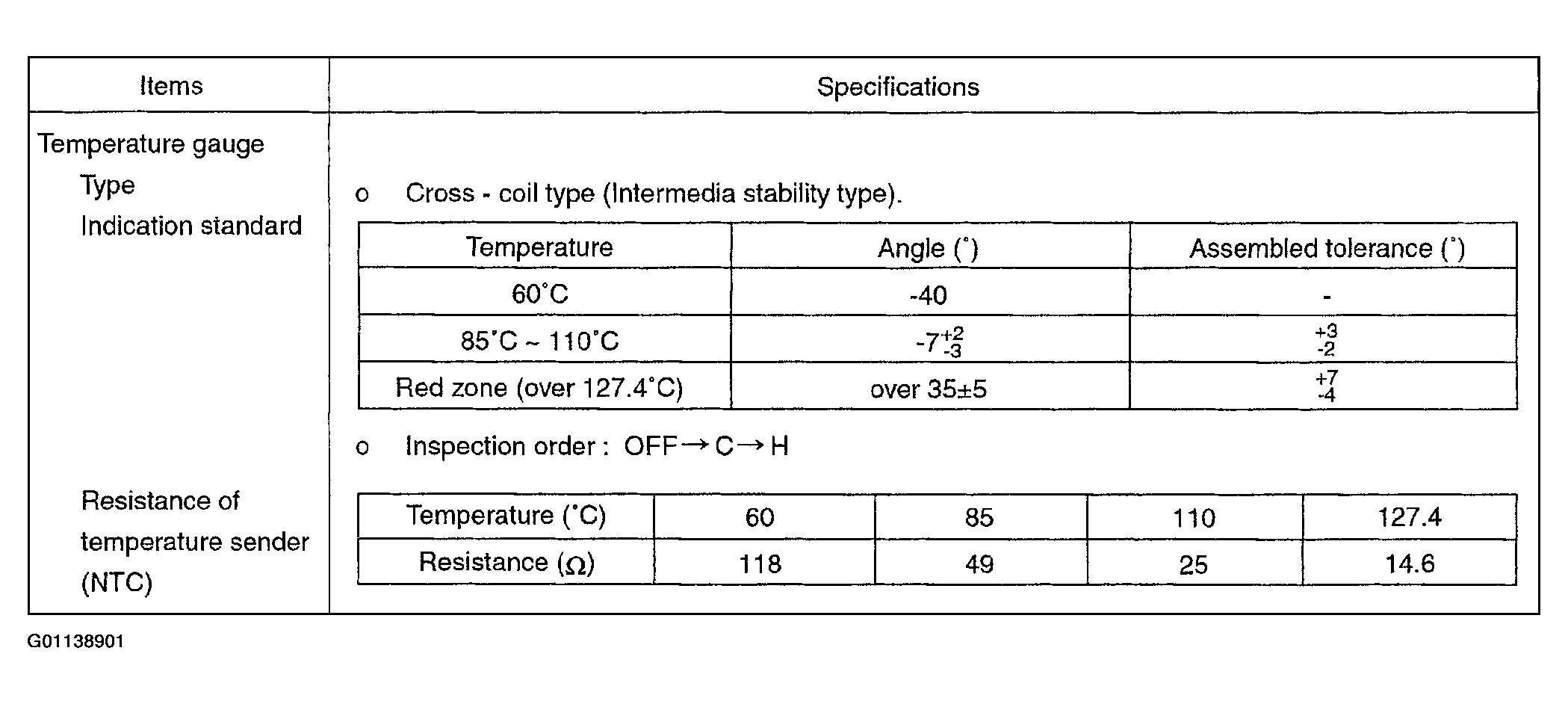

Fig 2: Indicators & Gauges Service Specifications (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
