Removal & Installation (Rear)
WARNING: This page is about a different car, the 2002 Hyundai XG350. However, it is still accessible from the selected car via links, so may be relevant.

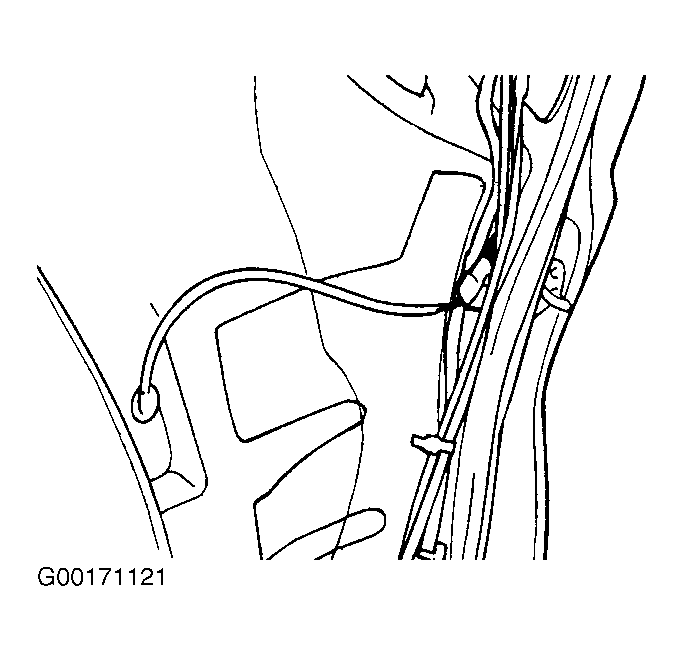

For rear wheel speed sensors, remove rear seat cushion. Remove rear pillar trim. Disconnect wheel speed sensor harness connector. See Fig 1 . Raise and support vehicle. Remove wheel. Remove bolts for sensor and cable. Remove wheel speed sensor from vehicle. To install, reverse removal procedure. Tighten wheel speed sensor and cable bolts to specification. See TORQUE SPECIFICATIONS .
