Master Cylinder: Disassembly

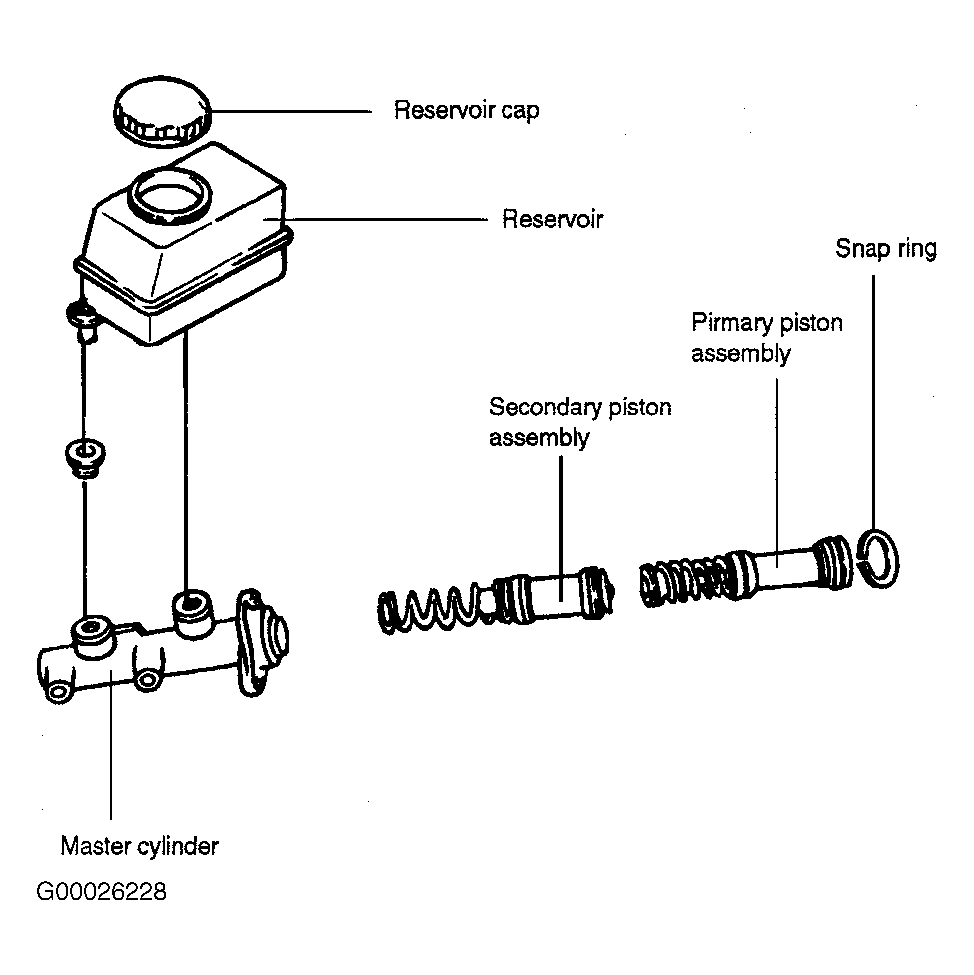

Place cylinder mounting flange in a soft-jaw vise. Remove reservoir cap, and drain brake fluid into a suitable container. Remove reservoir from master cylinder. While depressing piston, remove snap ring. See Figure,Figure or Figure . Withdraw primary and secondary piston assemblies from master cylinder.

NOTE: Do not disassemble master cylinder piston assemblies.
