Removal & Installation (Elantra)

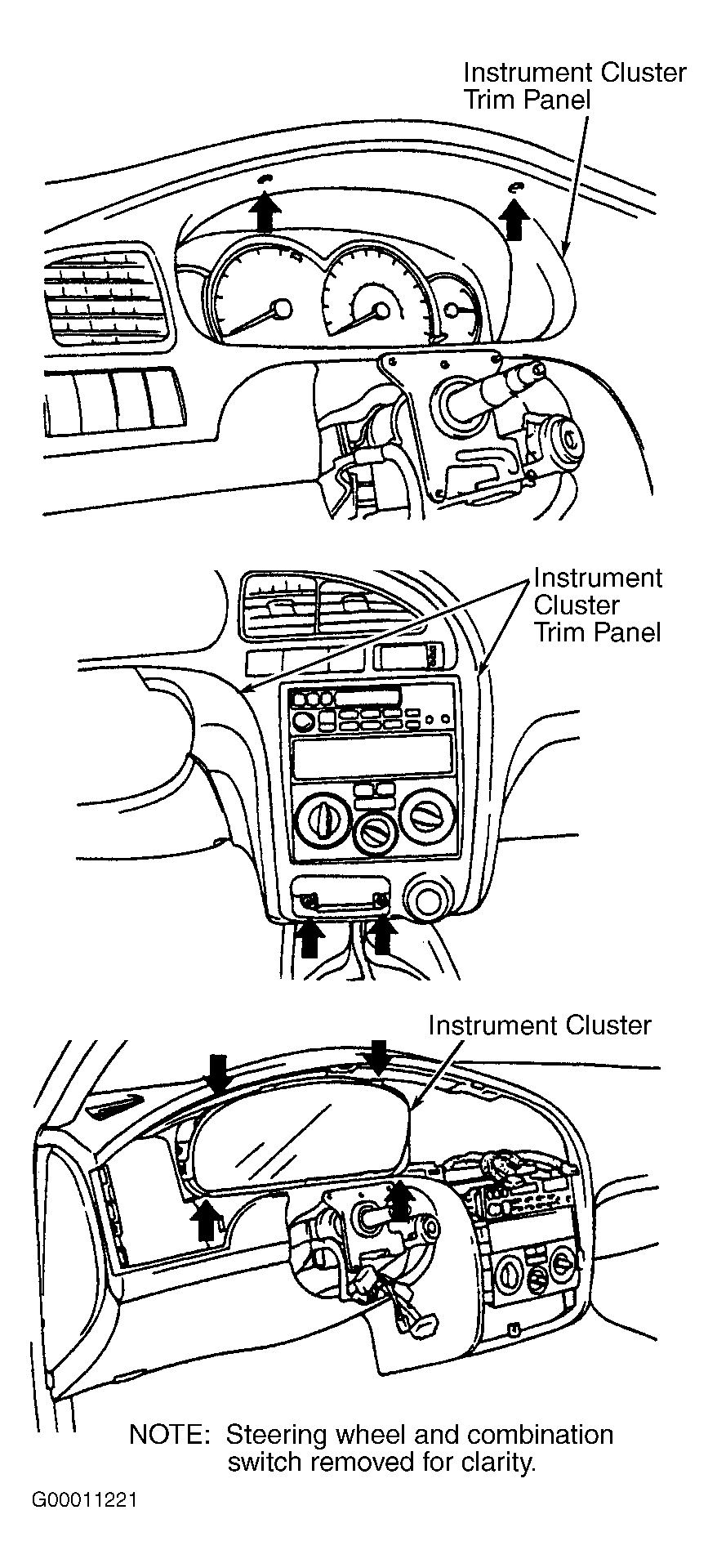

Disconnect negative battery cable. Remove 2 instrument cluster upper trim panel screws. See Fig 1. Remove ash tray. Remove 2 lower trim panel screws. Remove 4 instrument cluster screws. Carefully pull instrument cluster out enough to disconnect harness connectors from printed circuit board. Remove instrument cluster. To install, reverse removal procedure.
