Key to Wiring Diagrams and Symbol I.D.

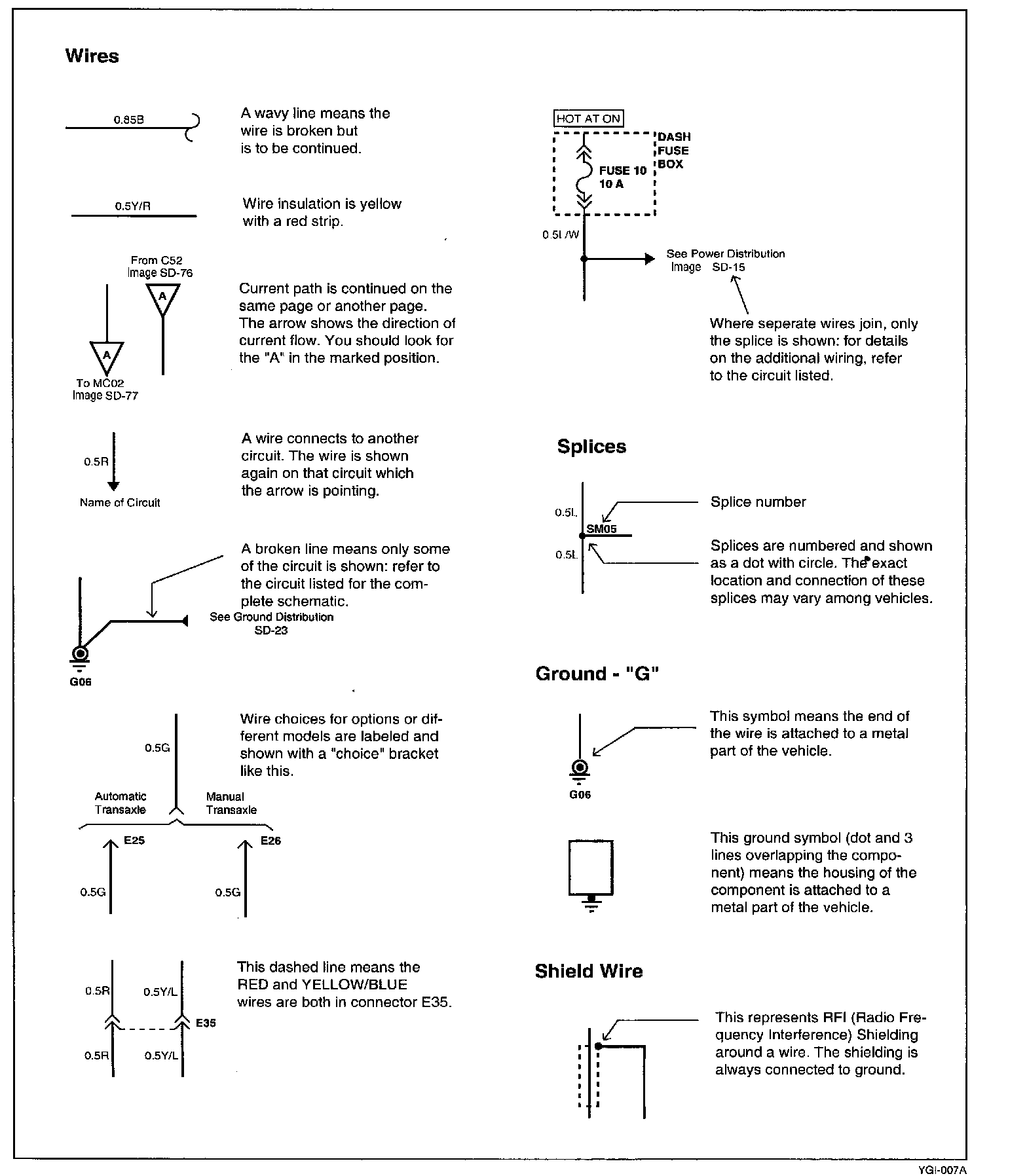

Symbols (Part 1 Of 3):

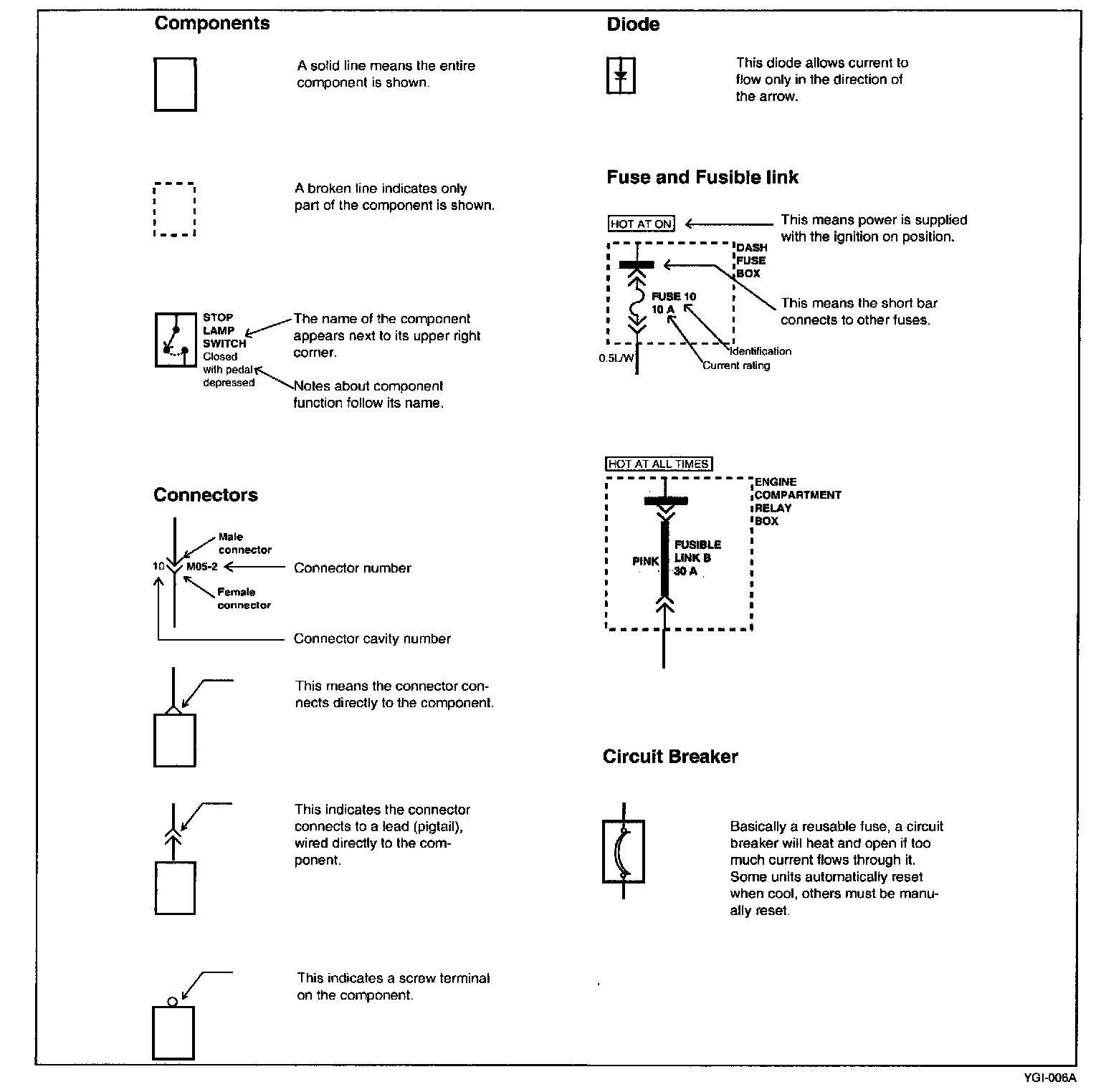

Part 2 Of 3:




Symbols (Part 3 Of 3):




The symbols and abbreviations explained here are used throughout the database.
