Removal (Accent)

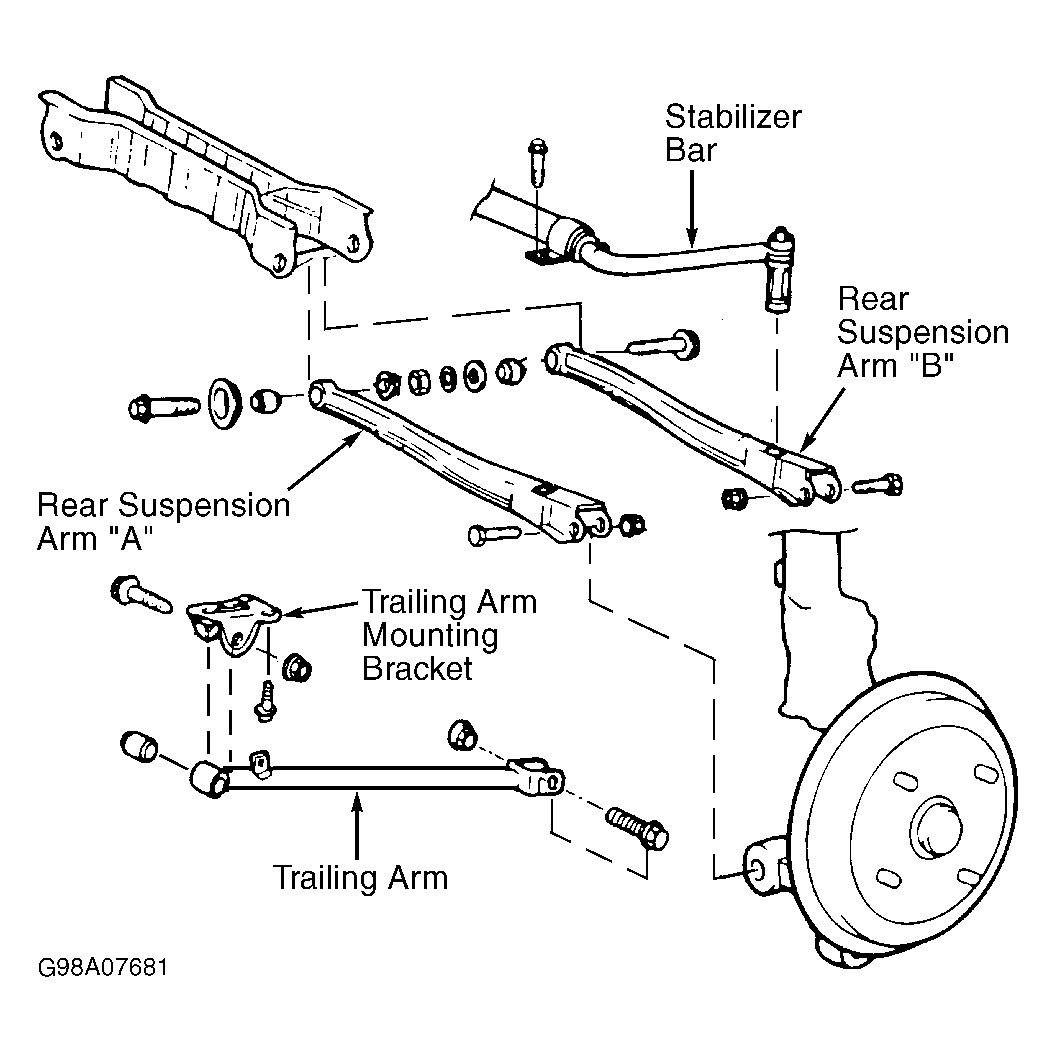

- Raise and support frame rails of vehicle with jack stands. Remove strut upper mounting nuts. See Fig 1. Remove brake drum.
- Disconnect brake hose clamp and parking brake cable. Remove stabilizer bar. Lower rear suspension slightly with floor jack. Disconnect trailing arm mounts from vehicle. Lower suspension and remove as an assembly.
