Sonata (2.5L)
- Hang the belt on the pulley of the tensioner and install the tensioner.

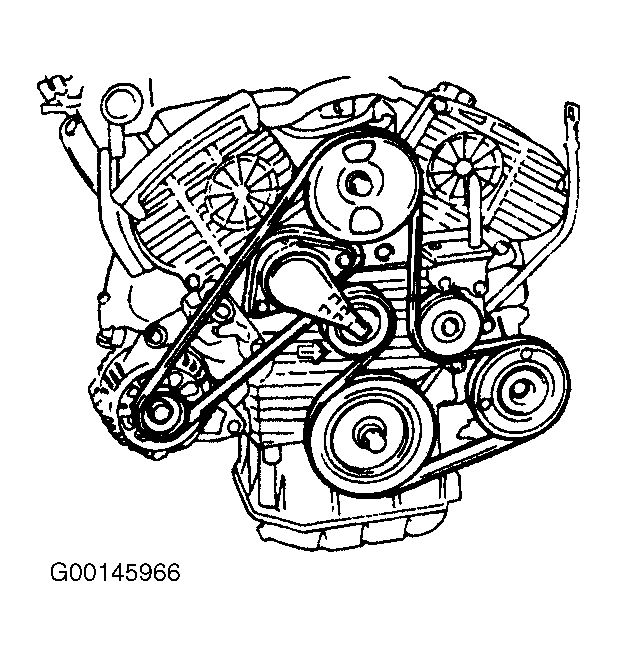

- Install the belt in the following order:
- Alternator
- Power steering pump
- Crankshaft pulley
- Air conditioning pulley
- Idler pulley
See Figure.

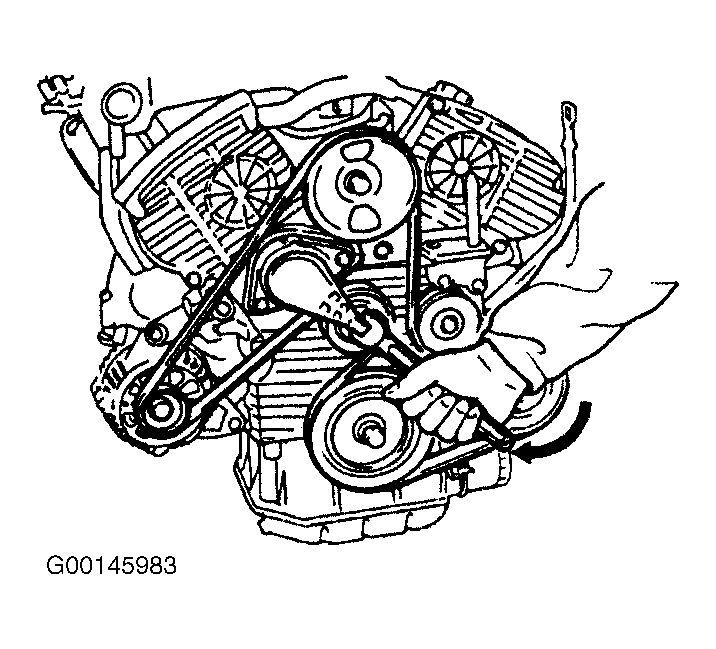

- Rotate the tensioner arm clockwise (about 14 degrees) with spaner (16mm) and hang the belt to the idler pulley. See Fig 1.
- When installing the belt on the hole of pulley, make sure there is no tooth gap of belt.
- The tensioner mark should be between the MIN and MAX position. If not, replace the belt. See Figure.
Courtesy of HYUNDAI MOTOR CO.
