Removal & Installation (Sonata 2.4L)

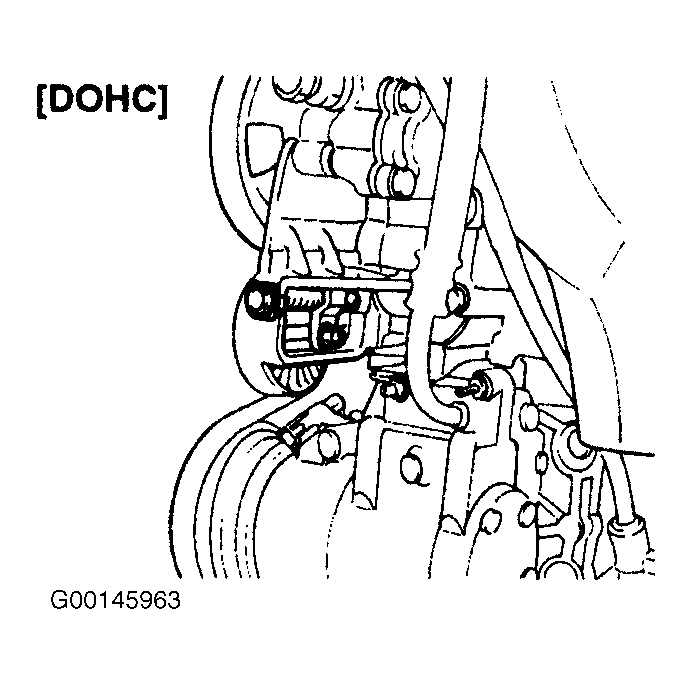

Loosen the tension pulley adjustment bolt "A". Using adjustment bolt "B", remove belt tension. See Figure. Remove drive belt. To install, reverse removal procedure. Adjust drive belt tension. See Sonata (2.4L)  under BELT TENSION INSPECTION & ADJUSTMENT.
