Removal & Installation (Accent)

To remove drive belt, loosen the tension pulley and remove the compressor drive belt. See Fig 1. To install, reverse removal procedure.

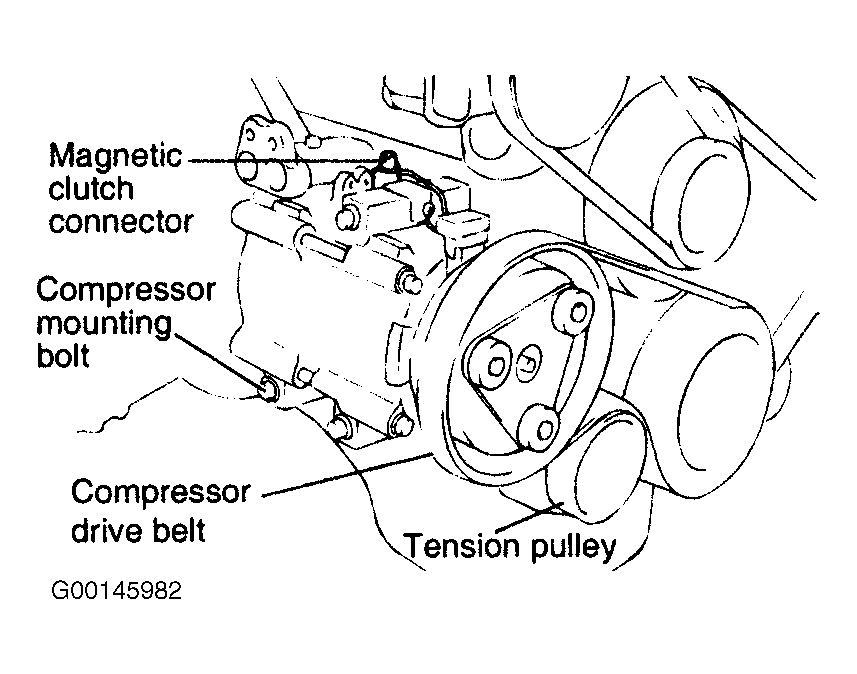

Fig 1: Removing A/C Drive Belt (Accent)
G00145982Courtesy of HYUNDAI MOTOR CO.
