Serpentine Belt Routing (Sonata 2.5L)

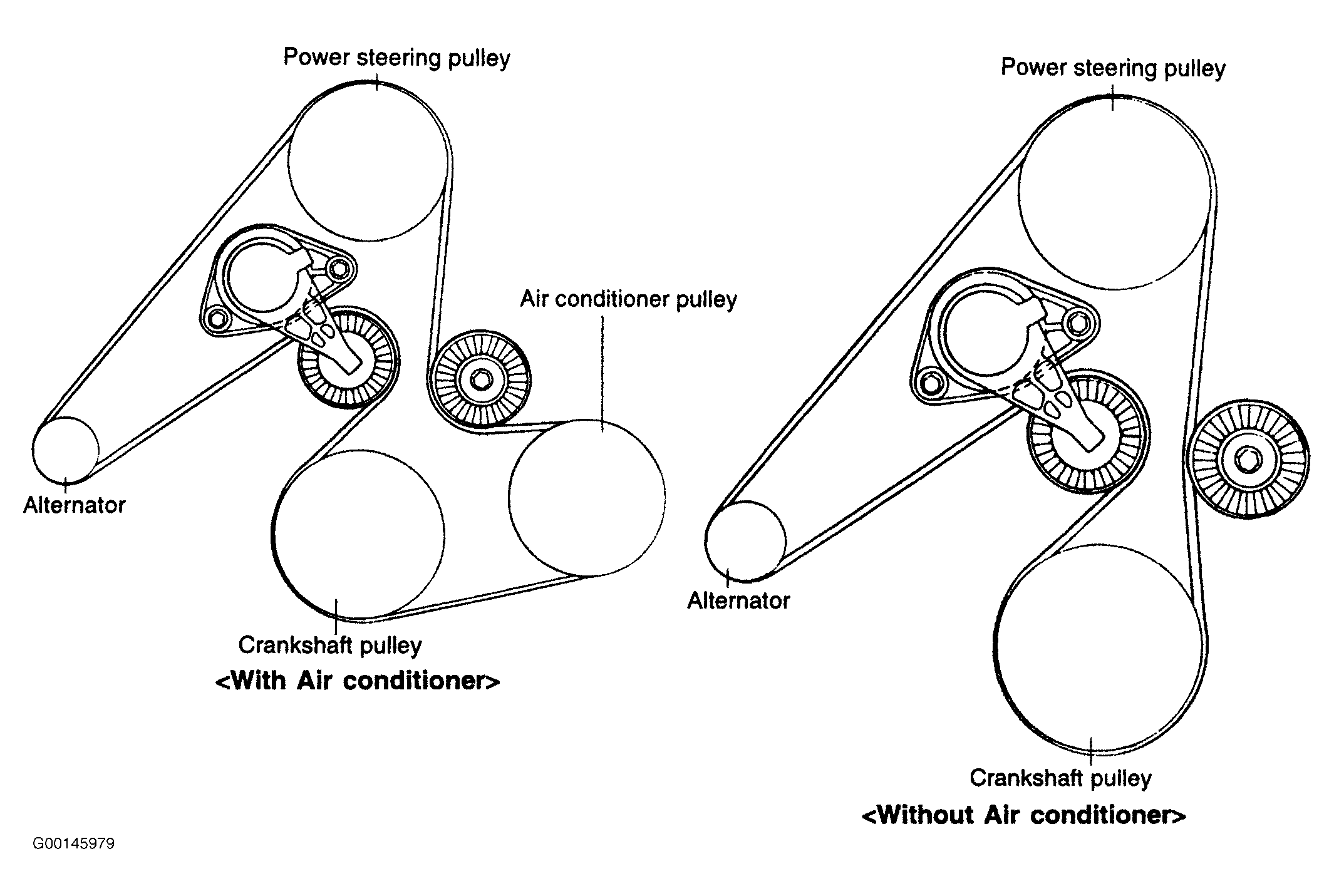

Fig 1: Serpentine Belt Routing (Sonata 2.5L)

G00145979

Courtesy of HYUNDAI MOTOR CO.
