Power Steering Drive Belt: Accent

Depress the drive belt by applying a pressure of 22 lbs. (10 kg.) at the specified point and measure the deflection to confirm that it is within the standard value. See Fig 1 or Fig 2 . To adjust the belt tension, loosen the oil pump mounting bolts, move the oil pump and then retighten the bolts.

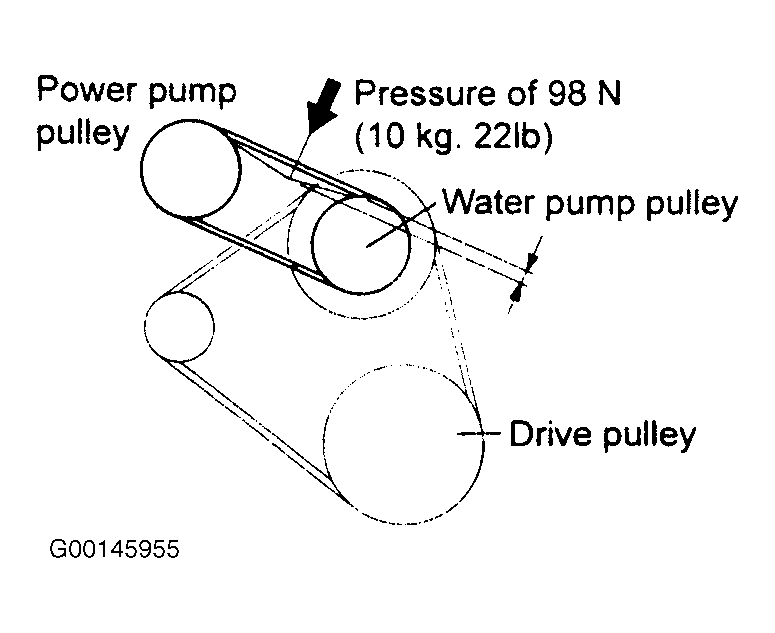

Fig 1: Adjusting Power Steering Drive Belt Tension (1999 Accent)
G00145955Courtesy of HYUNDAI MOTOR CO.

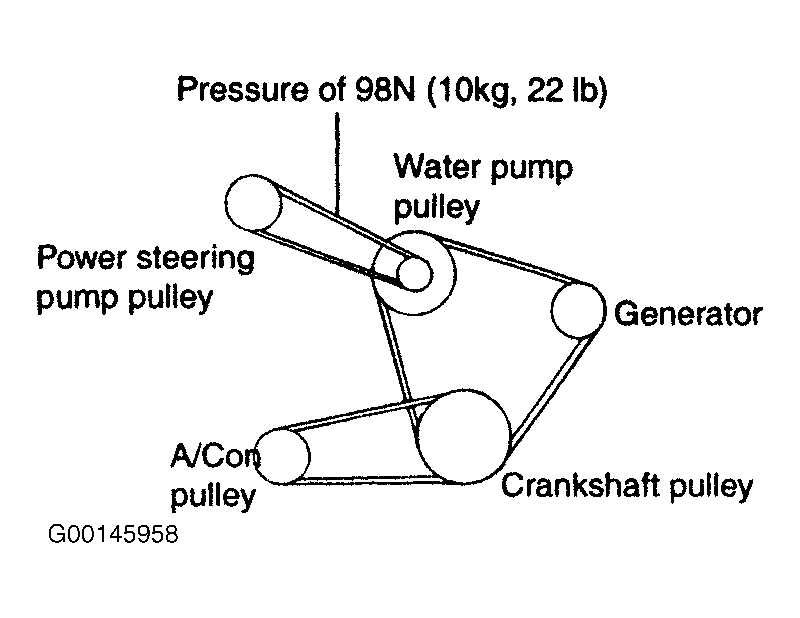

Fig 2: Adjusting Power Steering Drive Belt Tension (2000 Accent)
G00145958Courtesy of HYUNDAI MOTOR CO.
