Sonata (2.4L)
- Check that the belts are not damaged and are properly fit into the pulley grooves.
- Apply 22 lbs. (10 kg.) of force to the belt back midway between the pulleys as illustrated. See Figure. Measure the amount of deflection with a tension gauge.

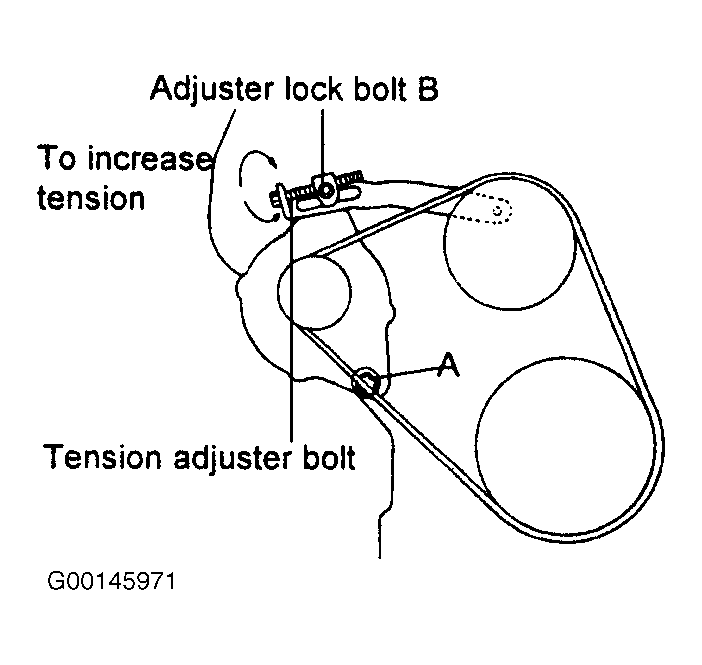

- To adjust generator drive belt, loosen generator nut "A" and the tension adjuster lock bolt "B". See Fig 1.
- Using the tension adjuster bolt, adjust the belt tension to specification. See SPECIFICATIONS .
- Tighten the adjuster lock bolt "B".
- Tighten the generator nut "A".
- Check the tension or deflection of belt and readjust if necessary.
CAUTION:
If the belt is too loose, there will cause noise or premature wear. If the belt is too tight, the engine coolant pump bearing or the generator will be damaged.
