Removal & Installation (Sonata)

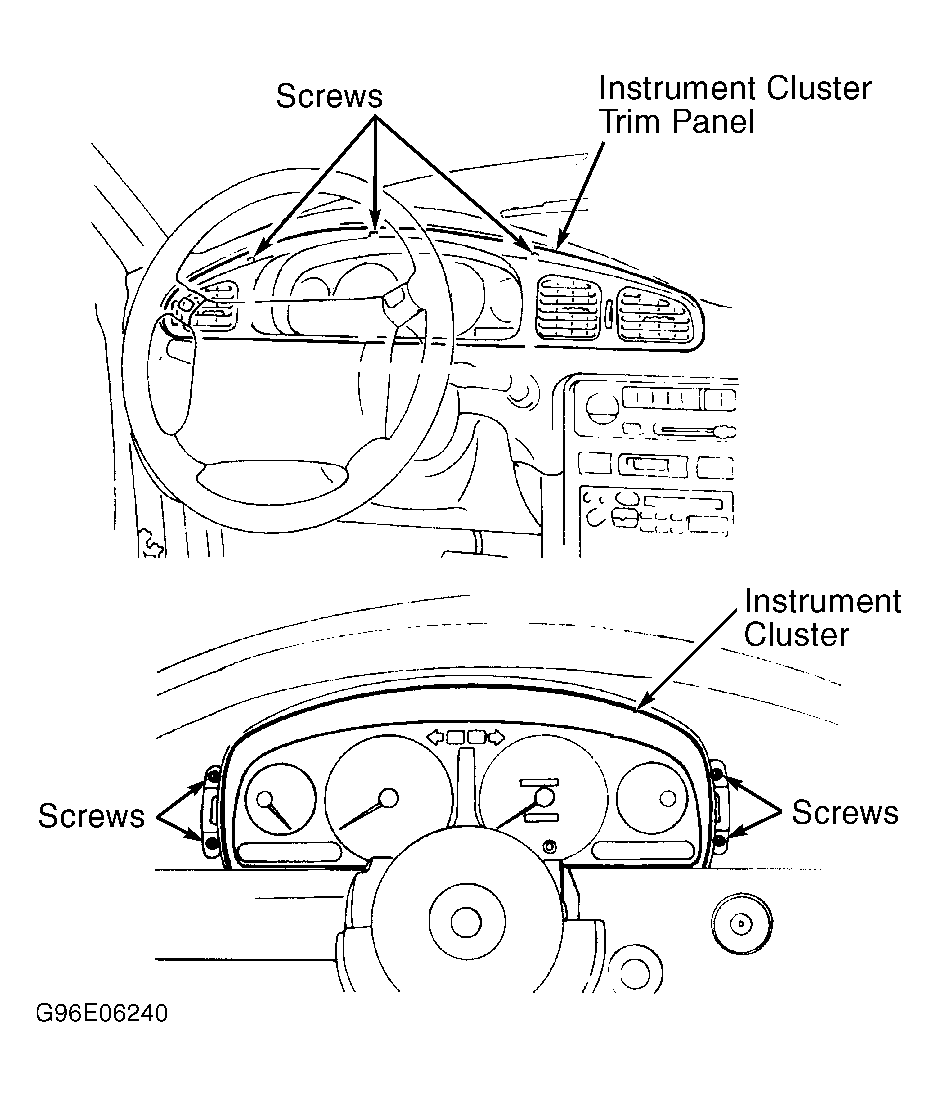

- Disconnect negative battery cable. Remove 3 screws retaining instrument cluster trim panel. See Fig 1. Remove 4 screws retaining instrument cluster.
- Carefully pull instrument cluster panel outward, and disconnect wiring connectors cable from rear of instrument cluster. Remove instrument cluster. To install, reverse removal procedure.
