Removal & Installation (Elantra & Tiburon)

1. Disconnect negative battery cable. Remove steering column upper shroud using screwdriver. See Fig 1. Remove screws retaining instrument cluster trim panel. Remove 4 screws retaining instrument cluster.
2. Carefully pull cluster out enough to disconnect harness connectors from printed circuit board. Remove instrument cluster. To install, reverse removal procedure.

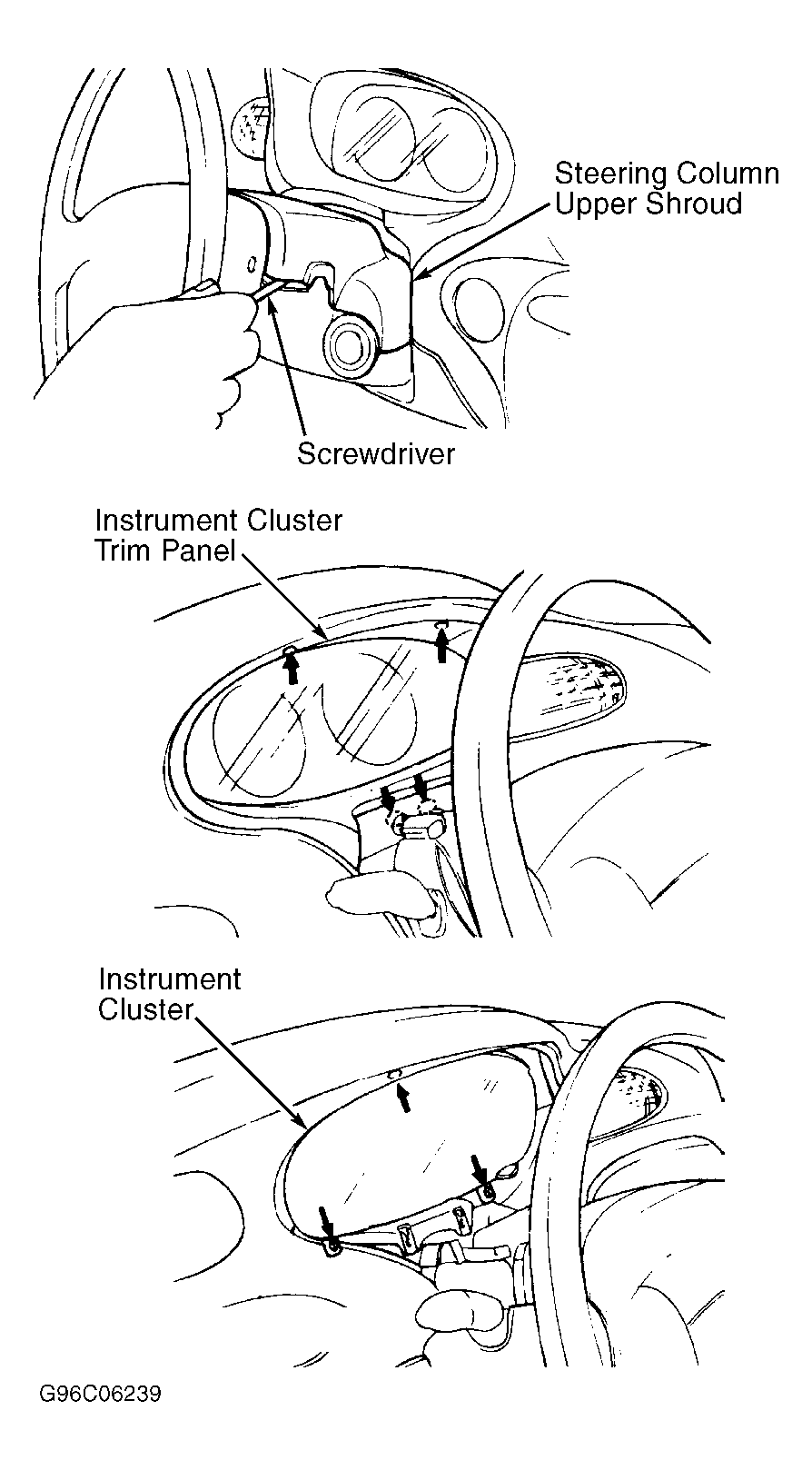

Fig 1: Removing Instrument Cluster (Elantra Shown; Tiburon Is Similar)

Courtesy of HYUNDAI MOTOR CO.
