Removal & Installation (Accent)

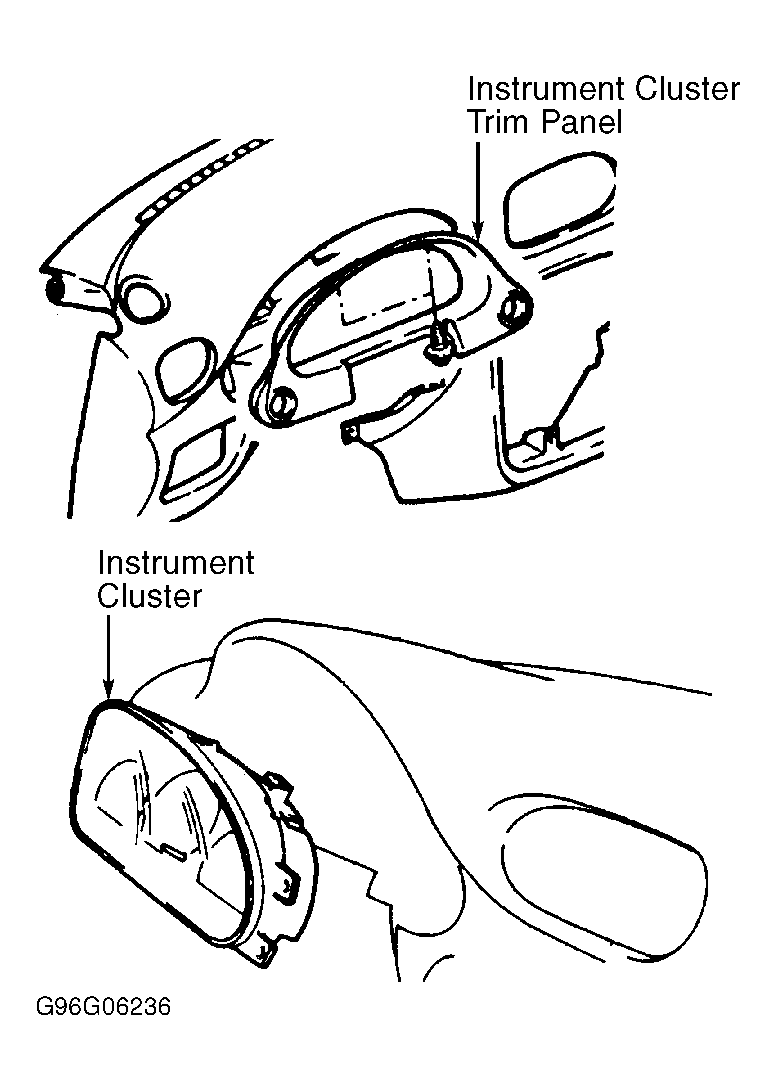

- Disconnect negative battery cable. Remove shroud undercover. Remove instrument cluster trim panel. Remove screws retaining instrument cluster. See Fig 1.
- Carefully pull cluster out enough to disengage speedometer cable and wiring connectors from printed circuit board. To install, reverse removal procedure.
