Removal & Installation (Tiburon)
- Remove covering shelf and side trim panels. Remove rear speaker grilles and rear speakers. Remove rear seat. Remove rear quarter trim panels. Remove driver's and passenger's upper seat belt mounting bolt. Remove center pillar upper trim panels.

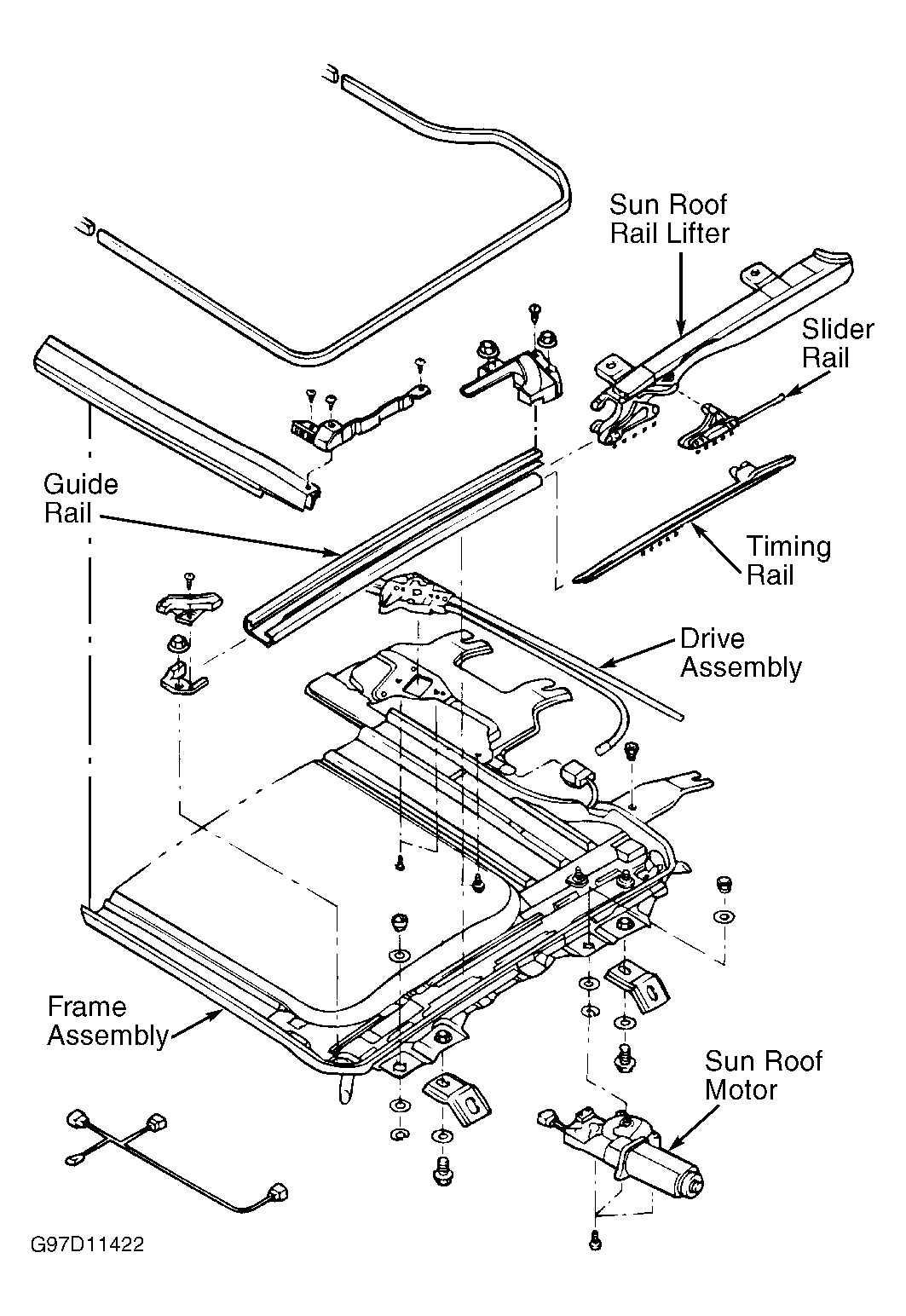

- Remove front pillar trim panels. Remove sun visors and retainers. Remove overhead console and dome light. Remove roof assist handle. Remove headliner. Disconnect drain hoses. Support sunroof assembly. Remove sunroof assembly retaining bolts. Remove sunroof assembly. To install, reverse removal procedure.
Courtesy of HYUNDAI MOTOR CO.
