Removal & Installation (Elantra)
- Remove driver's and passenger's front seat belt upper mounting bolt. Remove upper and lower center pillar trim panels. Remove front and rear pillar trim panels. Remove sun visors and retainers. Remove overhead console and dome light. Remove roof assist handle.

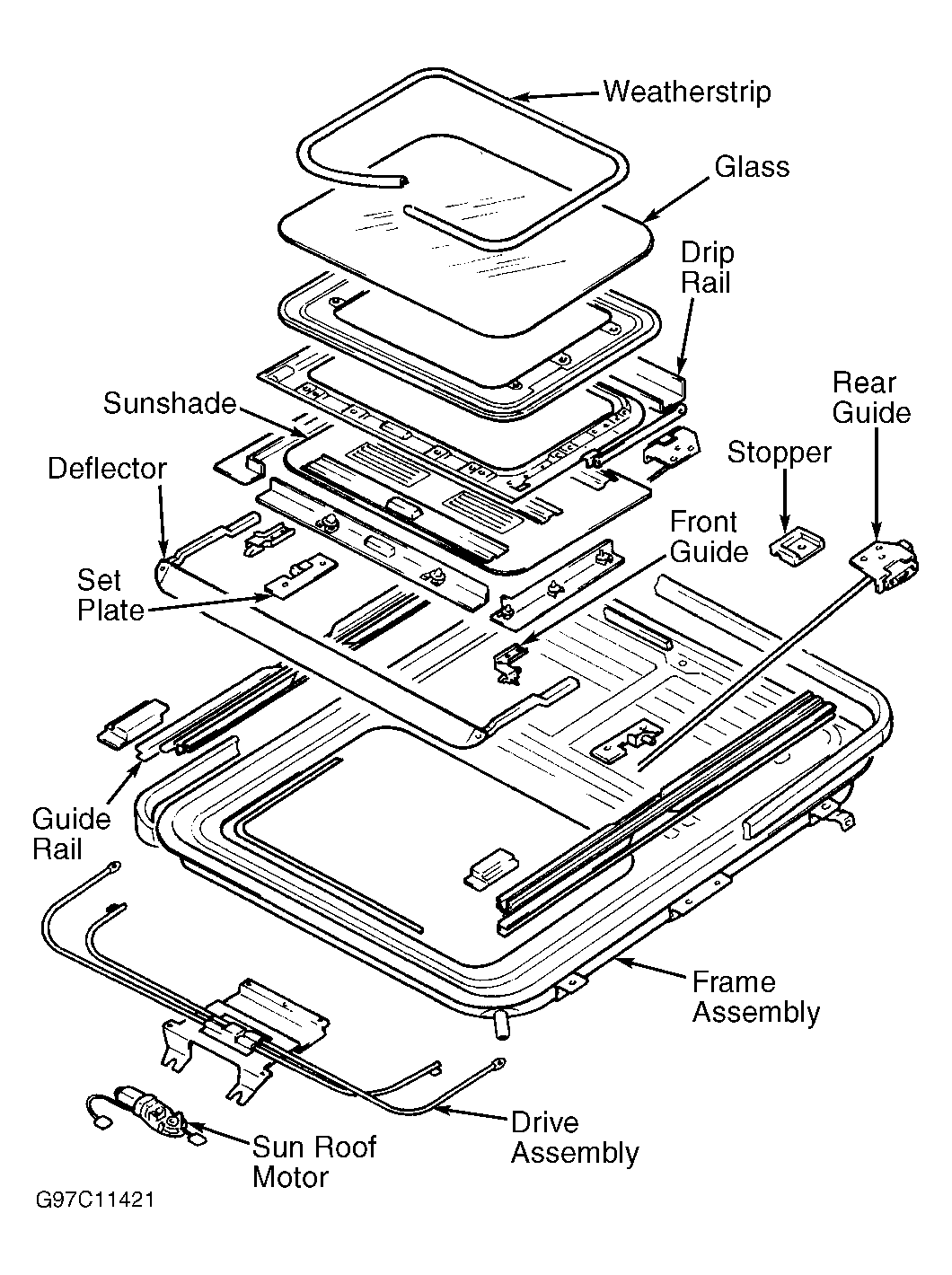

- Remove headliner. Disconnect sunroof motor connectors. Remove front and rear drain hoses. Support sunroof assembly. Remove sunroof mounting bolts and nuts. Carefully remove sunroof assembly. To install, reverse removal procedure.
Courtesy of HYUNDAI MOTOR CO.
