Glass Panel Height: Sonata

  1. Adjust glass panel height .06" (1.0 mm) higher in rear. To adjust only front section of glass panel, loosen front mounting screws. See Fig 1. Adjust as specified. Tighten mounting screws.
  2. To adjust both front and rear height, between glass panel and roof panel, loosen front and rear mounting screws. Move glass up or down from inside or outside as necessary. Tighten mounting screws.
  3. To adjust gap between glass panel and roof panel, loosen glass panel mounting nuts. Adjust gap as necessary. Tighten glass panel mounting nuts.

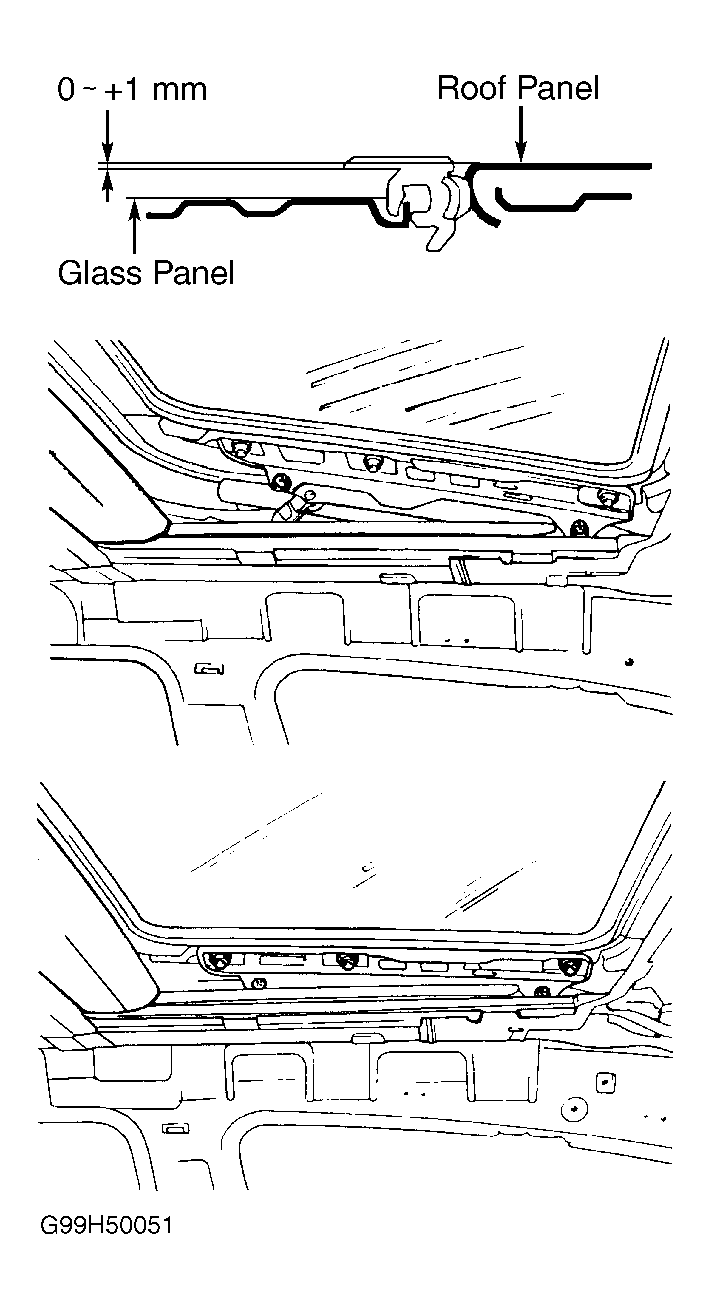

Fig 1: Identifying Sunroof Glass Panel Adjustments (Sonata)
G99H50051Courtesy of HYUNDAI MOTOR CO.
