Stopper (Tiburon)

  1. With glass fully closed, glass edge must be parallel to weatherstrip at roof section and 2 stoppers must simultaneously come into contact. Loosen 2 stopper mounting bolts. Adjust as necessary. See Fig 7. Tighten stopper catch to 85-120 INCH lbs. (9-14 N.m). Tighten glass stopper to 36-48 INCH lbs. (4-6 N.m).
  2. Close door and glass fully. Check for water leaks. Adjust as necessary. Install door trim seal and trim panel.

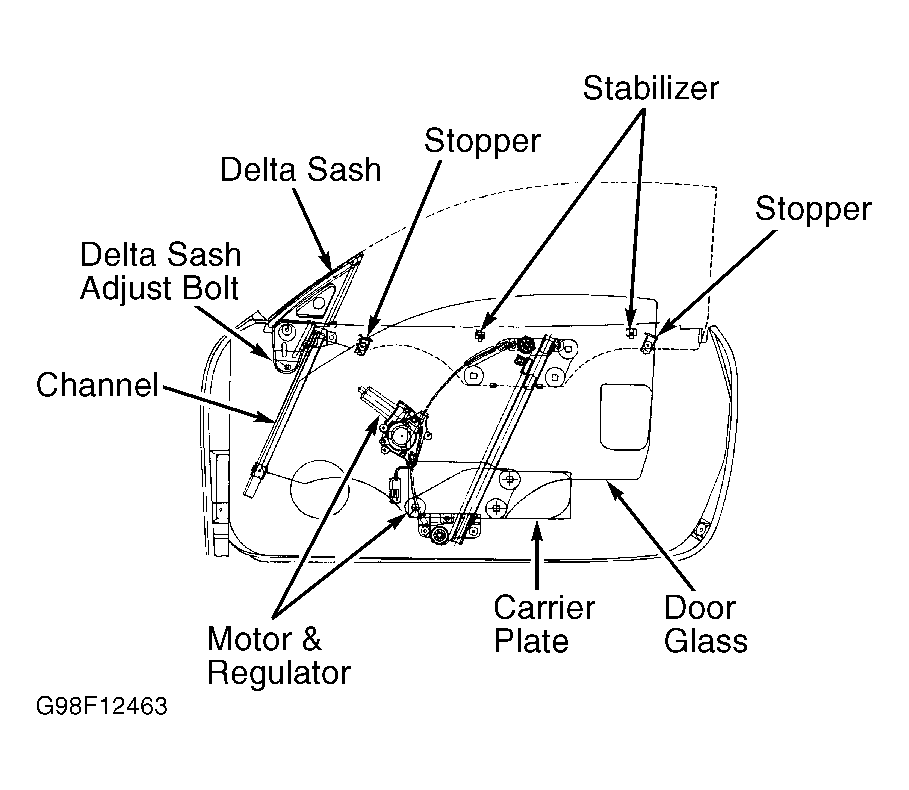

Fig 1: Identifying Power Window Components (Tiburon)
G98F12463Courtesy of HYUNDAI MOTOR CO.

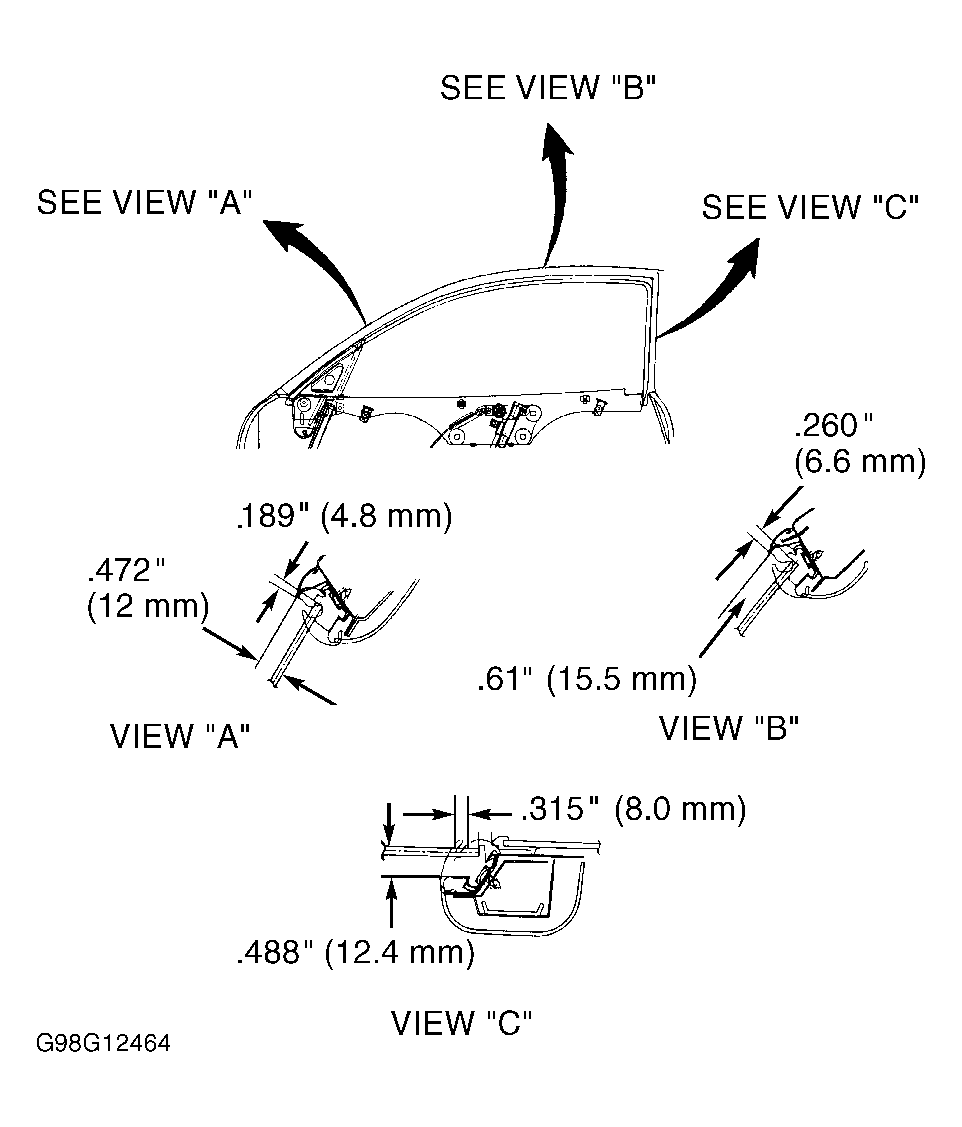

Fig 2: Identifying Power Window Adjustments (Tiburon)
G98G12464Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying Delta Sash Adjustment (Tiburon)
G98H12465Courtesy of HYUNDAI MOTOR CO.
Fig 4: Identifying Channel Adjustment (Tiburon)
G98I12466Courtesy of HYUNDAI MOTOR CO.

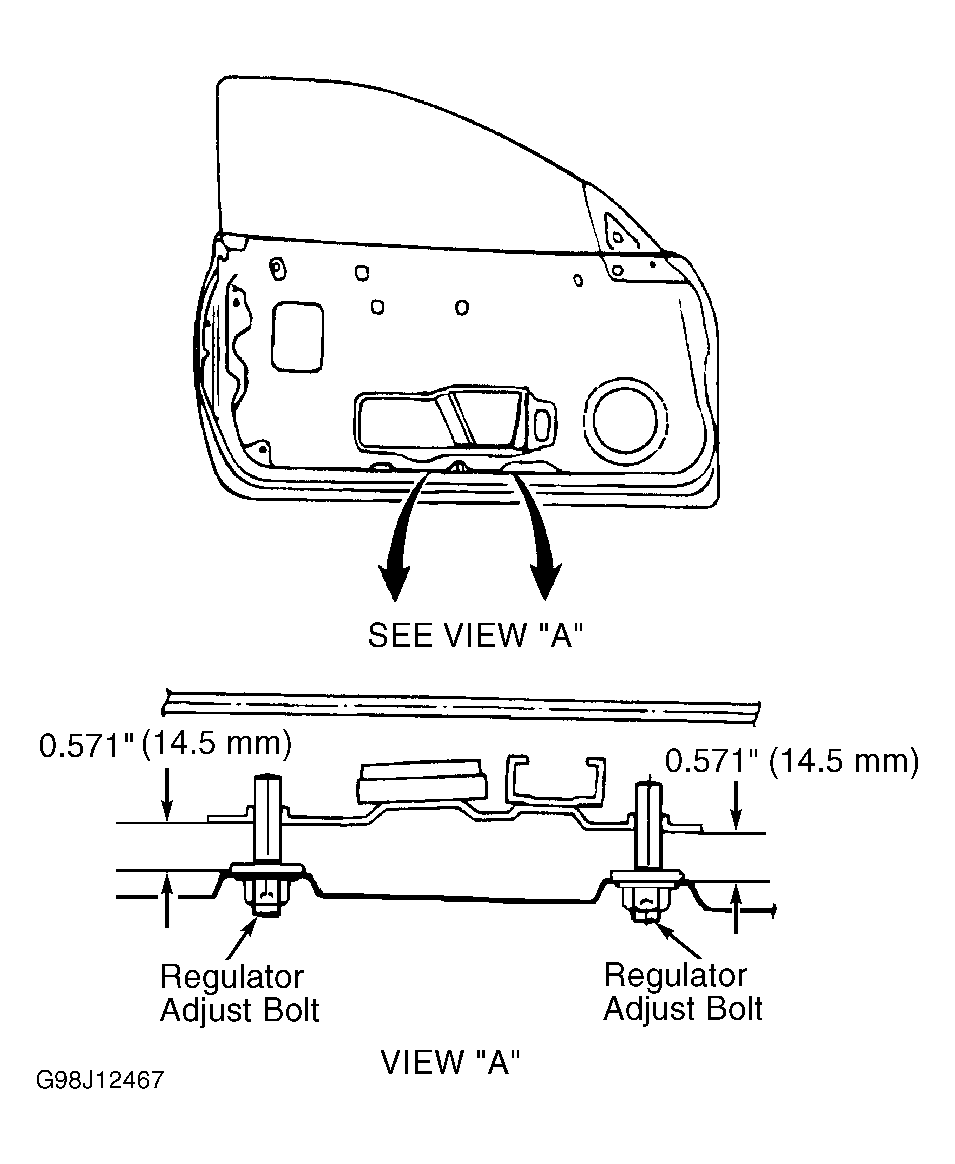

Fig 5: Identifying Regulator Adjustment (Tiburon)
G98J12467Courtesy of HYUNDAI MOTOR CO.
Fig 6: Identifying Stabilizer Adjustment (Tiburon)
G98A12468Courtesy of HYUNDAI MOTOR CO.

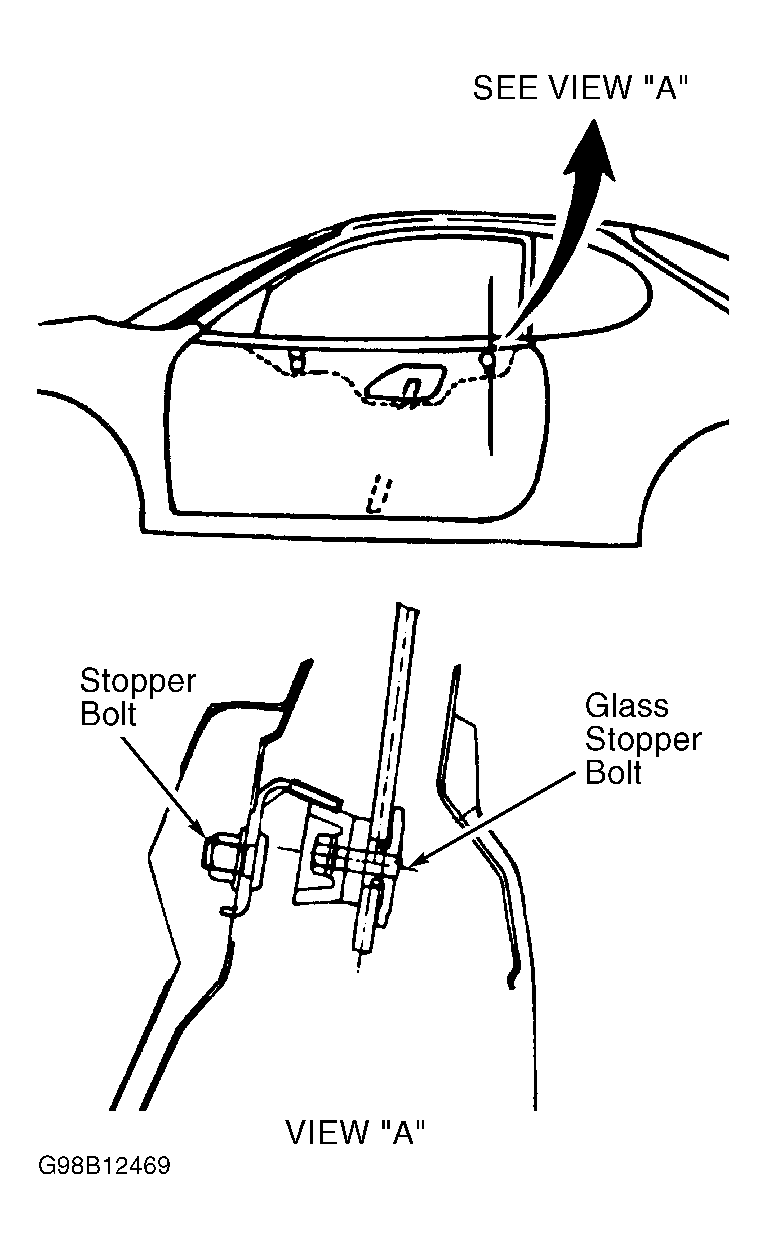

Fig 7: Identifying Glass Stopper Adjustment (Tiburon)
G98B12469Courtesy of HYUNDAI MOTOR CO.
