Instrument Cluster

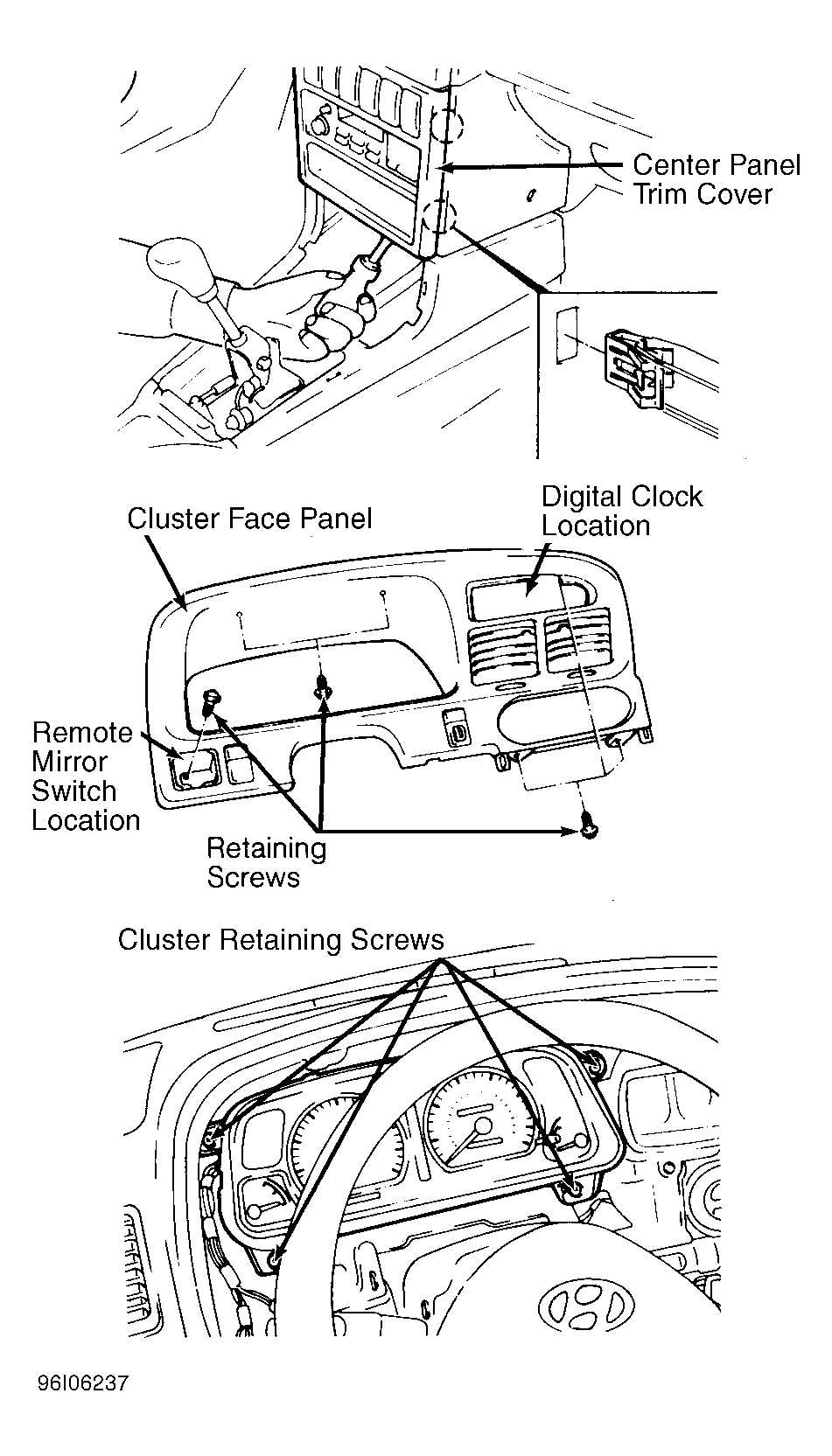

Disconnect negative battery cable. Remove ashtray. Remove center panel trim cover. SeeFig 1 . Remove digital clock and remote control mirror switch. Remove cluster face panel. Remove screws retaining instrument cluster. Carefully pull instrument cluster panel outward, and disconnect wiring connectors and speedometer cable from rear of instrument cluster. To install, reverse removal procedure.
