Instrument Cluster

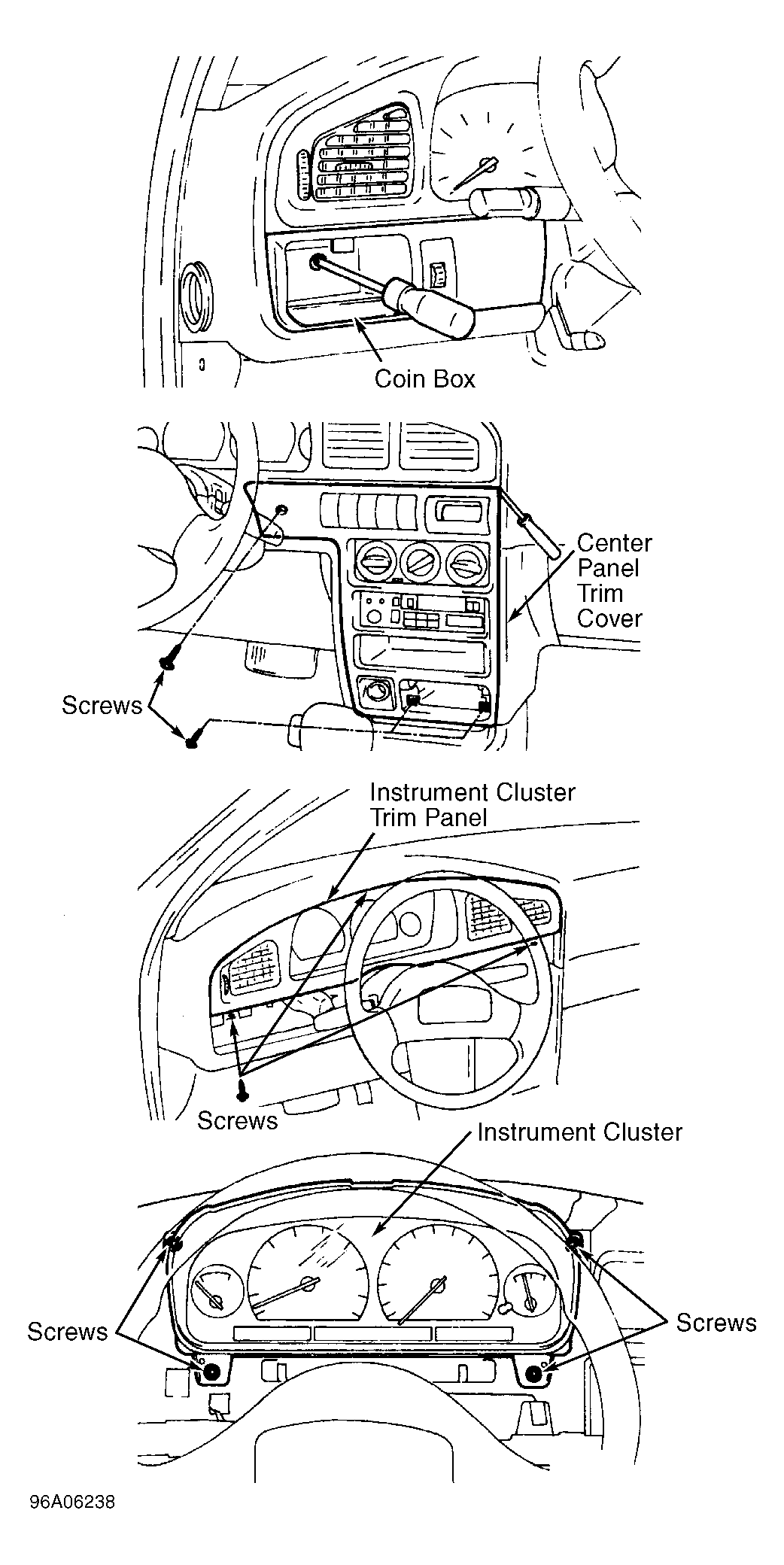

- Disconnect negative battery cable. Remove coin box. SeeFig 1 . Remove ashtray. Remove center panel trim cover, and disconnect electrical connectors. Remove 3 screws retaining instrument cluster trim panel. Remove 4 screws retaining instrument cluster.
- Carefully pull cluster out enough to disengage speedometer cable and wiring connectors from printed circuit board. To install, reverse removal procedure.
