Rear Suspension Assembly: Disassembly

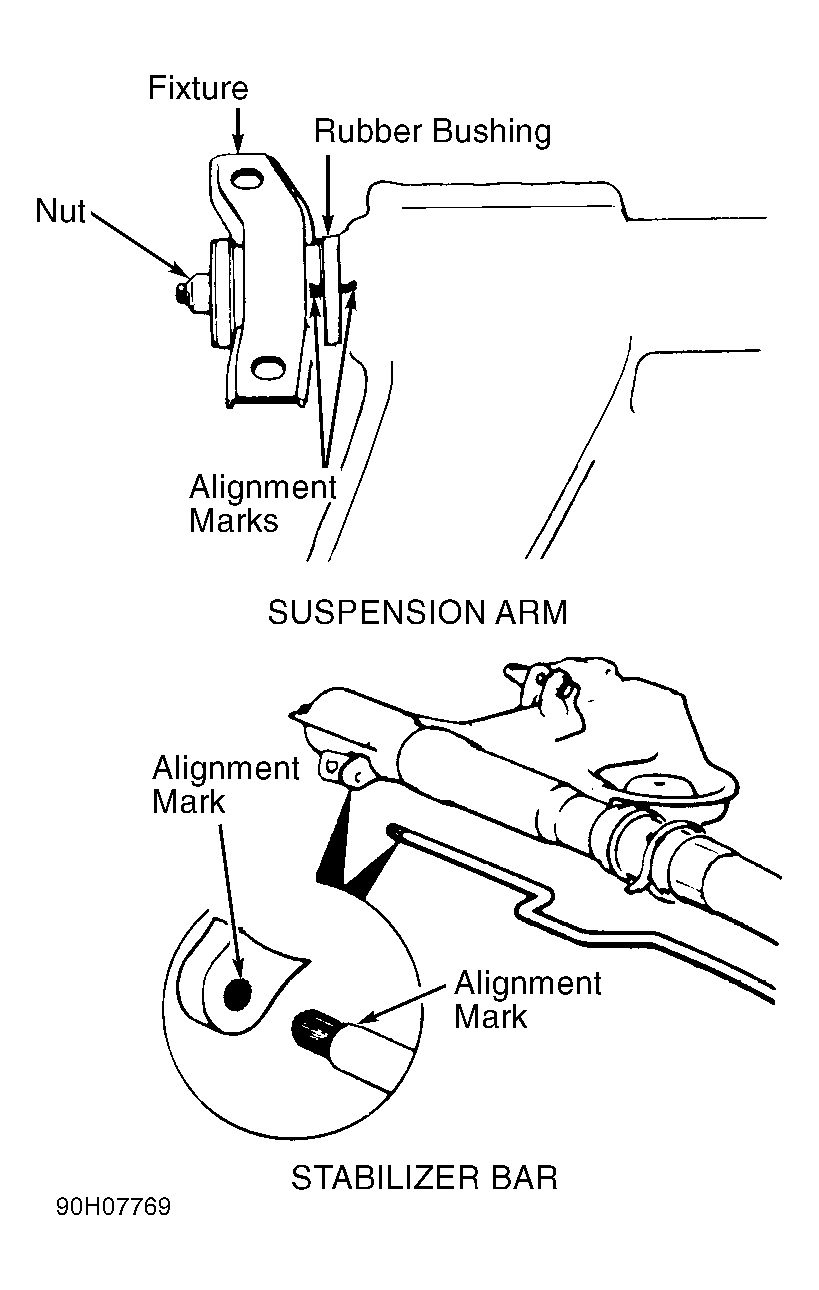

- Scribe or punch alignment marks on fixture-to-suspension arm position for reassembly reference. Scribe or punch alignment mark on stabilizer bar in alignment with punch mark on stabilizer bar bracket for reassembly reference. See Fig 1.
Courtesy of HYUNDAI MOTOR CO.
- Remove fixture retaining nuts at both ends of suspension arm. Remove fixtures and rubber bushings. Note position of rubber bushings. Remove dust cover clamp, and slide dust cover toward right side suspension arm. DO NOT damage dust cover.
- Separate suspension into right and left arms. Remove stabilizer bar. Remove rubber stoppers. Using a screwdriver and hammer, drive bushing "A" from left side suspension arm. See Figure. Drive bushing "B" from left side suspension arm.
