Wiring Diagrams

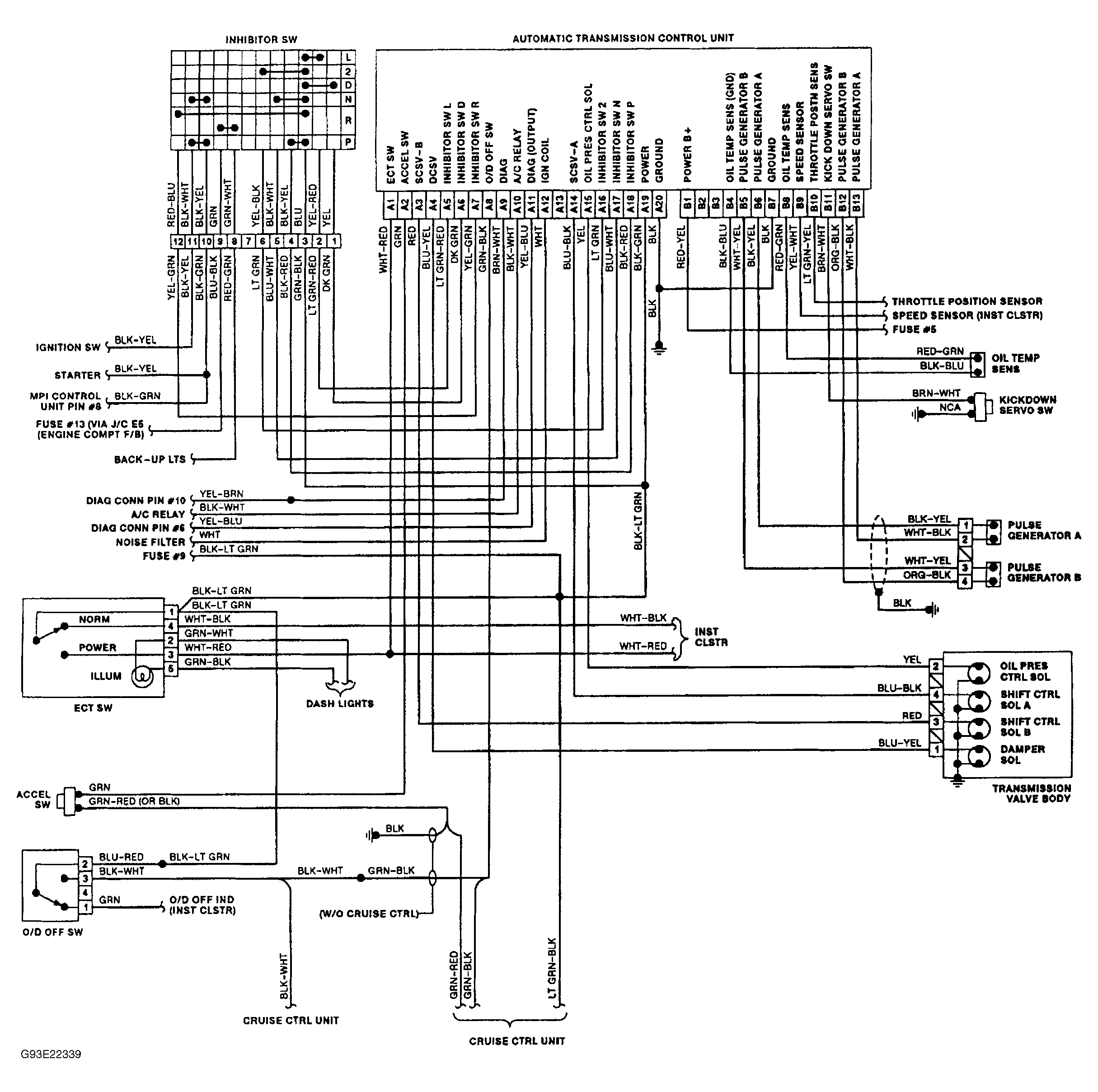

Fig 1: Transaxle Electronic Control System Wiring Diagram (1991-92 Excel & Precis)

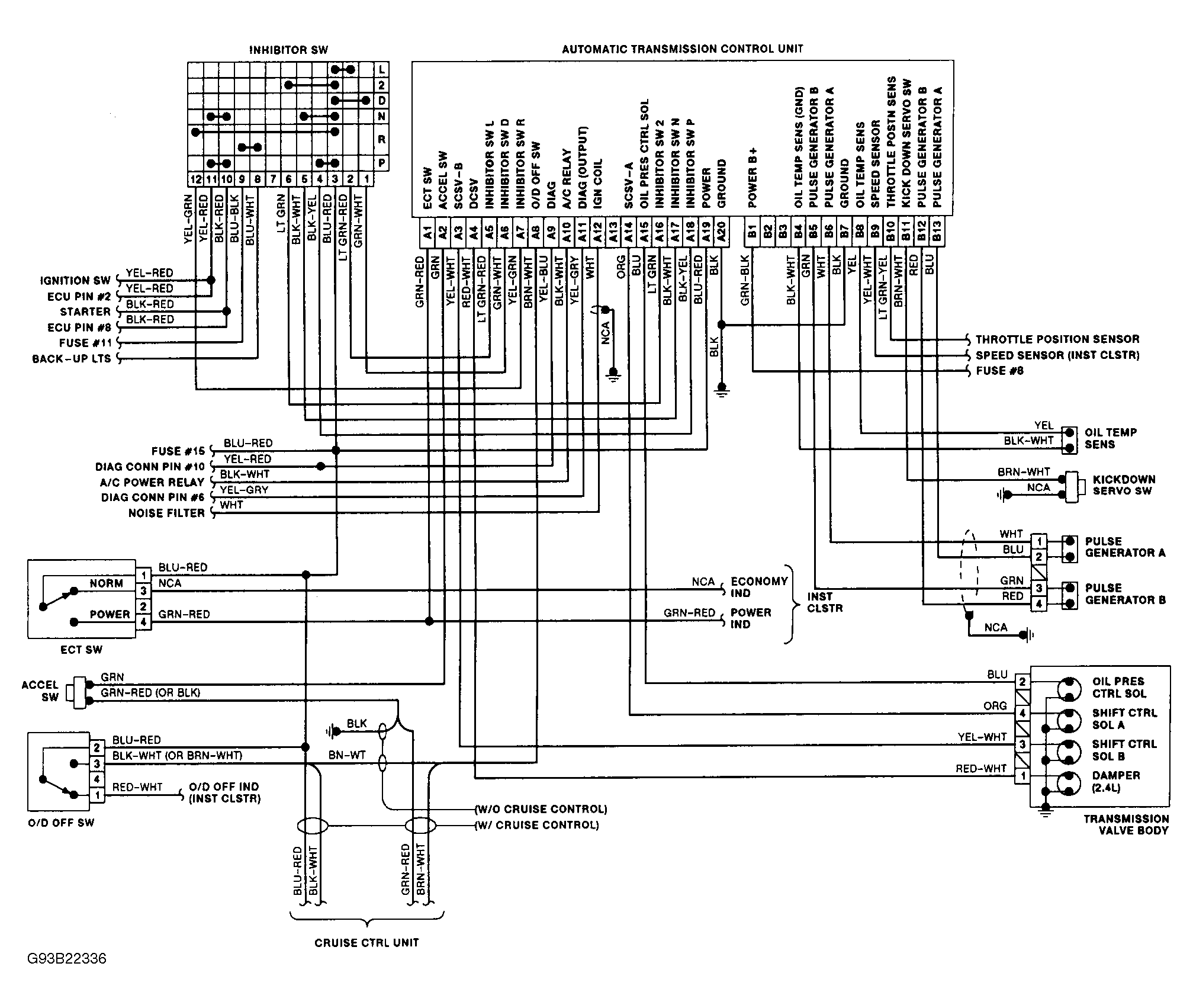

Fig 2: Transaxle Electronic Control System Wiring Diagram (1991 Scoupe)

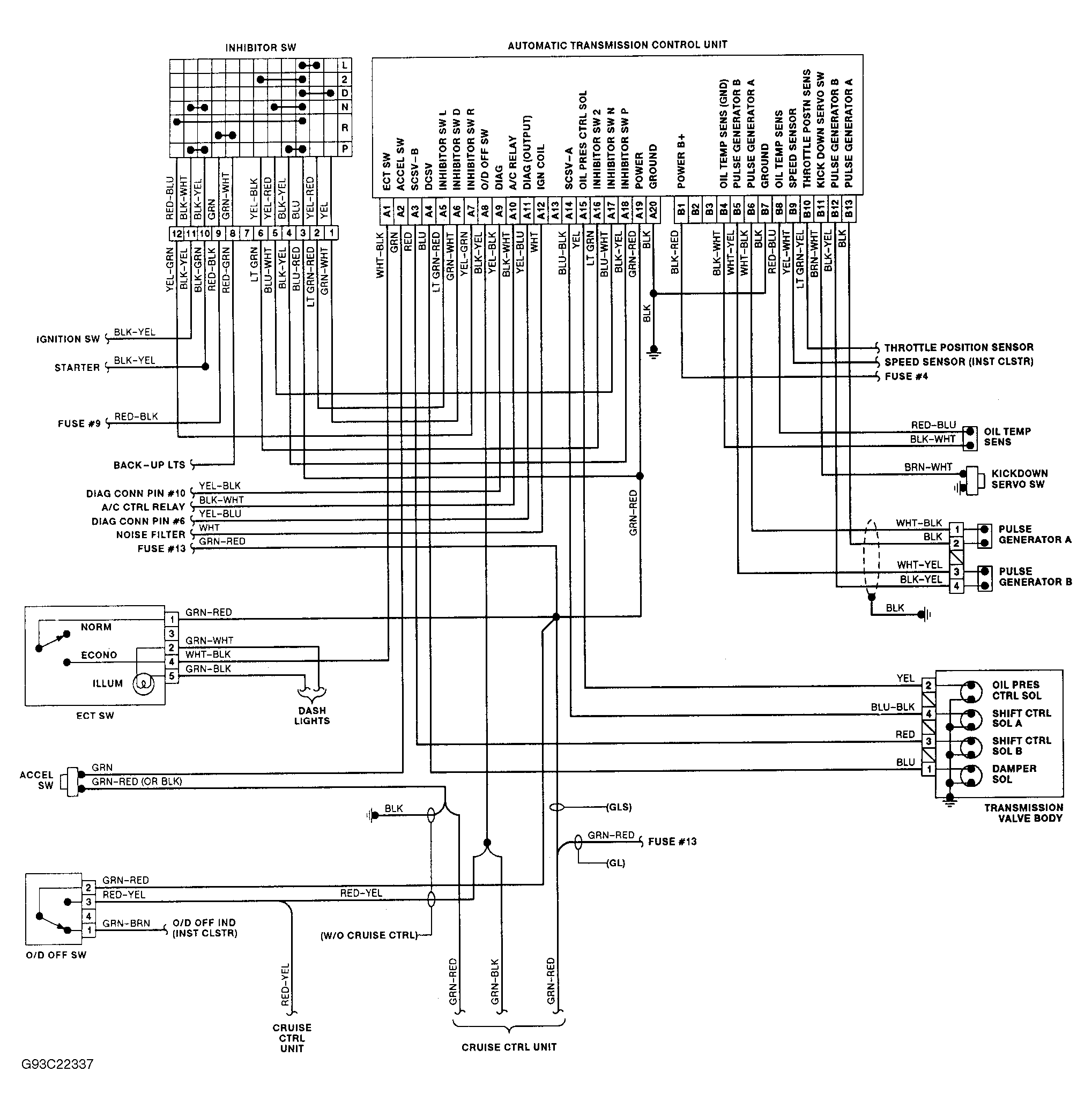

Fig 3: Transaxle Electronic Control System Wiring Diagram (1991 Sonata)

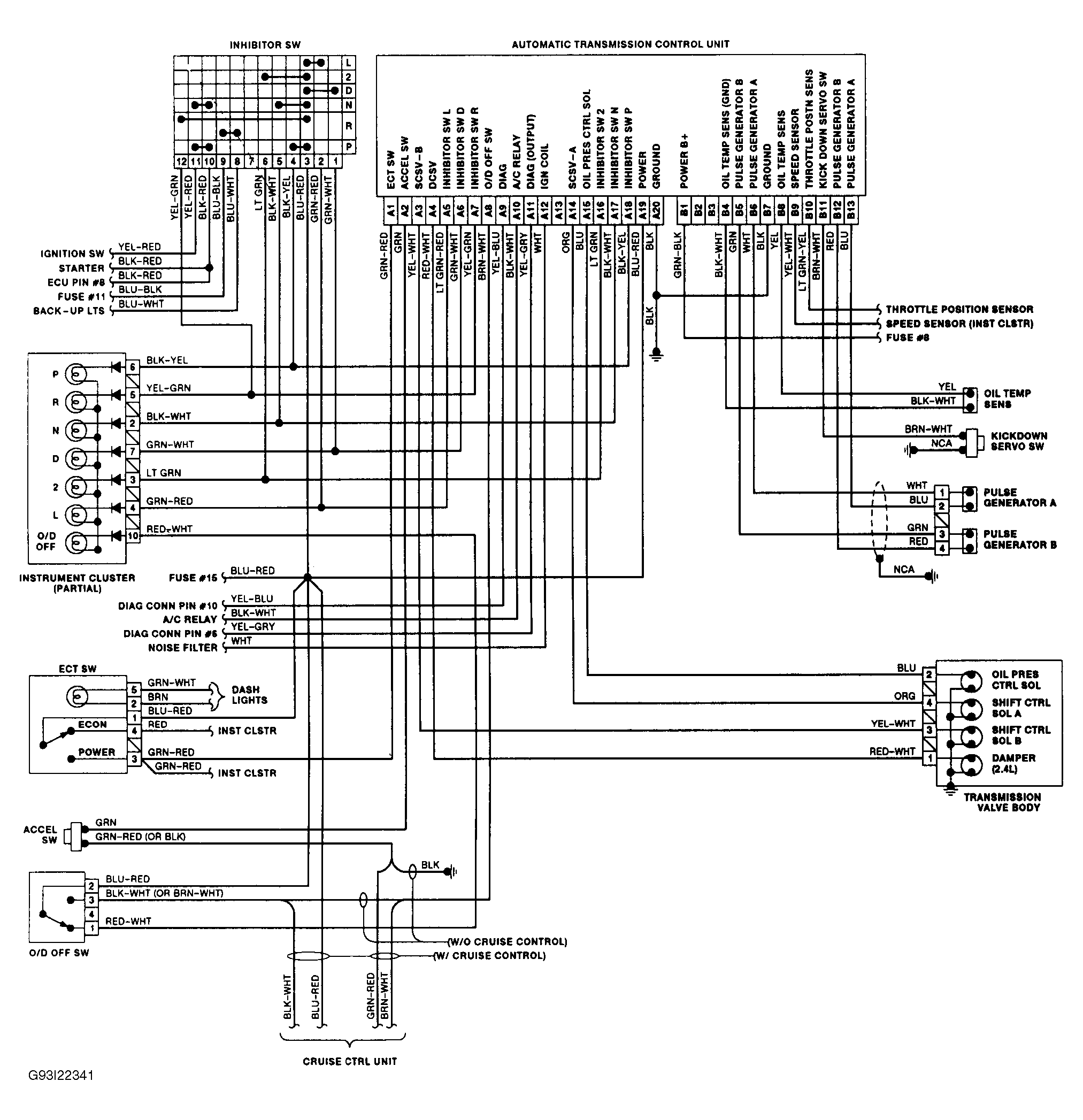

Fig 4: Transaxle Electronic Control System Wiring Diagram (1992 Elantra)

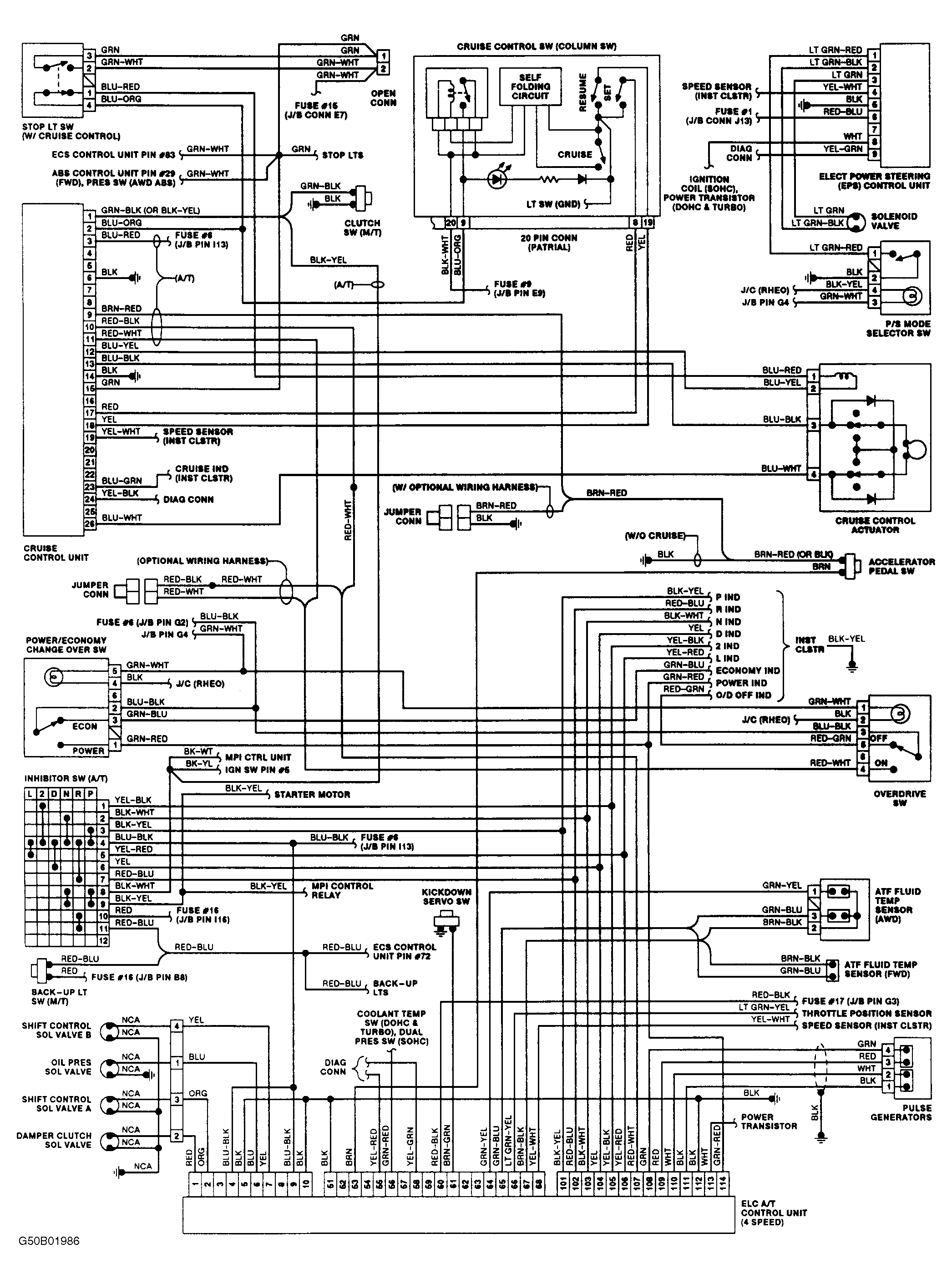

Fig 5: Transaxle Electronic Control System Wiring Diagram (1992 Scoupe)

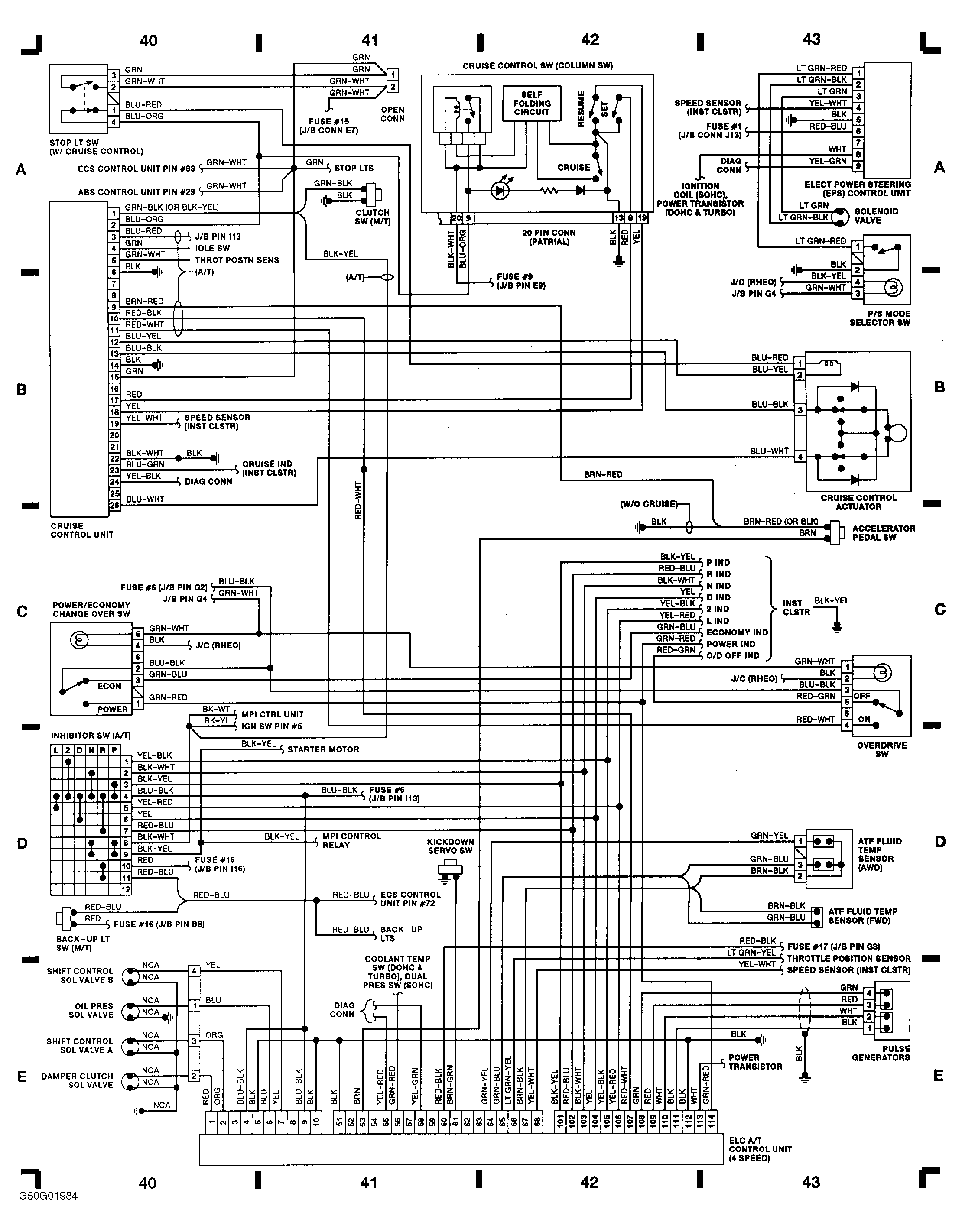

Fig 6: Transaxle Electronic Control System Wiring Diagram (1992 Sonata)

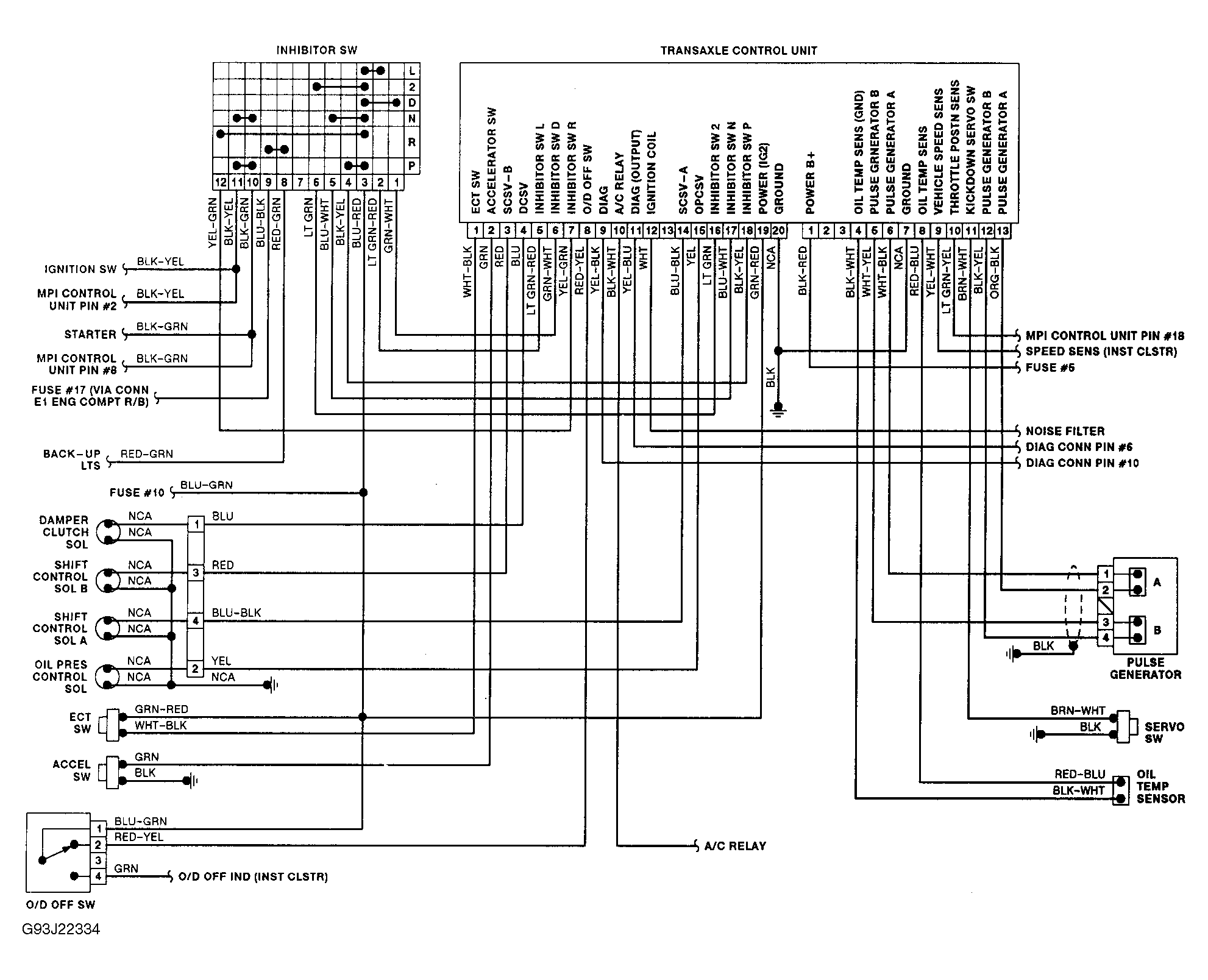

Fig 7: Transaxle Electronic Control System Wiring Diagram (1991 Galant)

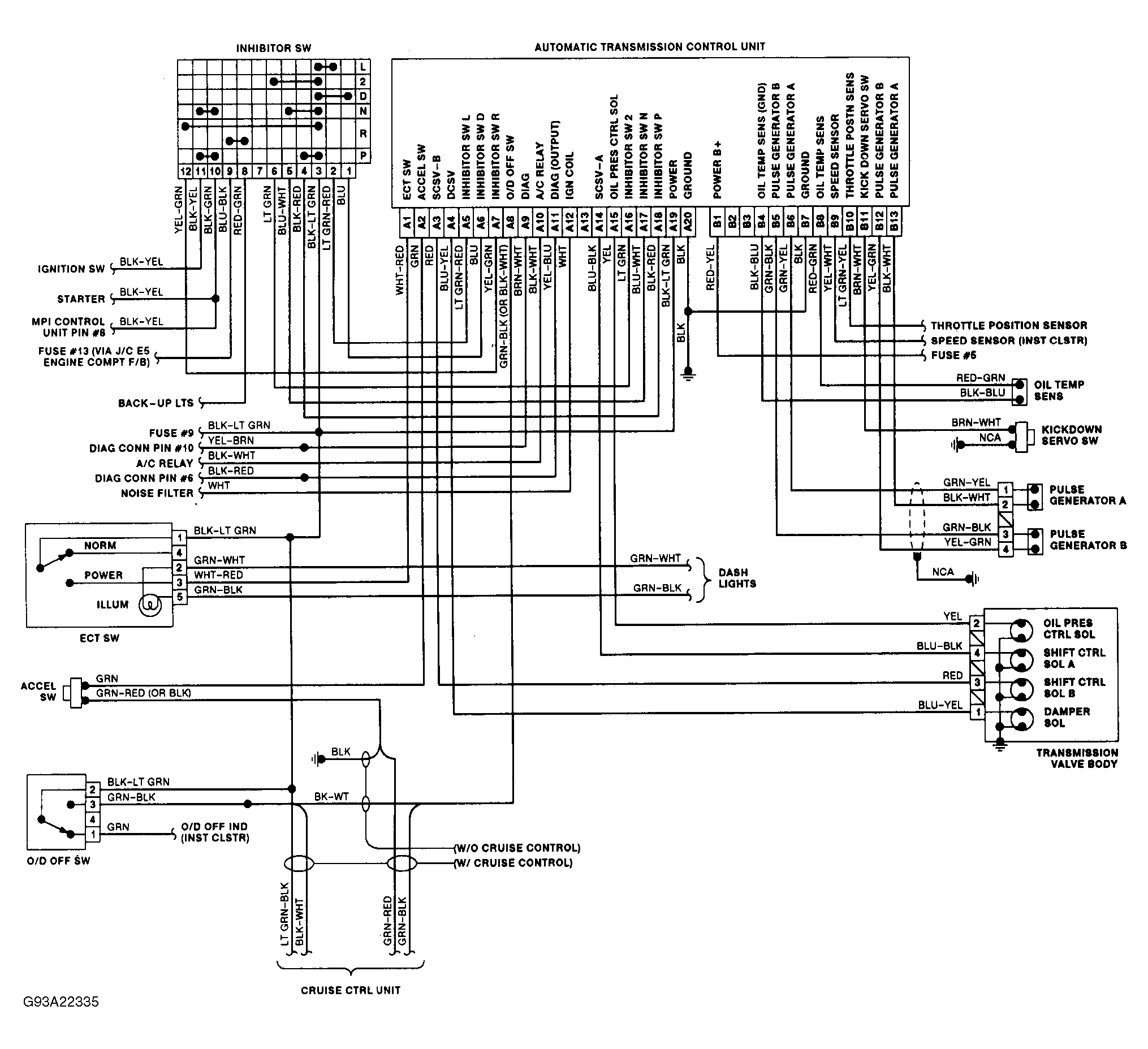

Fig 8: Transaxle Electronic Control System Wiring Diagram (1992 Galant)
