Hydraulic Pressure Test

NOTE: Ensure transaxle fluid level is correct, control cable is adjusted and transaxle is at normal operating temperature. Connect tachometer, and raise vehicle on hoist so front wheels are off ground.

Connect pressure gauges to ports of unit being tested. See Fig 1 . Perform pressure tests as indicated. See Fig 2 .

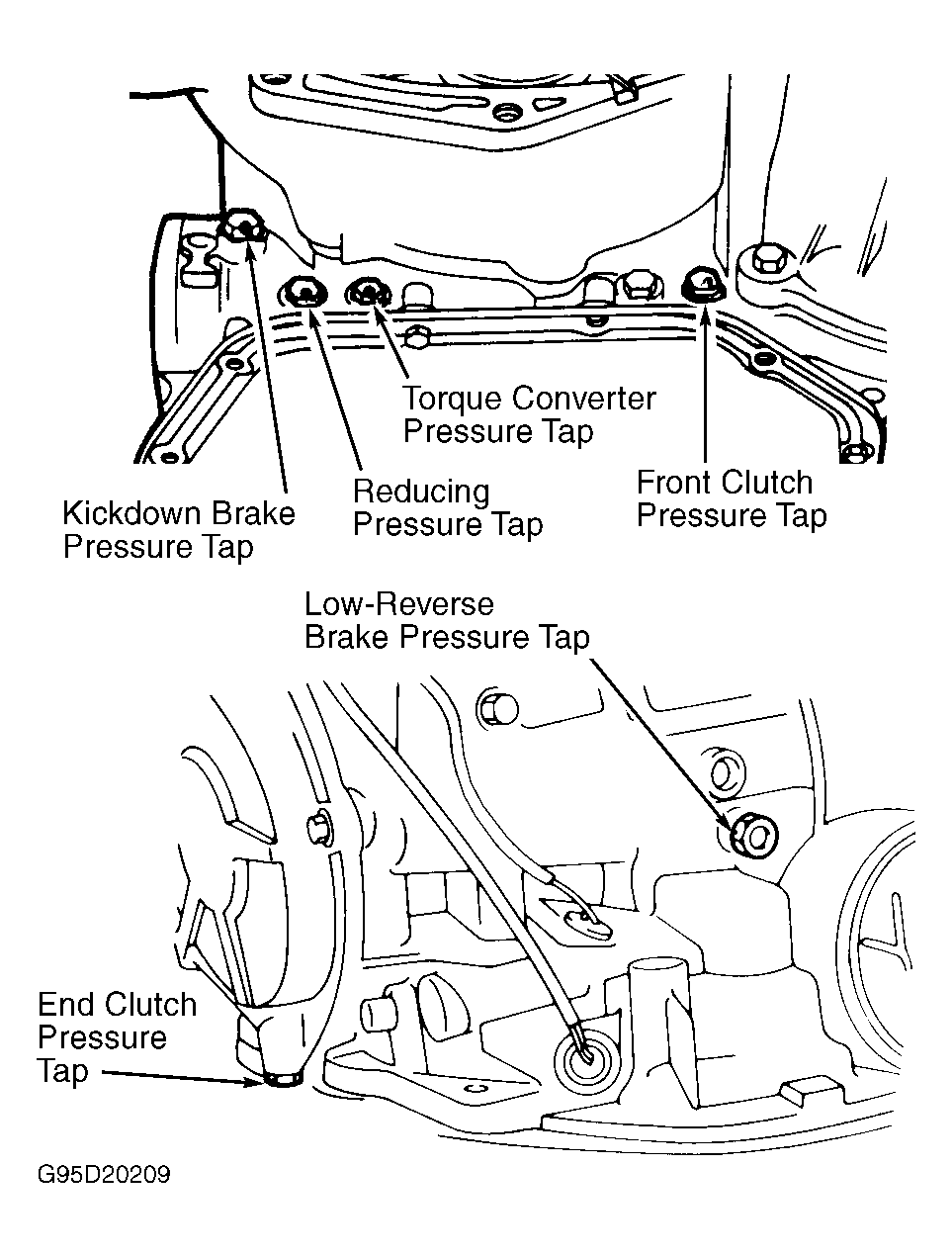

Fig 1: Identifying Transaxle Pressure Taps

Courtesy of HYUNDAI MOTOR CO.

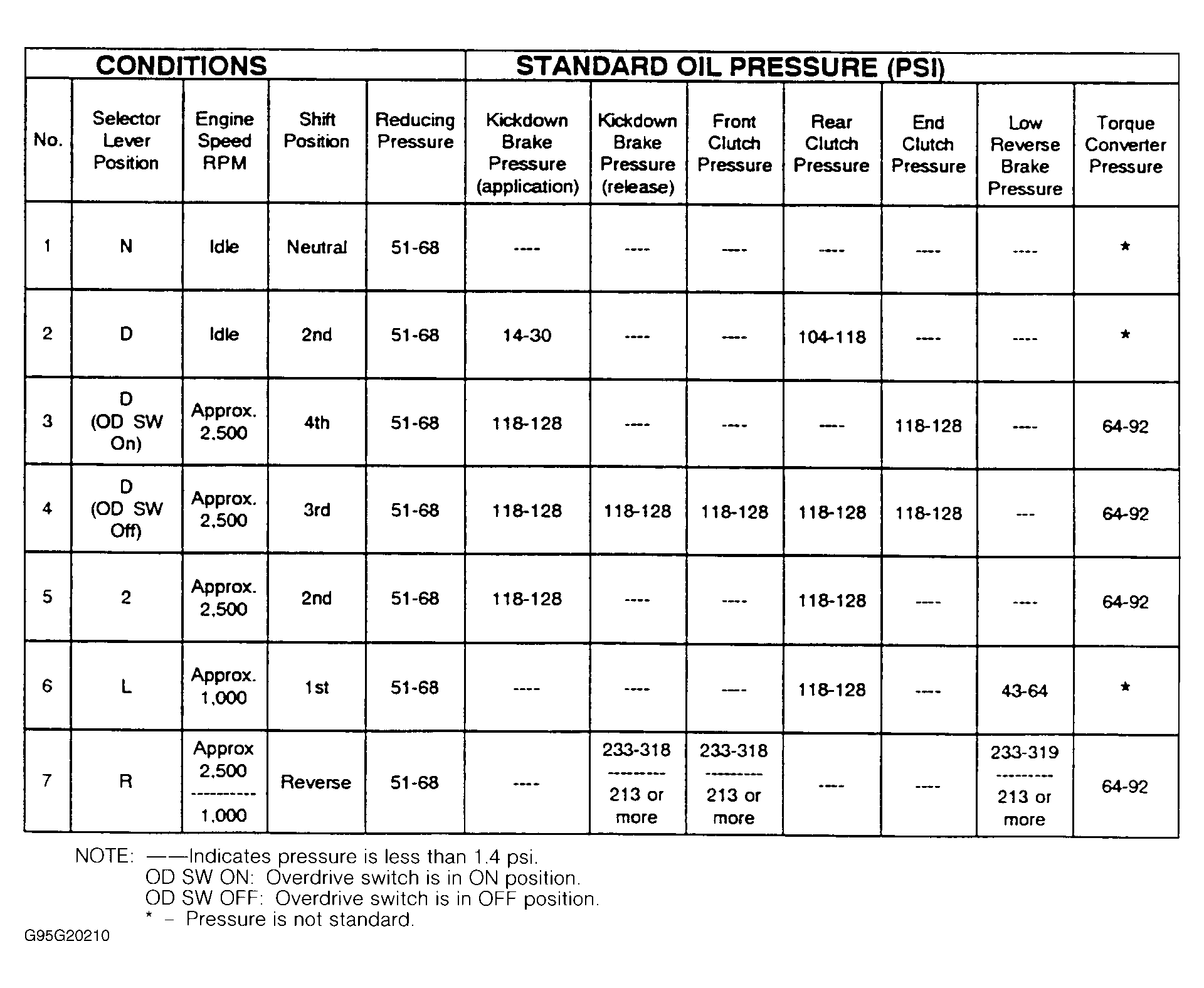

Fig 2: Hydraulic Pressure Test Specifications

Courtesy of HYUNDAI MOTOR CO.
