Rear Brake Shoes: Removal

Raise and support vehicle. Remove brake drum. Remove automatic adjuster spring and automatic adjuster lever. See Fig 1 and Fig 2 . Spread shoes and remove adjuster strut. Remove shoe-to-shoe spring and front shoe hold-down spring. Remove front shoe. Remove rear shoe hold-down spring and parking cable clip at shoe. Remove shoe.

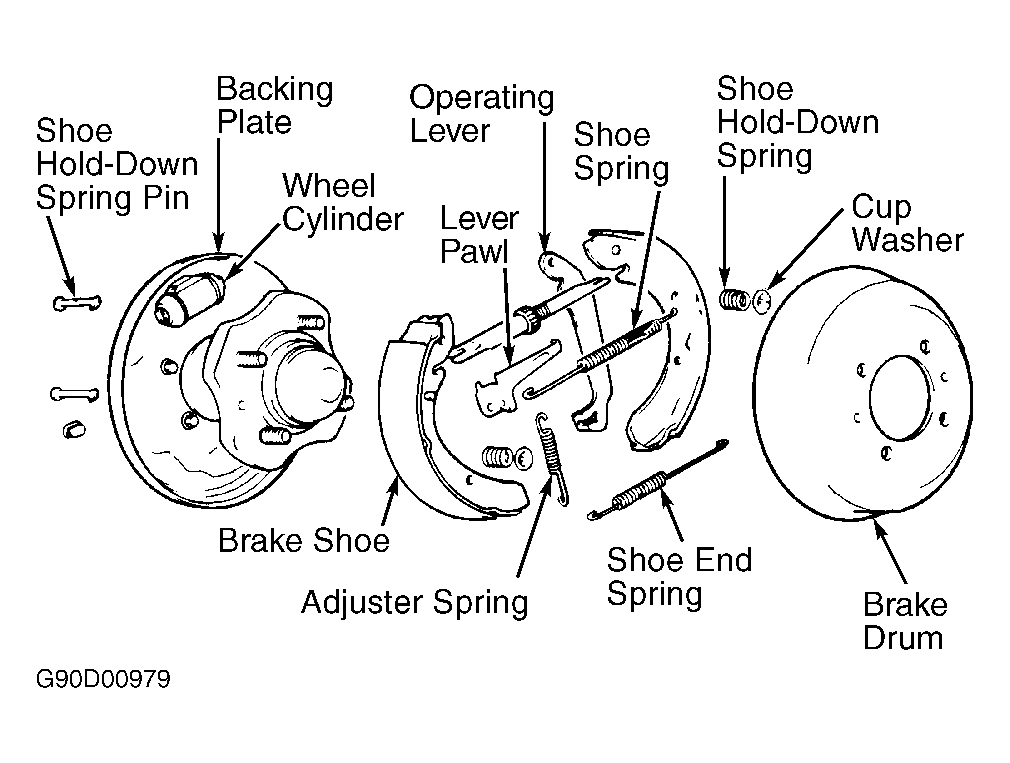

Fig 1: Exploded View of Rear Drum Brake System (Bendix Type)

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Exploded View of Rear Drum Brake System (Mando Type)

Courtesy of HYUNDAI MOTOR CO.
