Front Disc Brake Rotor: Installation

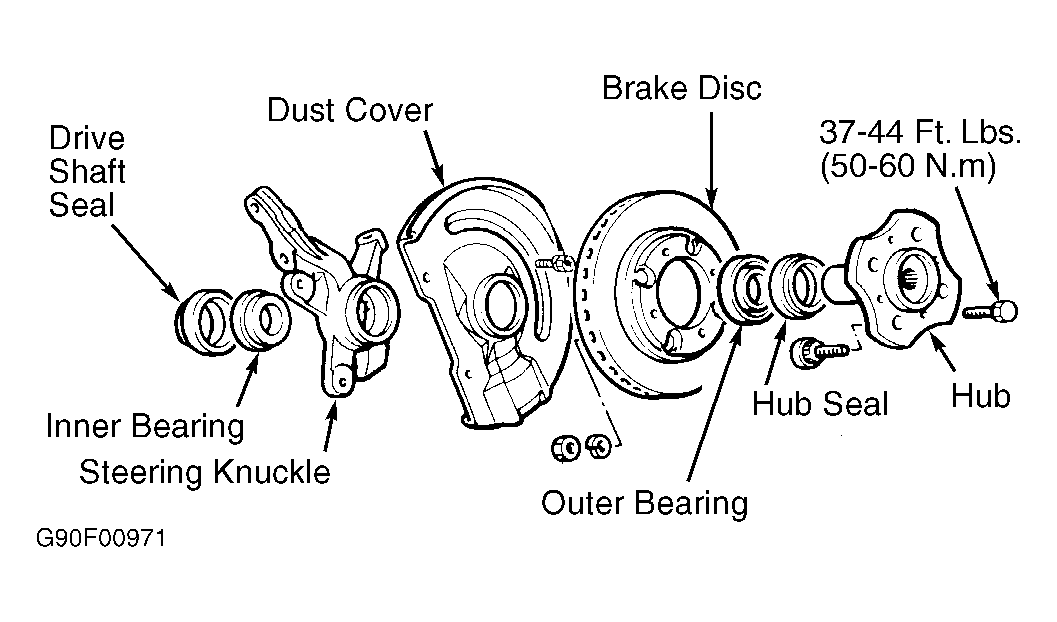

Install rotor on hub. See Fig 1 . Tighten bolts to specification. Press hub into knuckle. Install new inner oil seal. Slide drive shaft into position. Install knuckle assembly by reversing removal procedures. See TORQUE SPECIFICATIONS .
