Master Cylinder: Reassembly

To reassemble, reverse disassembly procedure. Before reassembly, apply brake caliper lubricant or brake fluid to all parts (except boots). Ensure that return port is not blocked by piston cup when piston is at return position.

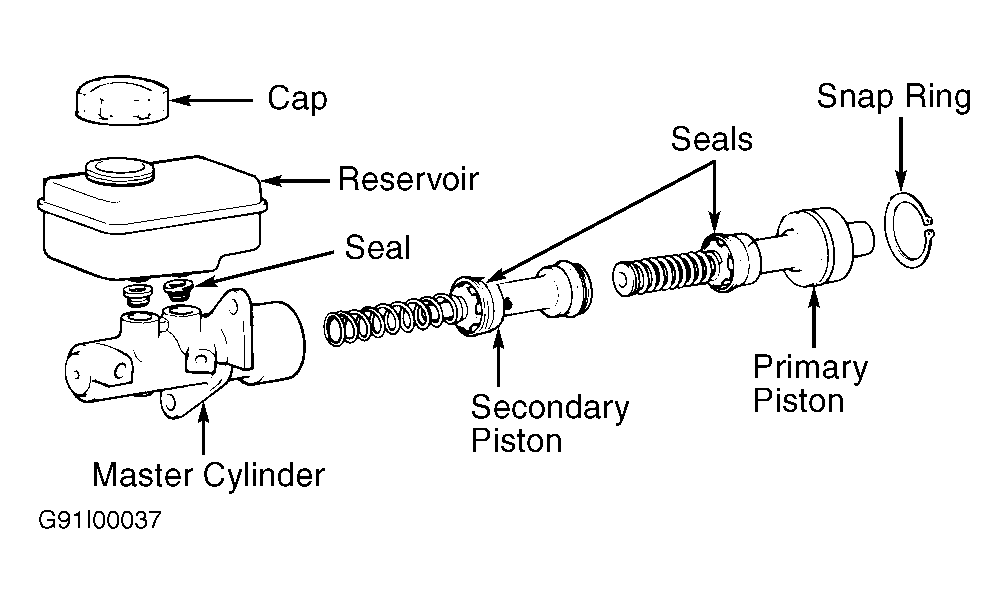

Fig 1: Exploded View of Master Cylinder (Excel)

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Exploded View of Master Cylinder (Scoupe)

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Exploded View of Master Cylinder (Sonata)

Courtesy of HYUNDAI MOTOR CO.
