Removal & Installation (Sonata)

Disconnect negative battery cable. Remove 4 retaining screws and pull instrument cluster panel outward. See Fig 1 . Disconnect wiring connectors and speedometer cable from rear of instrument cluster.

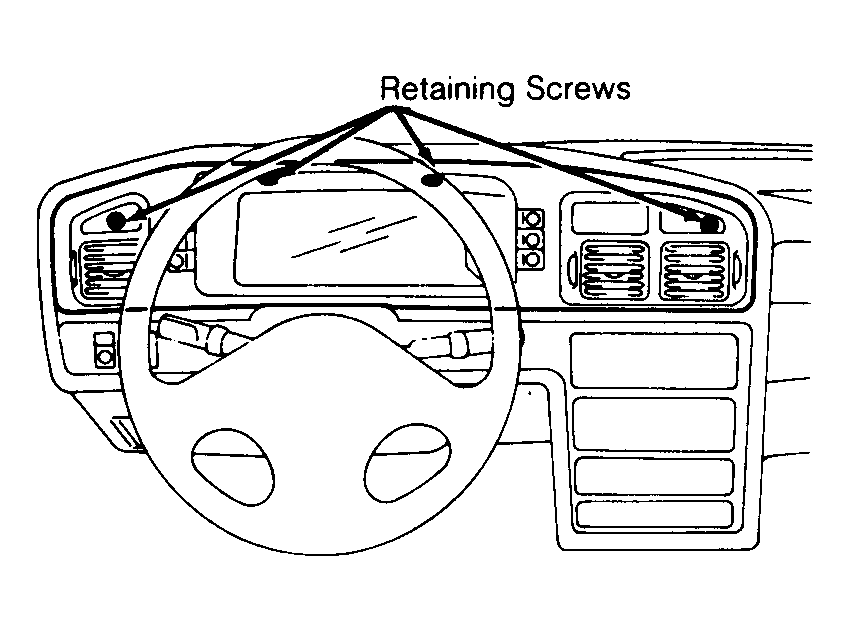

Fig 1: Removing Instrument Cluster Panel (Sonata)
Courtesy of HYUNDAI MOTOR CO.
Remove instrument cluster from rear of panel by removing 4 cluster retaining screws. Remove cluster lens by unsnapping from rear case. See Fig 2 . To install, reverse removal procedure.

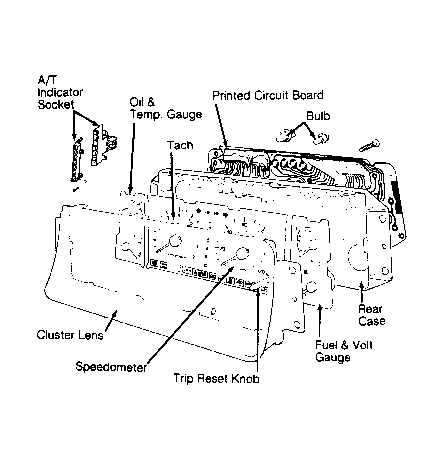

Fig 2: Exploded View of Instrument Cluster (Sonata)

Courtesy of HYUNDAI MOTOR CO.
