Removal & Installation (Scoupe)

Disconnect negative battery cable. Remove ashtray. Remove 3 retaining screws above ashtray and remove center face panel. See Fig 1 . Remove digital clock assembly and remote mirror switch by prying units out from panel.

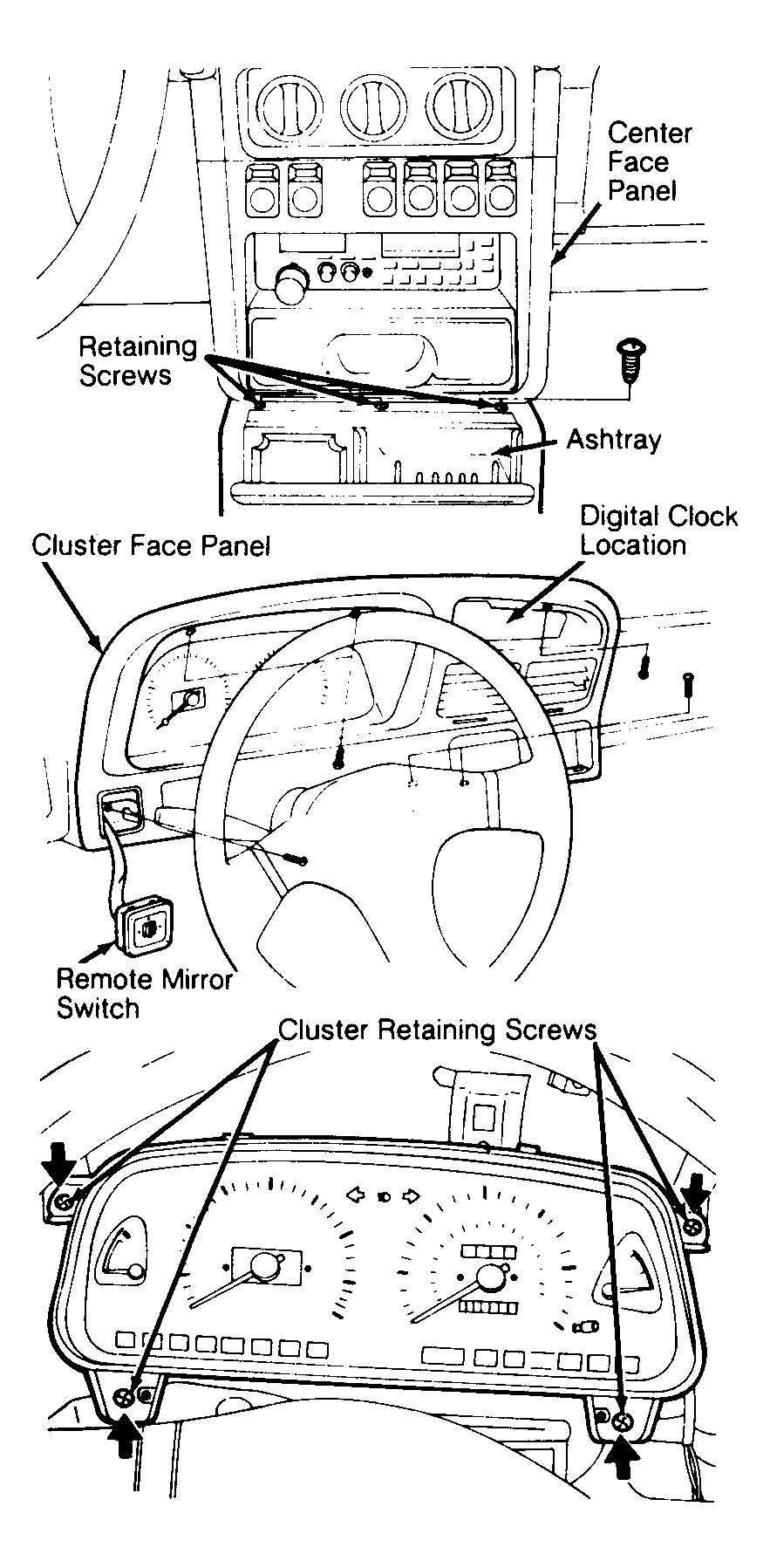

Fig 1: Removing Instrument Cluster (Scoupe)
Courtesy of HYUNDAI MOTOR CO.
Remove cluster face panel by removing 7 retaining screws. Remove instrument cluster 4 retaining screws. Pull cluster outward, unplug harness connectors and remove cluster. To install, reverse removal procedure.

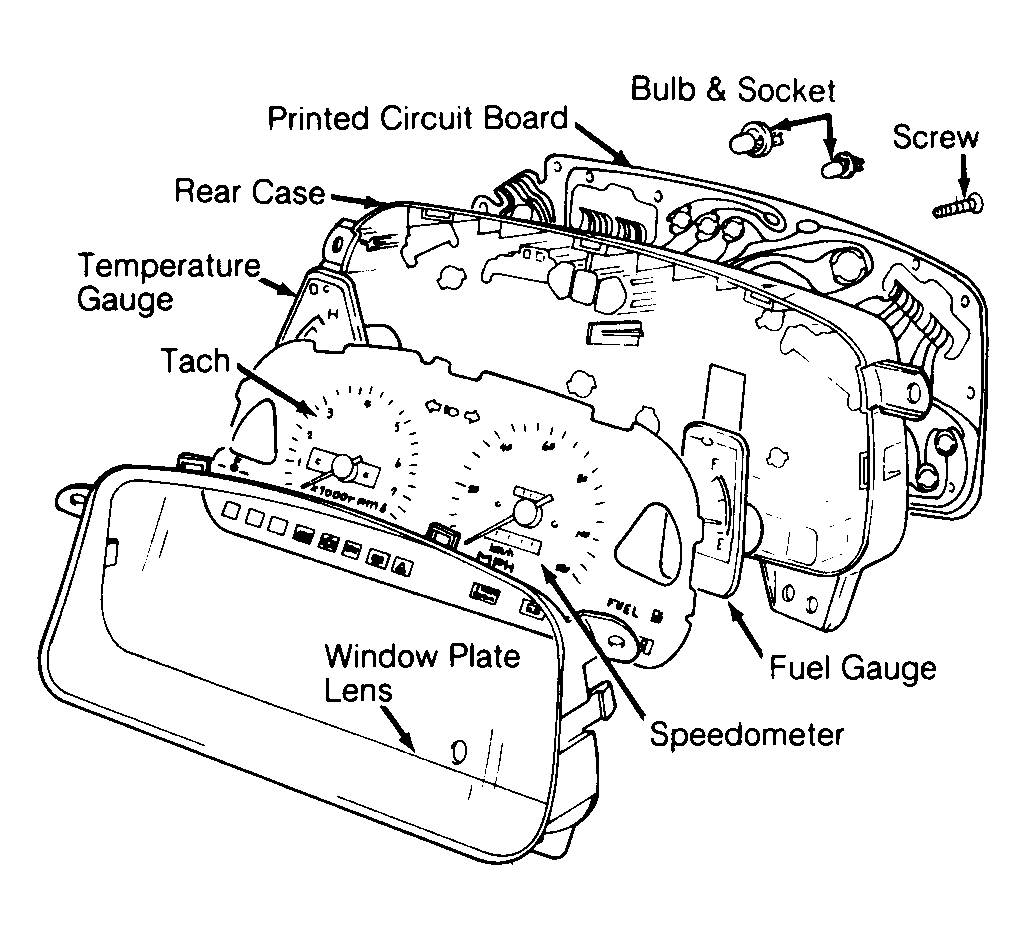

Fig 2: Exploded View of Instrument Cluster (Scoupe)

Courtesy of HYUNDAI MOTOR CO.
