Removal & Installation (Excel)

  1. Disconnect negative battery cable. Remove instrument panel face by removing 3 retaining screws. See Fig 1 . Remove 4 screws retaining instrument cluster.

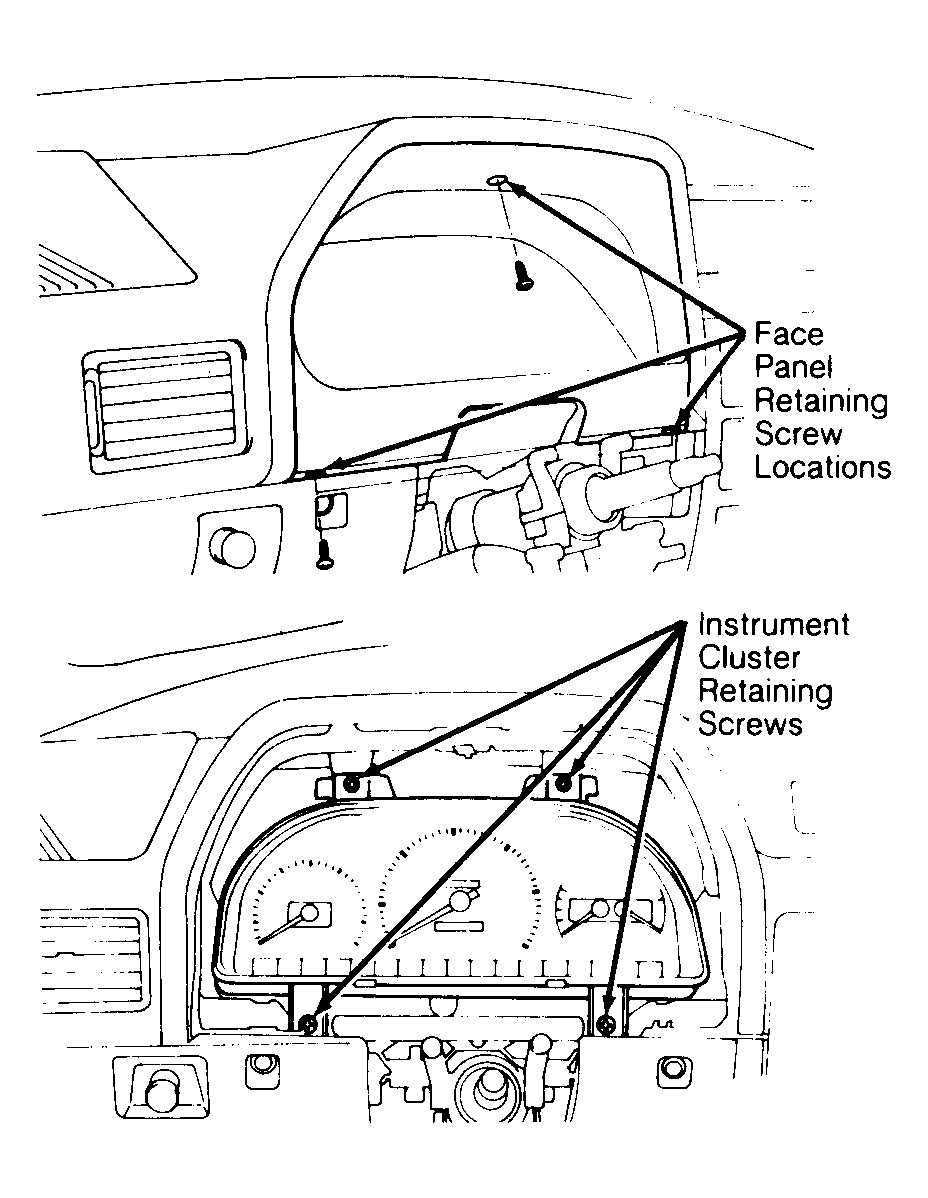

    Fig 1: Removing Instrument Cluster (Excel)
    G92B00266Courtesy of HYUNDAI MOTOR CO.
  2. Carefully pull cluster out enough to disengage speedometer cable and wiring connectors from printed circuit board. To install, reverse removal procedure.

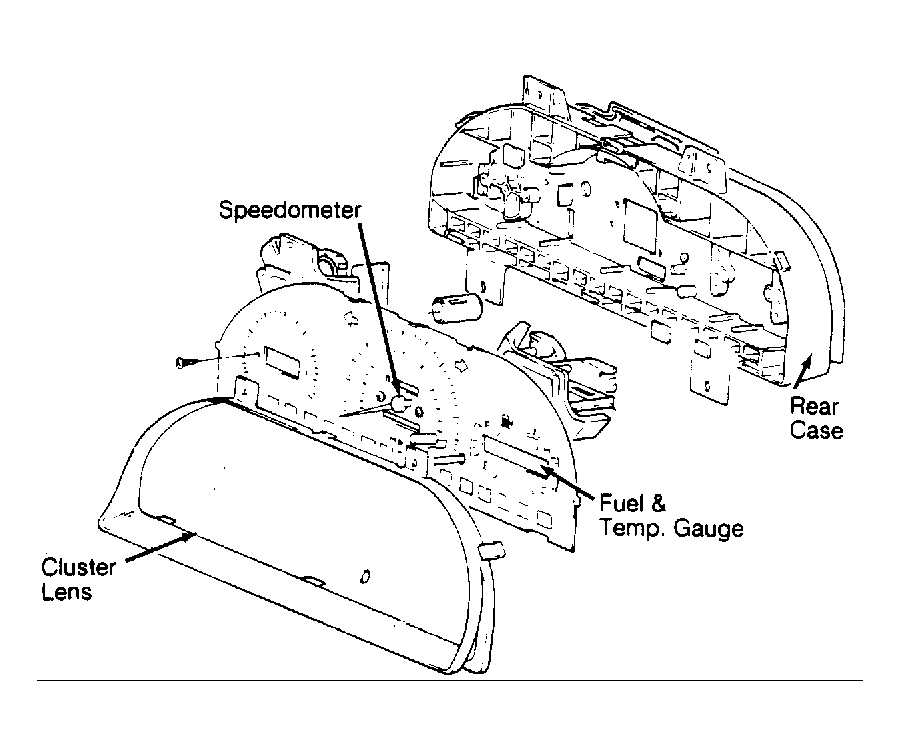

Fig 2: Exploded View of Instrument Cluster (Excel)
G91B00053Courtesy of HYUNDAI MOTOR CO.
