Master Cylinder: Reassembly

To reassemble, reverse disassembly procedure. Before reassembly, apply rubber grease to all parts (except boots). Ensure that return port is not blocked by piston cup when piston is at return position.

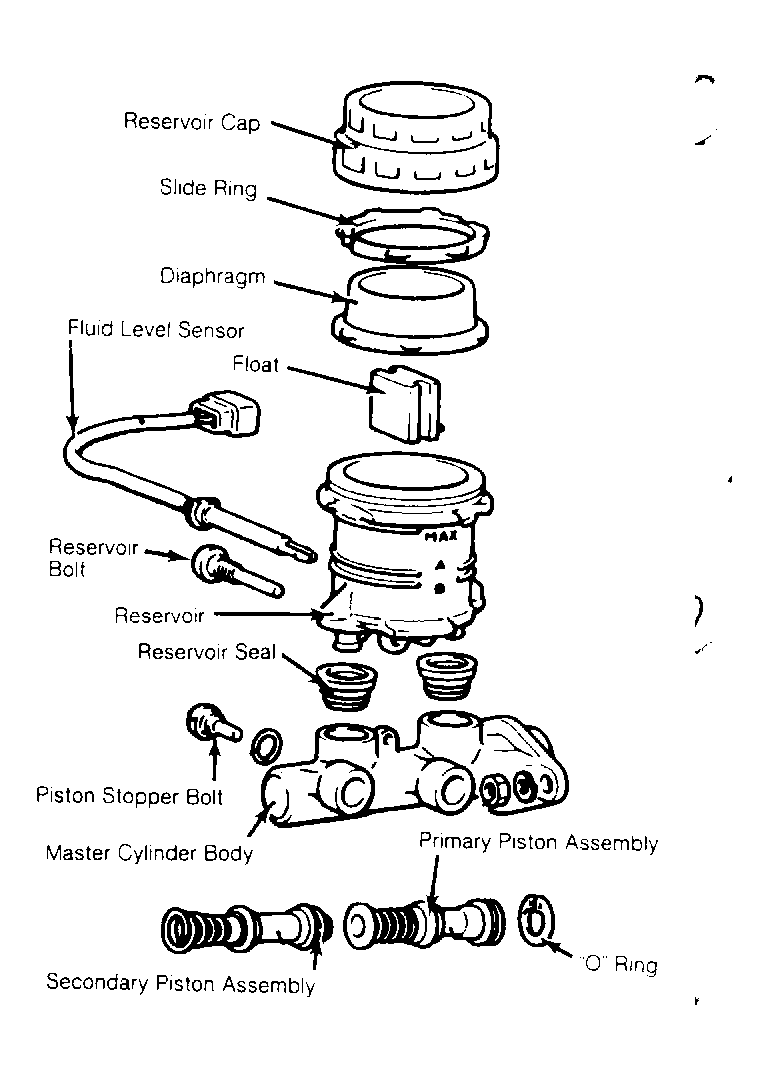

Fig 1: Disassembled View of Excel Master Cylinder

Courtesy of HYUNDAI MOTOR CO.
