Instrument Cluster

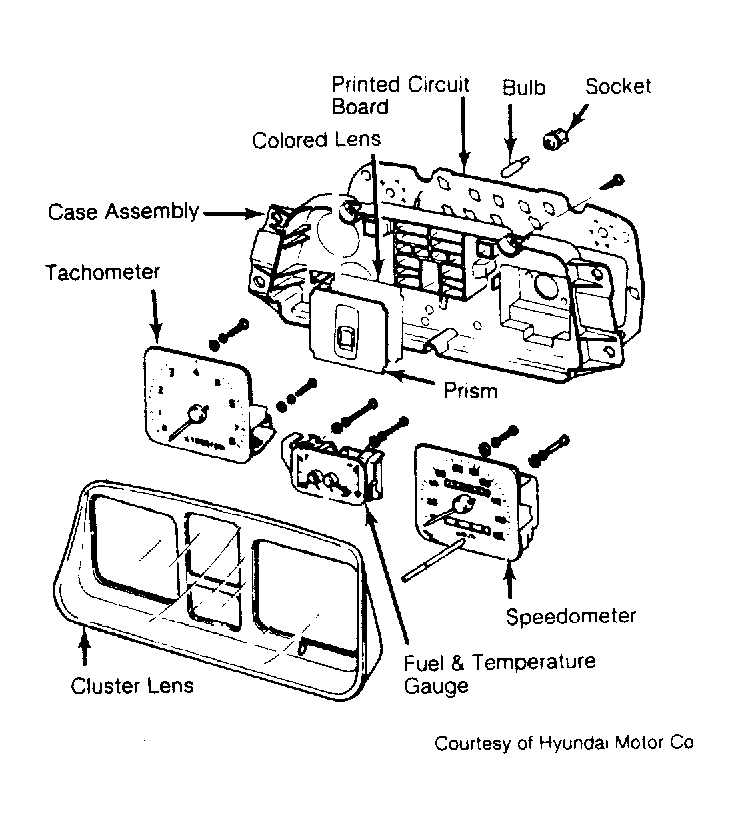

- Disconnect negative battery cable. Remove instrument panel cluster bezel screws and remove bezel. Remove switches from bezel. Remove instrument cluster attaching screws and remove instrument cluster. SeeFig 1 .
- Separate electrical connector and speedometer cable. Remove cluster lens and speedometer head assembly. Remove tachometer. Remove all bulbs, coolant and fuel gauges. To install instrument cluster, reverse removal procedure.
