Automatic Transmission

Using hot water, warm-up sending unit. Check resistance between terminal "B" and ground. Should be no resistance at 122°F (50°C) or lower and should be resistance at 122°F (50°C) or higher.

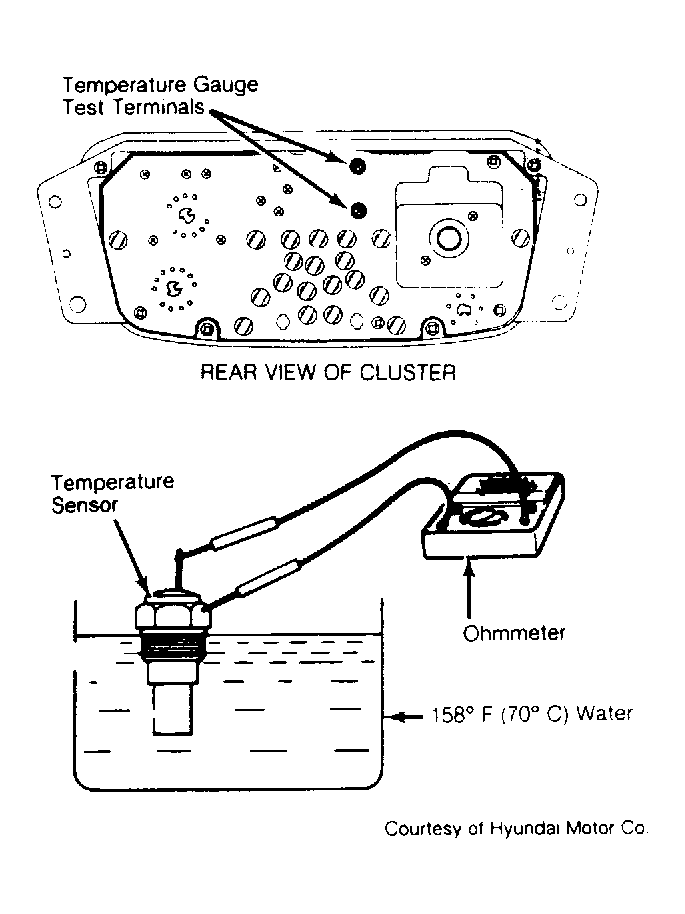

Fig 1: Testing Coolant Temperature Gauge & Sending Unit

Courtesy of HYUNDAI MOTOR CO.
