Antenna Harness Routing
Antenna Harness Routing
Harness Routing Views

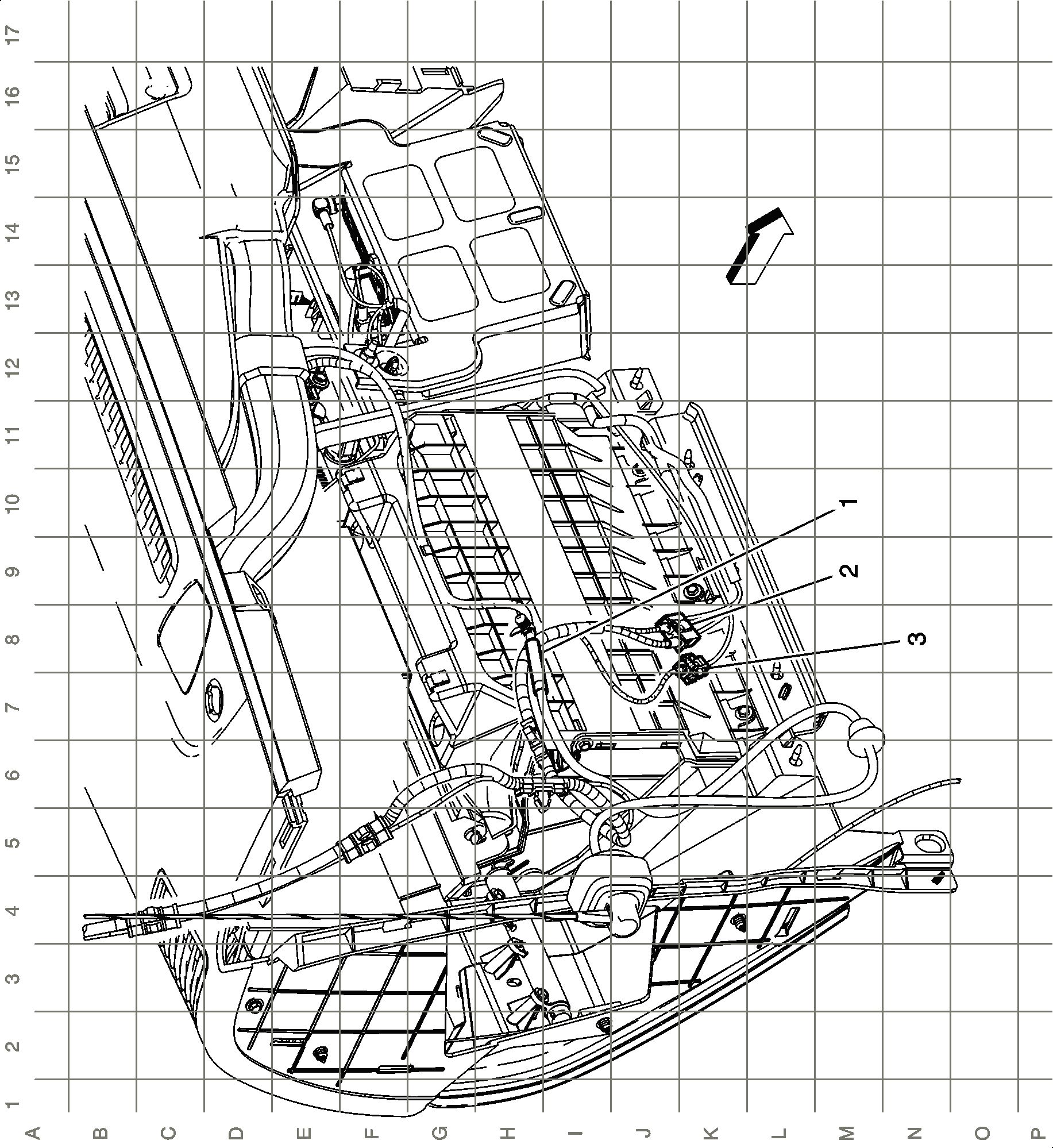

Antenna Harness Routing
1
- X220
2
- X222 (UE1)
3
- X221 (U2K)
