Automatic Transmission/Transaxle

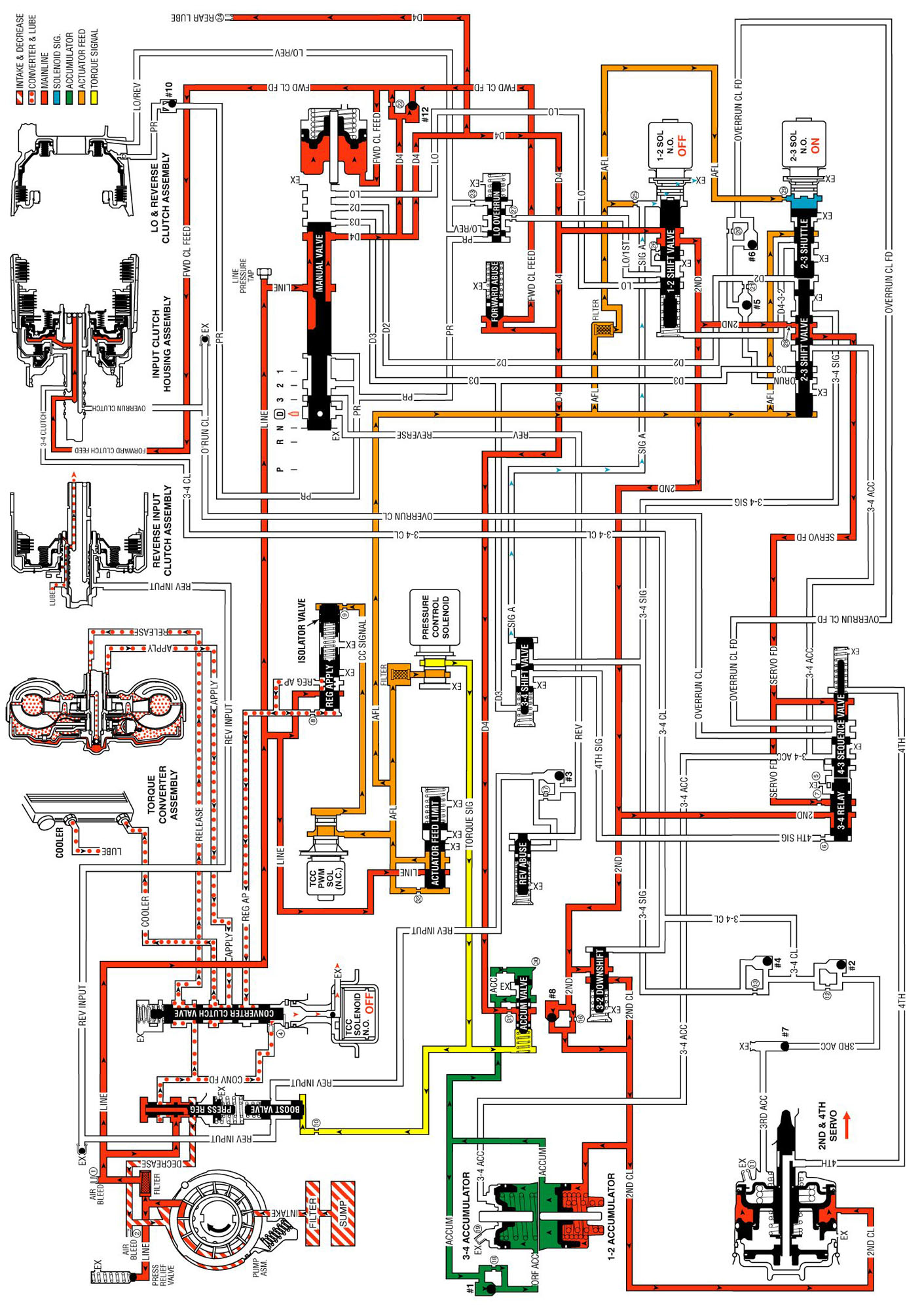

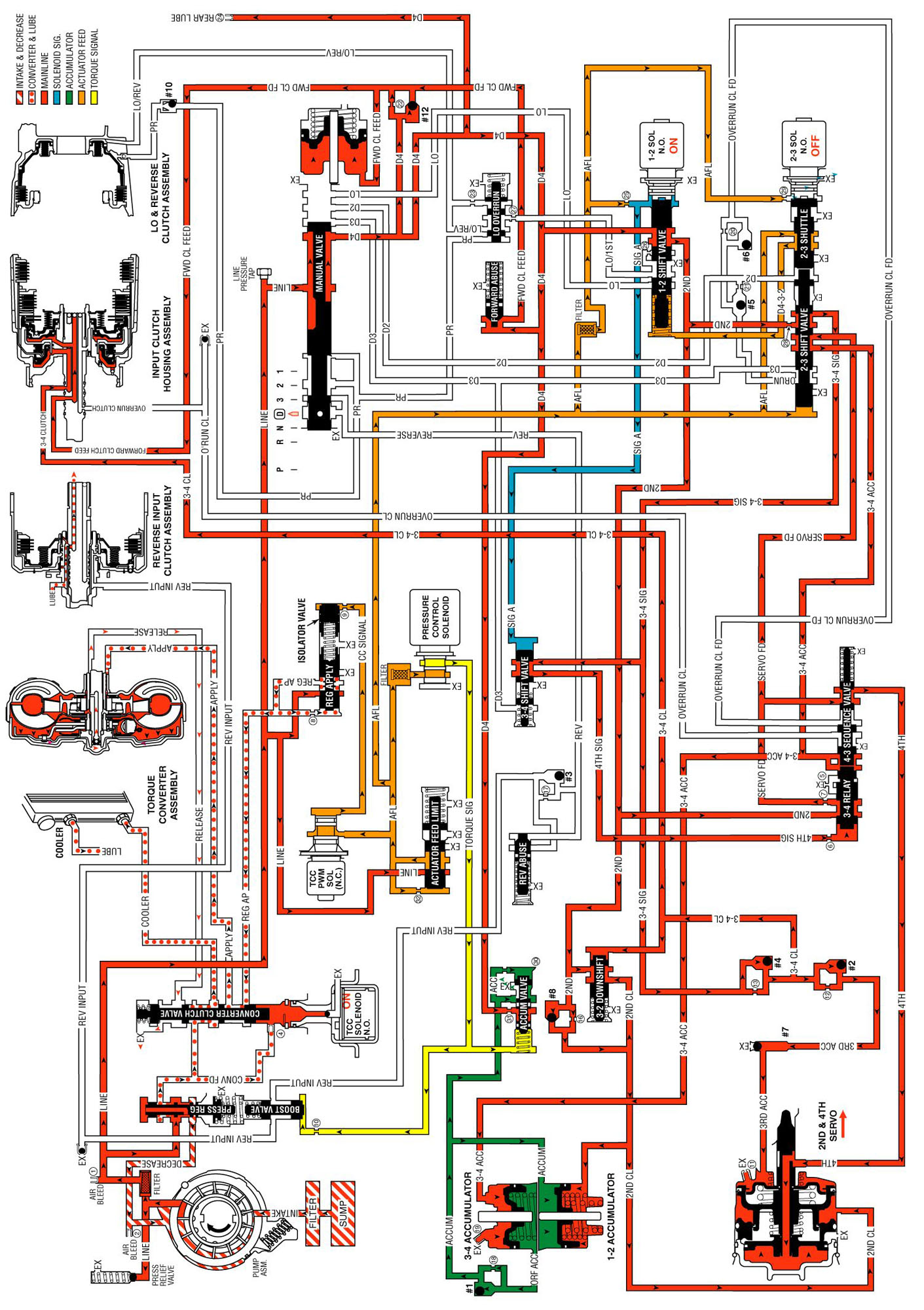

Park - Engine Running

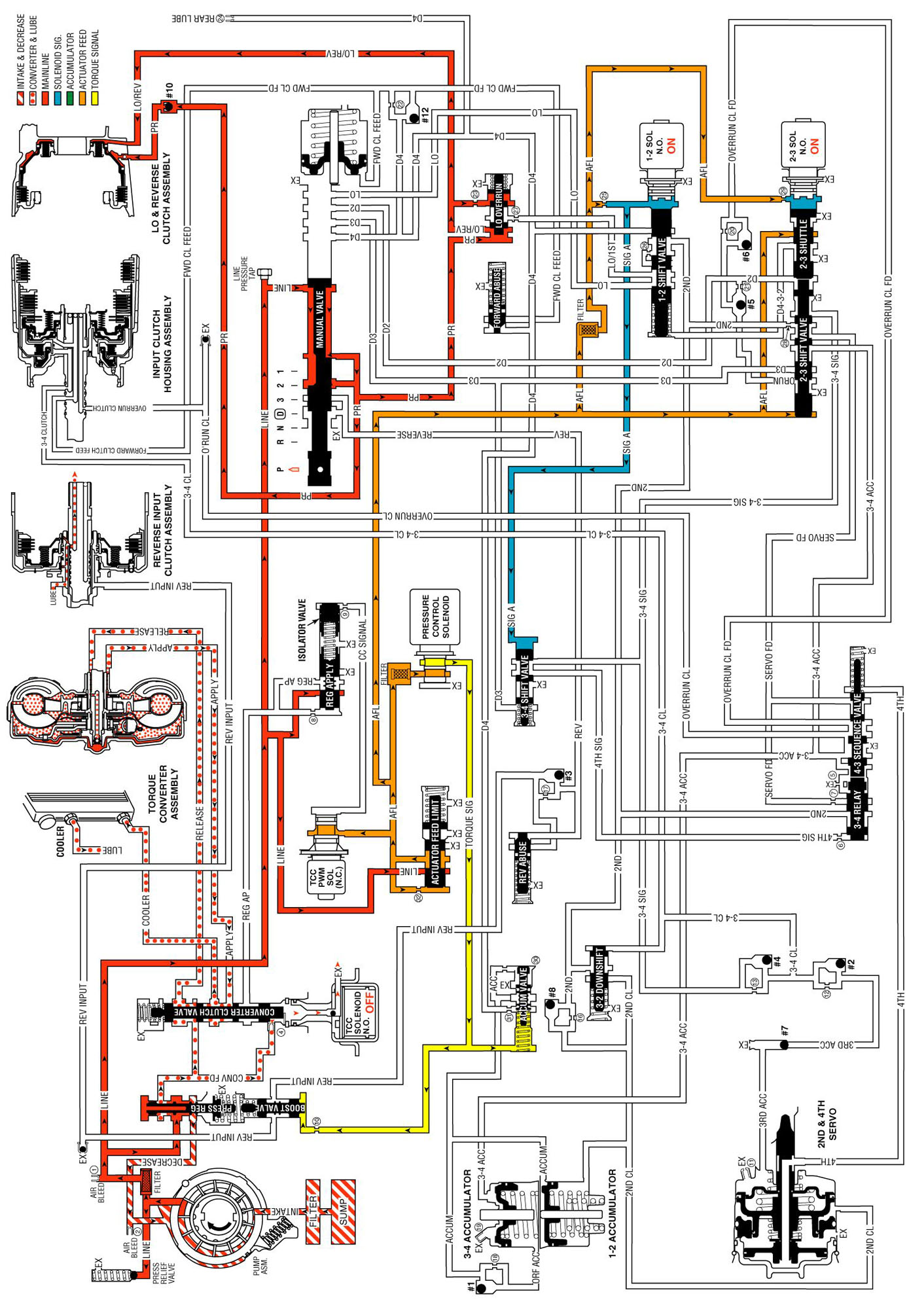

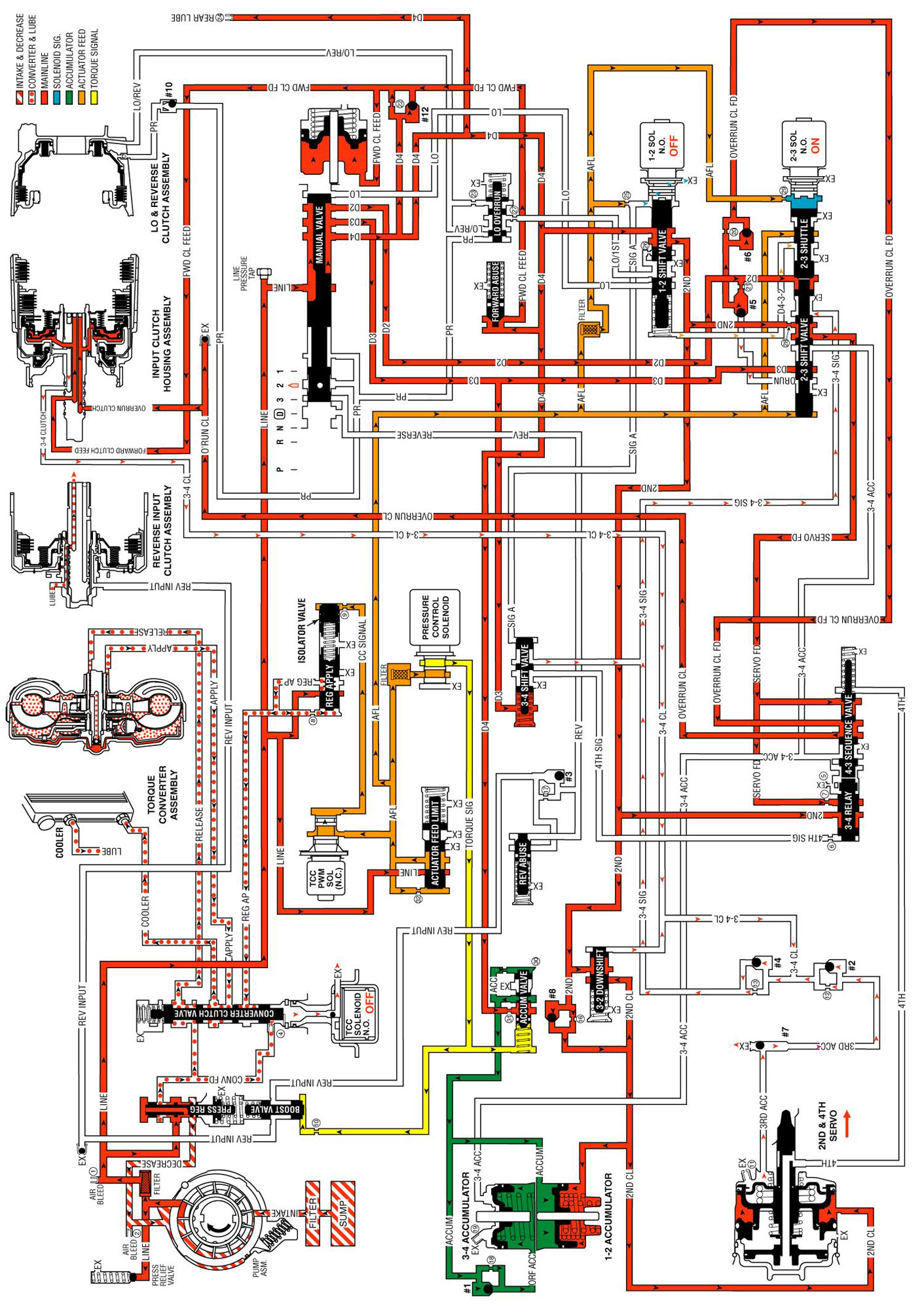

Overdrive Range, First Gear

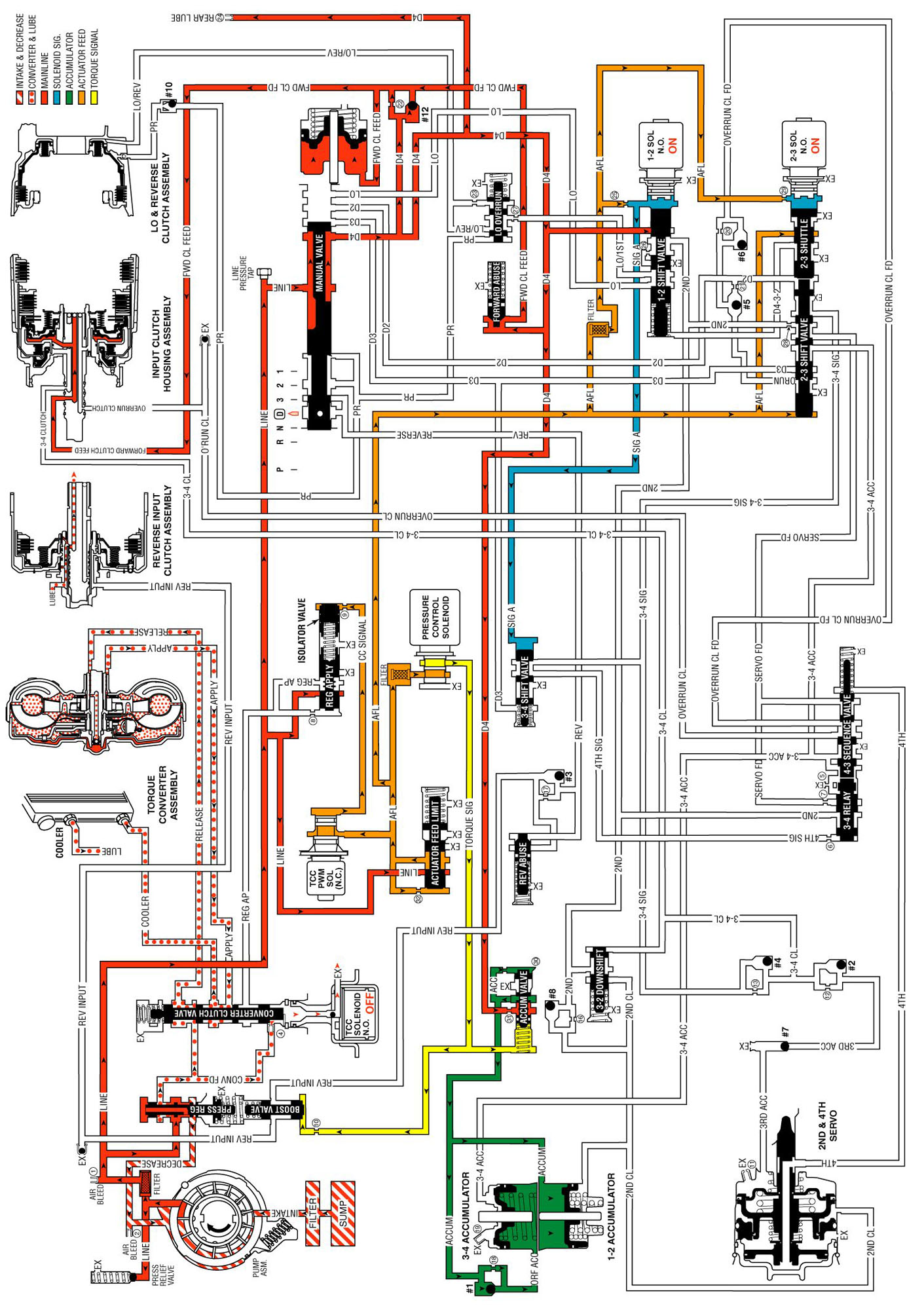

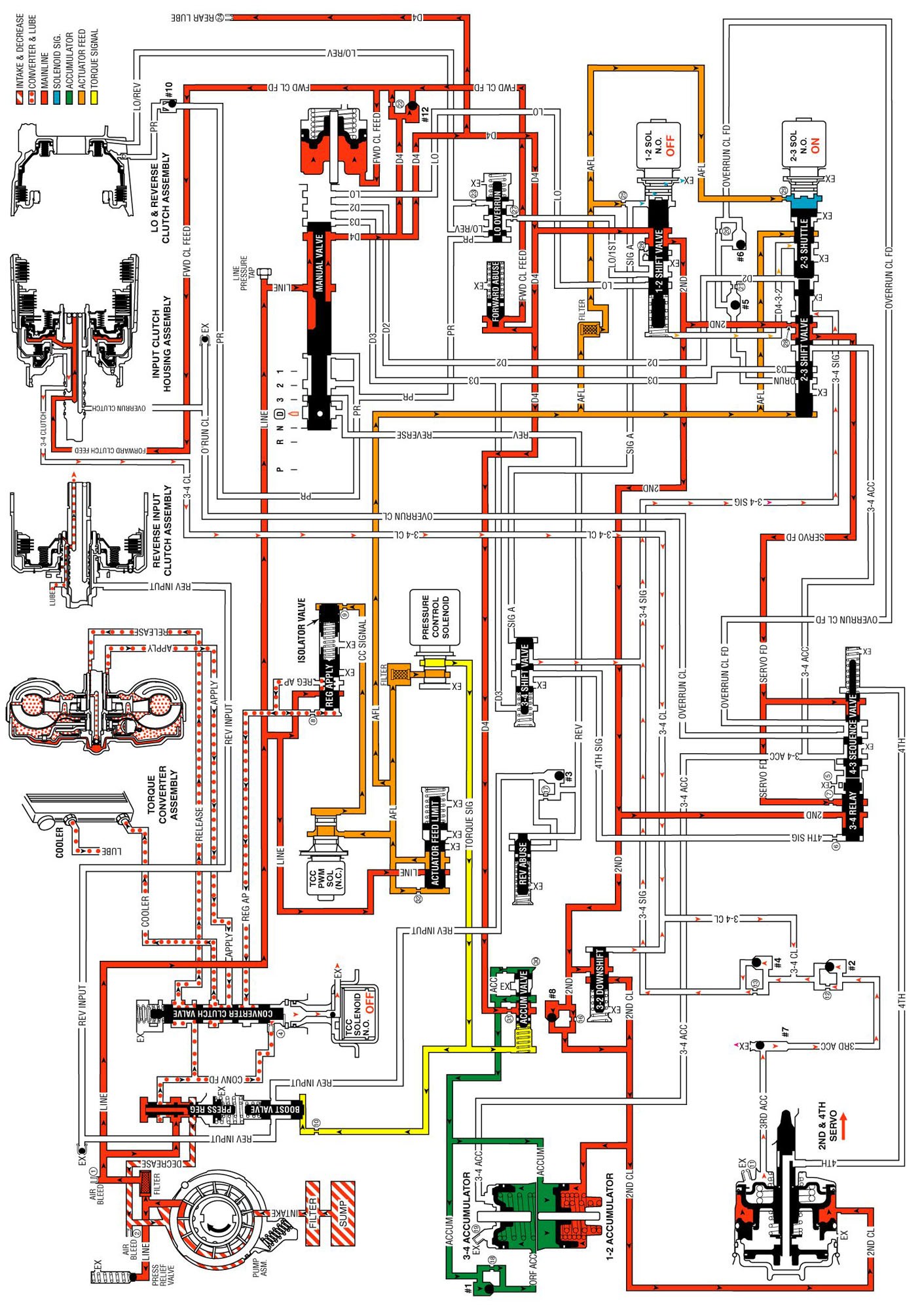

Overdrive Range, Second Gear

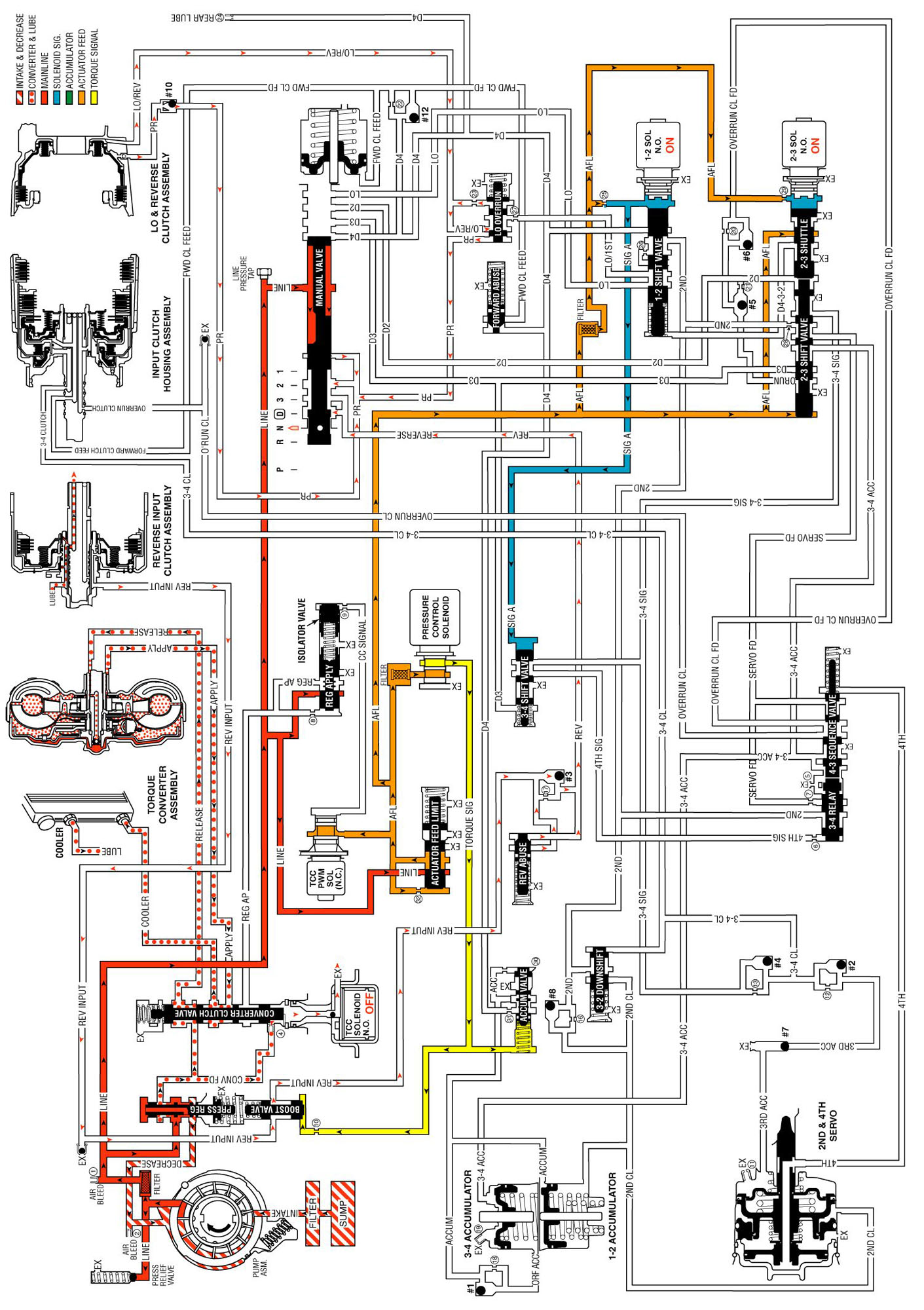

Overdrive Range, Third Gear

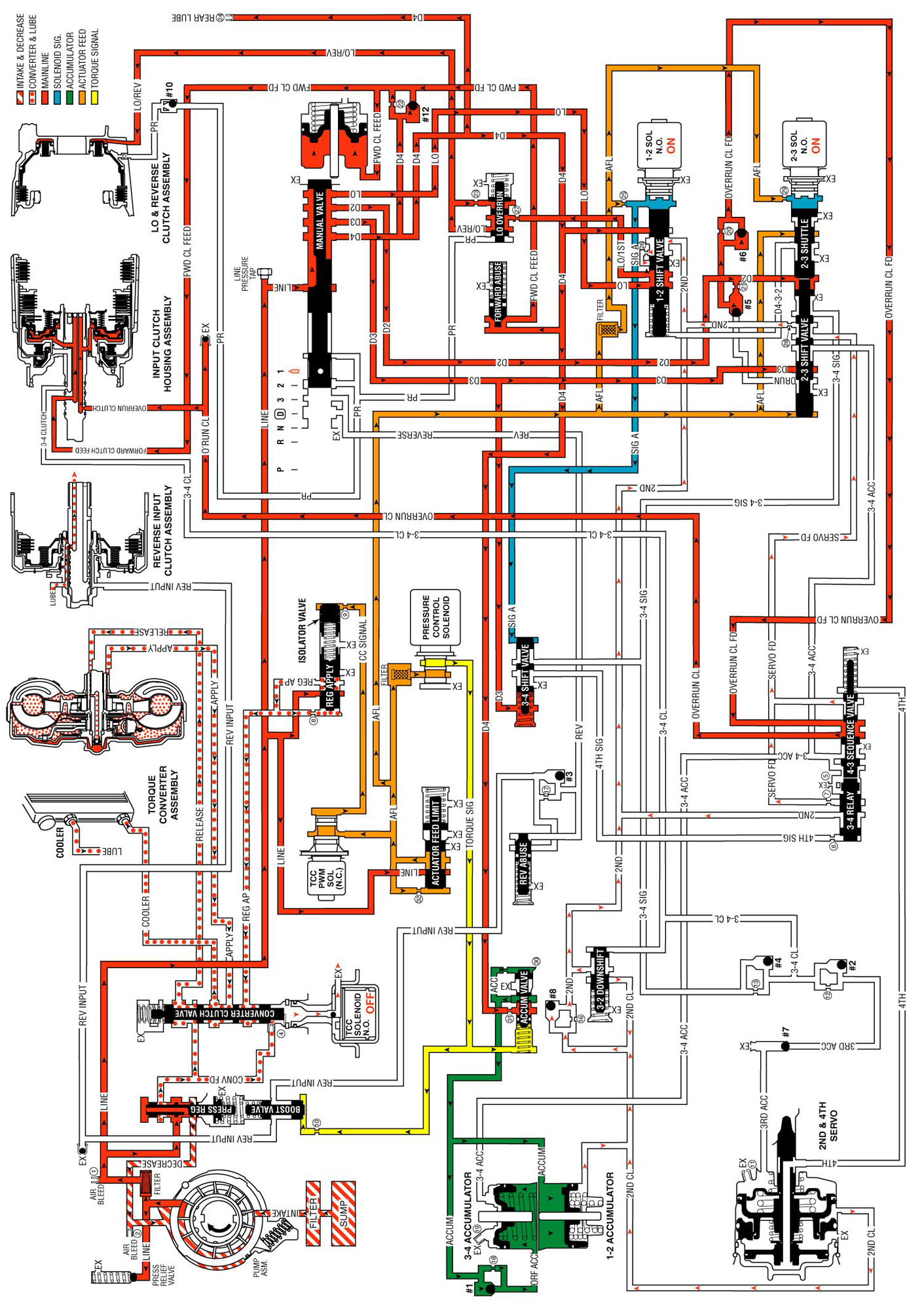

Overdrive Range, Fourth Gear - TCC Applied

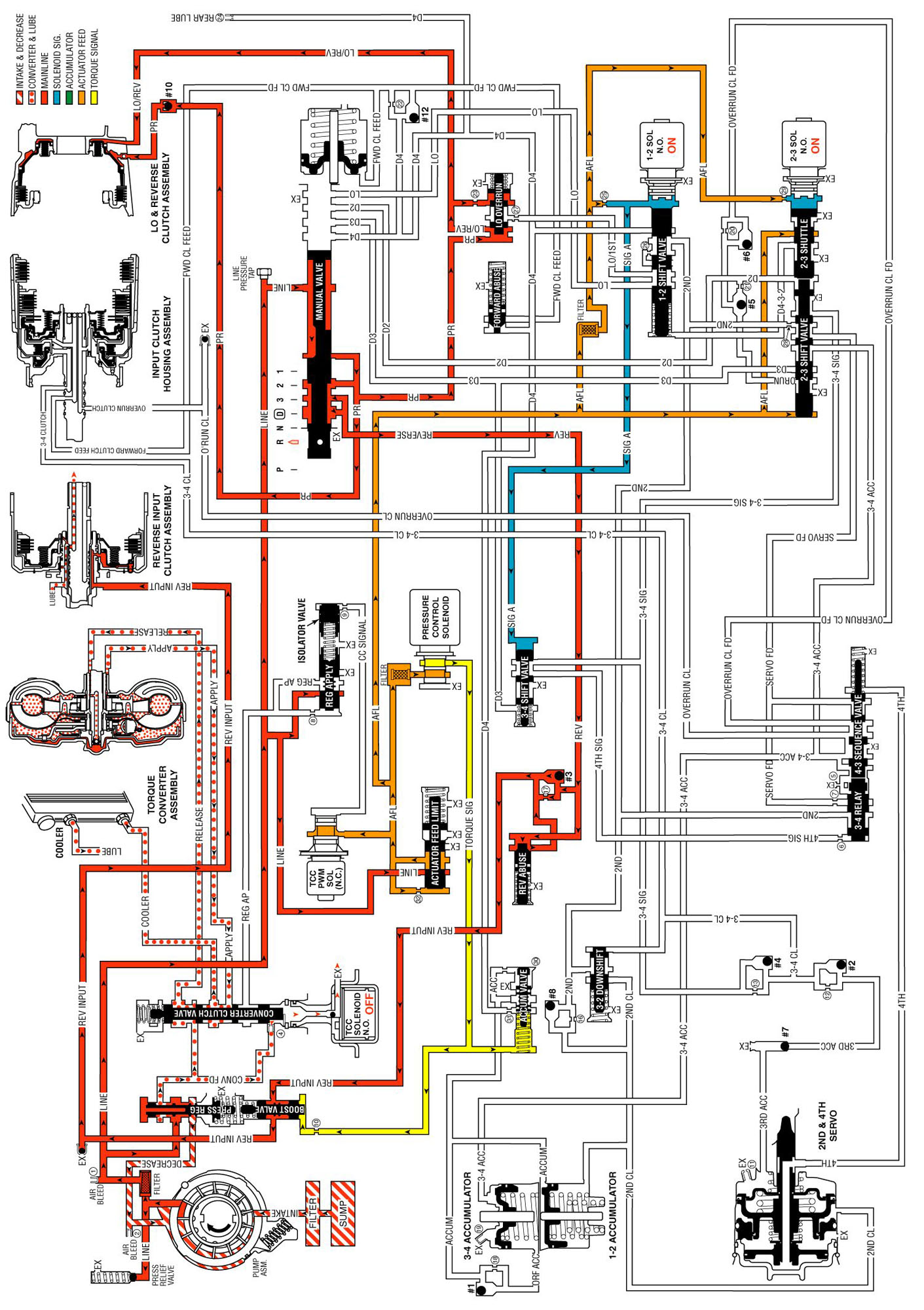

Overdrive Range, 4-3 Downshift








Overdrive Range, 3-2 Downshift








Reverse








Neutral - Engine Running








Manual Third Gear








Manual Second Gear








Manual First Gear
