Wiper and Washer Systems




Wiper/Washer Schematics

Front Wiper/Washer Switch Signals





Front Wiper Motor and Washer Control

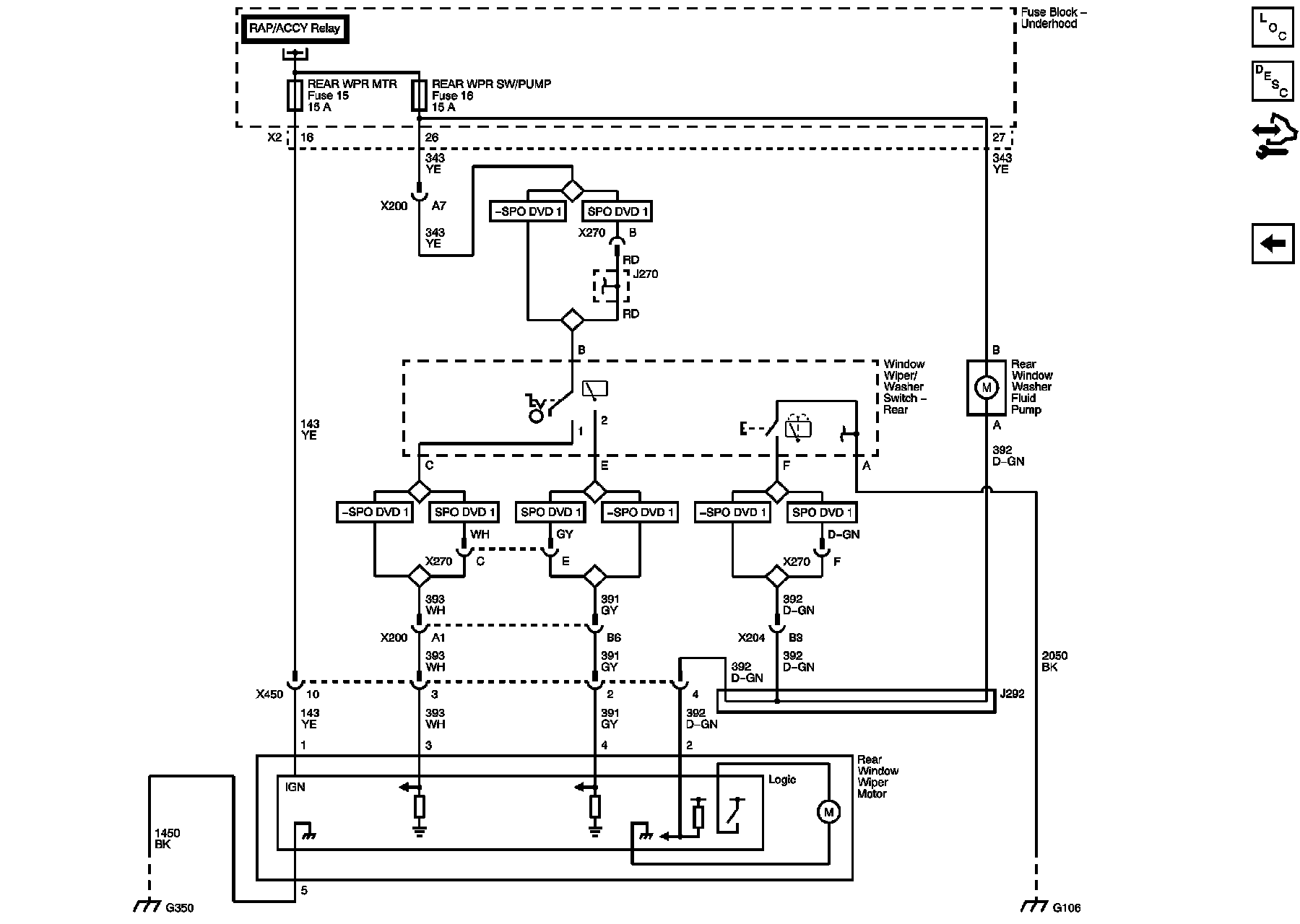

Rear Wiper (SUV)
