Home >> Hummer >> 2010 >> H3 V8-5.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transfer Case

Transfer Case




Transfer Case Control Schematics

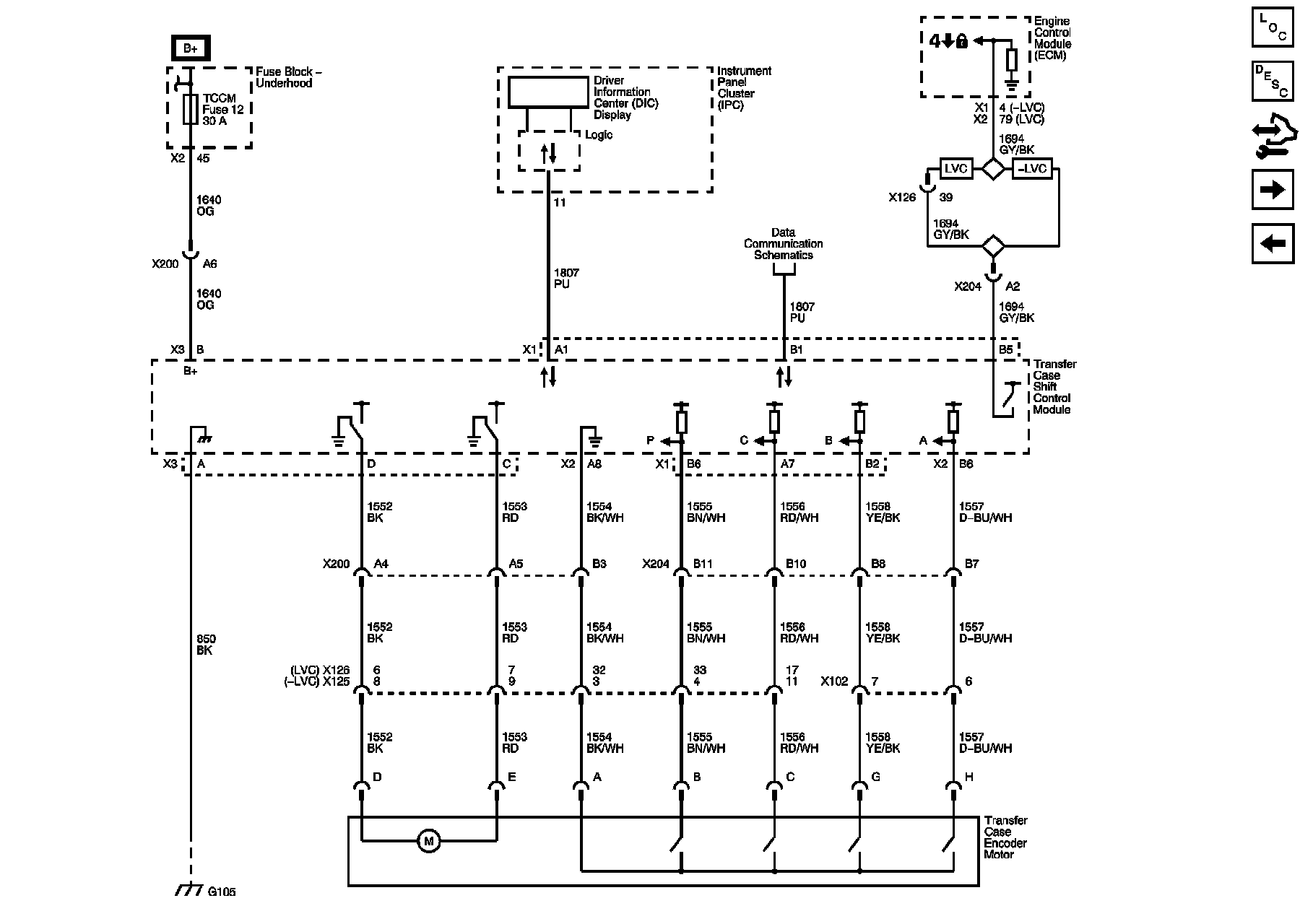

Power, Ground, Serial Data, and Front Axle Control (Left Hand Drive)

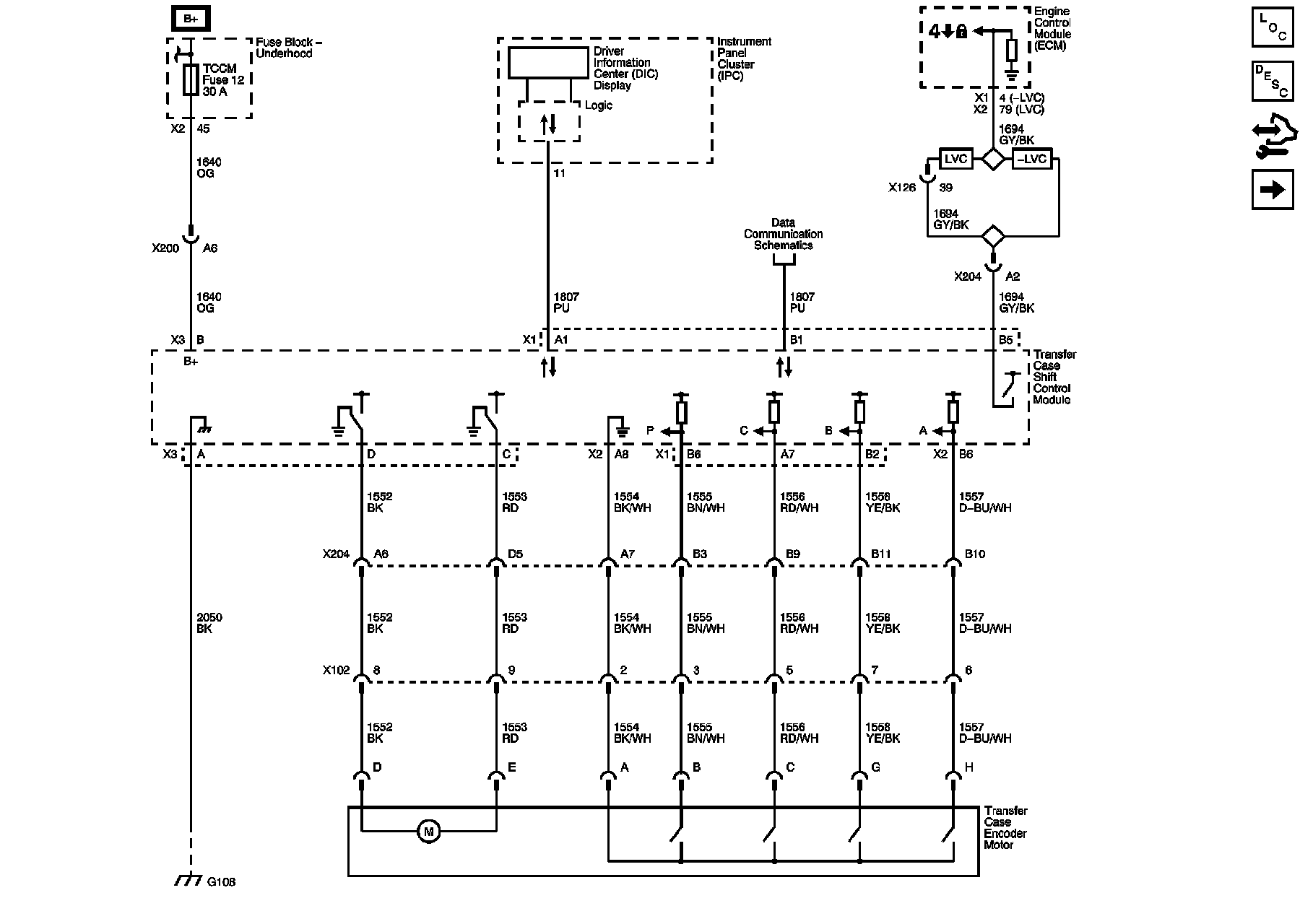

Power, Ground, Serial Data, and Front Axle Control (Right Hand Drive)





Shift Controls
